Steffes 7140 - Manual (Page 9)

Stand
Accessories
Comfort Plus Commercial Hydronic Optional Accessories
n
2.02

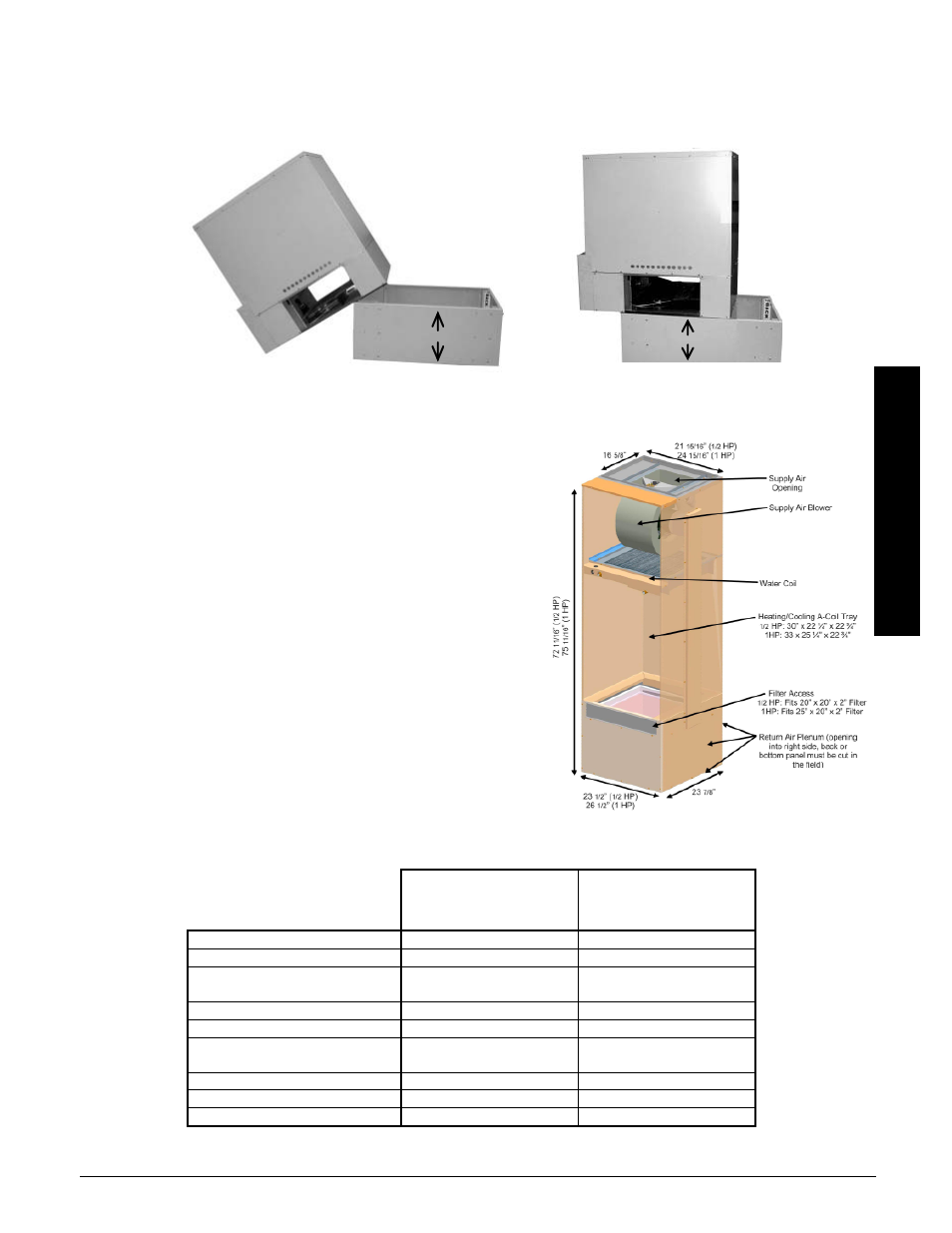

18" STAND
Some applications (such as garages) may require that the heating appliance be elevated in order to meet building codes.
The 18" stand can be used to elevate the 7140 series Comfort Plus Commercial Hydronic system. It is shipped as a
kit and requires field assembly. Support for the optional air handler is not provided.
Order Item #1301585
AIR HANDLER - VARIABLE SPEED
The Steffes Air Handler includes a return plenum, supply air
blower, water coil, and air filter.
The air handler’s variable speed blower incorporates an ECM
motor that automatically adjusts its speed to achieve the appropri-
ate CFM for the thermostat input received. Benefits include:
w Quieter operation
w Better dehumidification
w Offers greater operating efficiency by consuming 25% less
energy during normal operating mode which provides for
operating cost savings to the consumer. In continuous fan
mode, low speed energy savings can be greater than 70% in
comparison to a standard fixed motor speed.
w Interfaces with single or multi-speed air conditioner or heat
pumps. With multi-speed systems, it operates at the lower
speed most of the time. Only on extremely hot and cold
days does it operate at a higher speed. This staged heating
and cooling eliminates temperature swings, enhances
comfort and optimizes efficiency.
w Improved air filtration in continuous fan mode
w Constant air flow over a wide range of static conditions, even if filters are dirty or registers are closed.
½ HP, 60 HZ
Variable Speed ECM
Air Handler
1 HP, 60 HZ
Variable Speed ECM
Air Handler
Order Item Number 1302132 1302134
Approximate Weight 200 lbs 228 lbs
Maximum Static Pressure
(inches water column)
.75 inches H
2
0 .75 inches H
2
0
Maximum Water Coil Output 60,000 BTU/hr 90,000 BTU/hr
Maximum Outlet Temperature 120 o F 120 o F
A-Coil Tray Dimensions
(HxWxD)
30” x 22 5/16” x 22 3/4” 33” x 25 5/16”x 22 3/4”
Voltage 240/208 VAC 240/208 VAC
Wattage 560W 1,050W
CFM ratings 1000, 1200, 1400, 1600 1200, 1400, 1600, 2000
w ½ HP variable speed accommodates most 1.5 to 4 ton heating/cooling systems
w 1 HP variable speed accommodates most 3 to 5 ton heating/cooling systems
Stand
