PLACEMENT AND CLEARANCE REQUIREMENTS
The physical dimensions (Figure 2) of the Comfort Plus Com-
mercial Hydronic system along with the clearances required
(Figure 3) MUST be taken into consideration when choosing its
location within a structure. The best installation location for this
system is in a space requiring heat, so some amount of the
heating requirements can be satisfied through static dissipation
from the warm outer panels of the system. Standby heat dissipa-
tion of up to 2.5kW can be experienced in normal operation.
The minimum area required for the installation is 100 square feet.
This area must remain free of debris and room air should be
maintained at less than 85° Fahrenheit. If the system is being
installed in an area with less than 400 square feet, ventilation
MUST be provided. If less than 100 square feet, thermostati-
cally controlled ventilation MUST be provided.
MINIMUM CLEARANCE REQUIREMENTS
w Back and Right Side = 3 inches (from combustible material)
w Bottom = 1 inch clearance
w Top = 6 inches (from combustible material)
w Front = 36 inches (for ease in servicing)
w Left Side = 36 inches (for ease in servicing)

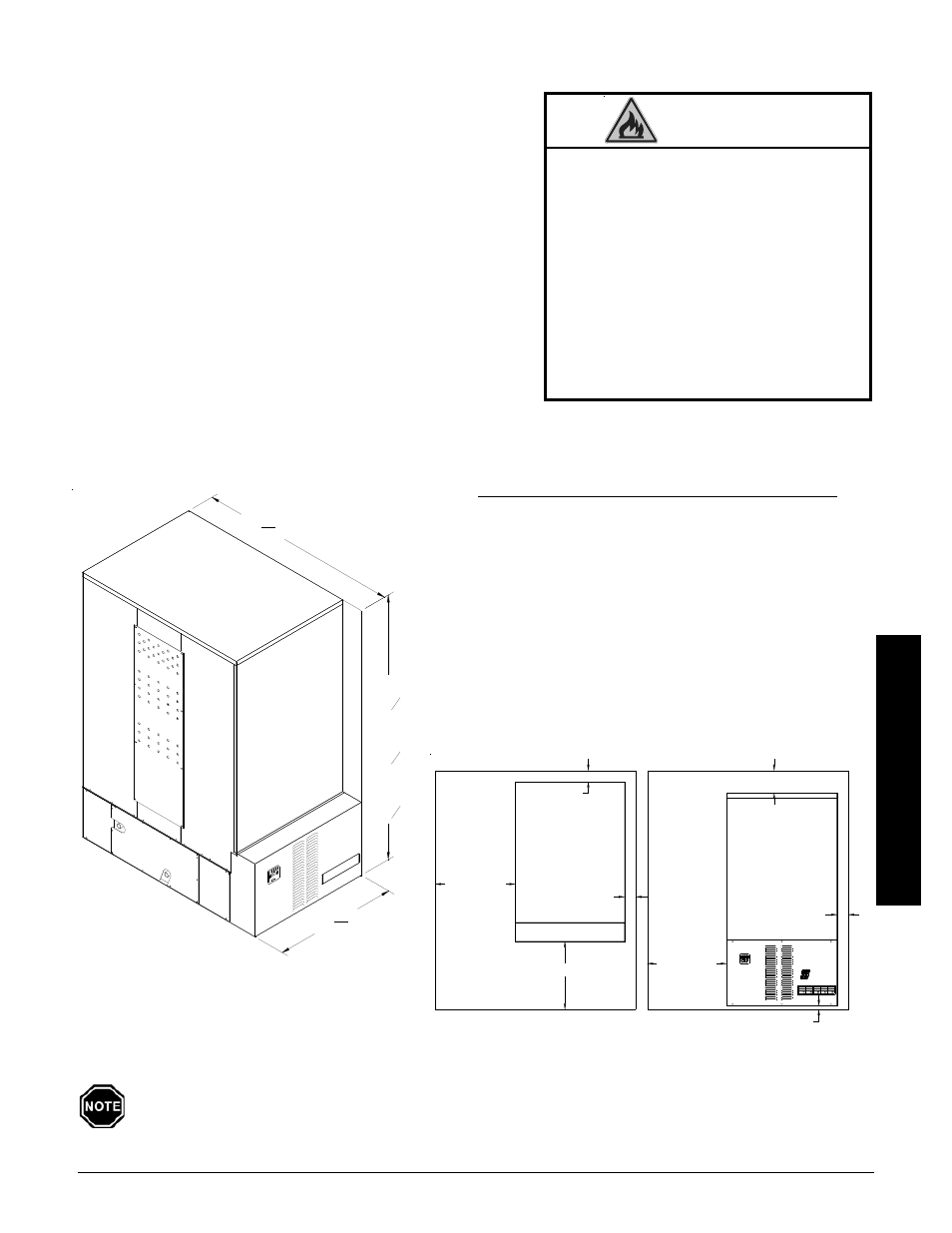

MODEL 7100 REQUIRED CLEARANCES
FIGURE 3
MODEL 7100 DIMENSIONS
FIGURE 2
Installation
Minimum clearance requirements do NOT account for space needed for making electrical con-
nections. If utilizing, the Air Handler, an additional 24-27 inches is required on the right hand
side of the system.
Comfort Plus Commercial Hydronic Installation
n
3.02
WARNING
Risk of fire. Can cause injury or death.
w Violation of the clearance require-
ments or failure to provide proper
ventilation can cause improper
operation of the system. Maintain
the placement and clearance
requirements as specified and
provide ventilation as necessary.
w Moving the system after install
may result in equipment damage.
Do NOT move system from origi-
nal installed location.
1" REQUIRED
CLEARANCE
3" REQUIRED
CLEARANCE
6" REQUIRED CLEARANCE
FRONT VIEW
3" REQUIRED
CLEARANCE
36" REQUIRED CLEARANCE
3" REQUIRED
CLEARANCE
TOP VIEW
36" REQUIRED
CLEARANCE
36" REQUIRED
CLEARANCE
STEFFES M
A
M M P
TEFFES
ELECTRIC THERMAL STORAGE
S
7140
68 5
8
"
7130
57 5
8
"
7120
46 5
8
"
29
3
16
"
47
5
16
"
Front View
Ou
tlet
Inle
t
