The indication AM used here In­
cludes both MW and LW.
FM antenna
■ FM indoor antenna (included)
Install this antenna on a wall at a height and in a direction which
result in the best reception.
For best reception sound quality:
An FM outdoor antenna is recommended.
Notes:
•The tack used to fix the internal antenna wire should not come
into contact with №e bare wire.
•Disconnect the antenna if an FM outdoor antenna is installed.

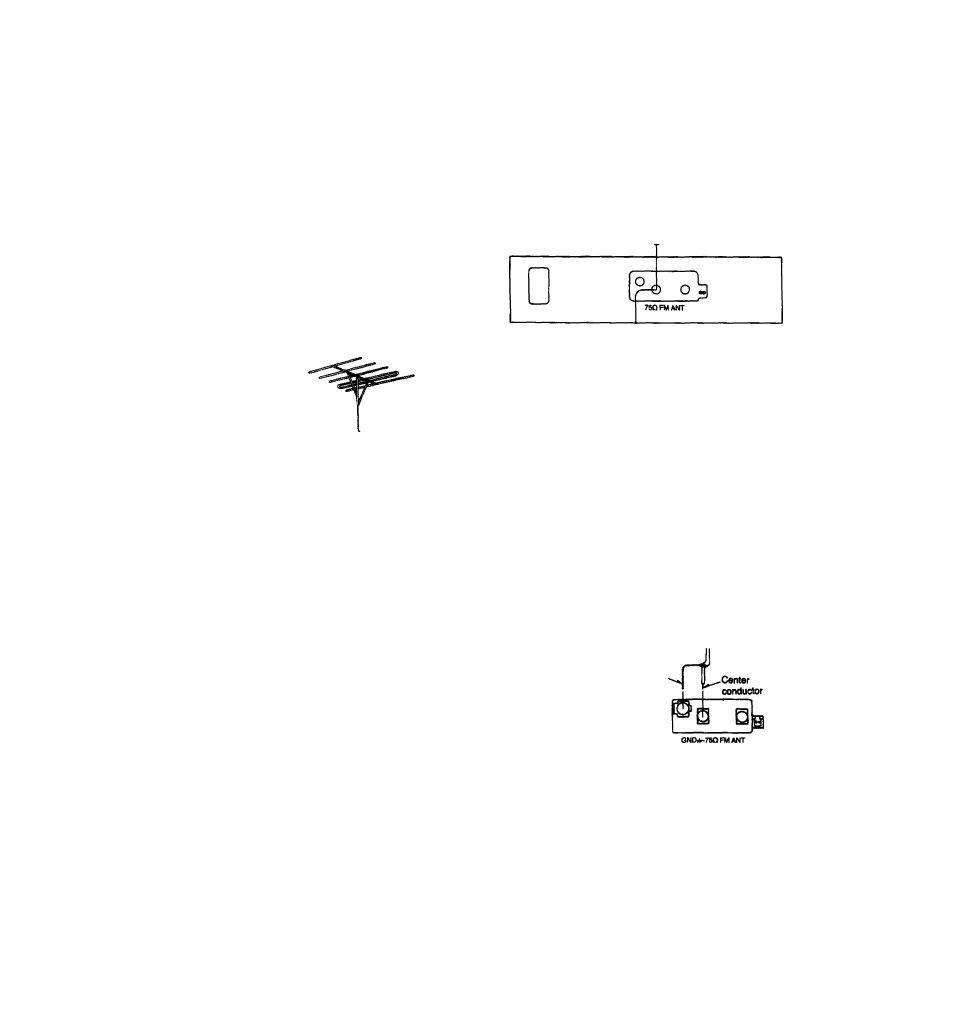

FM outdoor antenna
■Fix with
tack or tape
^ Remove insulation
I and twist the
conductor.
Tuner
■ FM outdoor antenna (not included)
If the FM indoor antenna does not provide satisfactory reception,
an outdoor antenna should be used.
The outdoor antenna may be required in a mountainous region, or
if this unit is iocated inside a reinforced-concrete building, etc.
How to connect a TS^hm coaxial cable
O Remove a piece of the
outer vinyl sheath from
the end.
d) Bundle the shield braid,
and remove a piece of
the inner vinyl sheath
covering the core wire.
@ Connect the core wire
and the shield braid.
20mm(2%2")
10mm(%'l
Shield braid
