Connections
(continued)
Speaker cables
other types of speaker cannot be connected to this unit.
Match the four wires from the left and right speaker cables with the
same colored levers of the speaker terminales, then insert the
wires into the respective terminals.
(g) Push down on the lever, insert the bare ends of the wires, and
push up the lever. (Refer to the right)
Note;
•Make sure the bare ends of the wires are not unraveled. (If they
are, twist them tight again.)
•Take care not to short the wires. (The main unit could be
damaged if they are shorted.)
Notice for speaker connectioris:

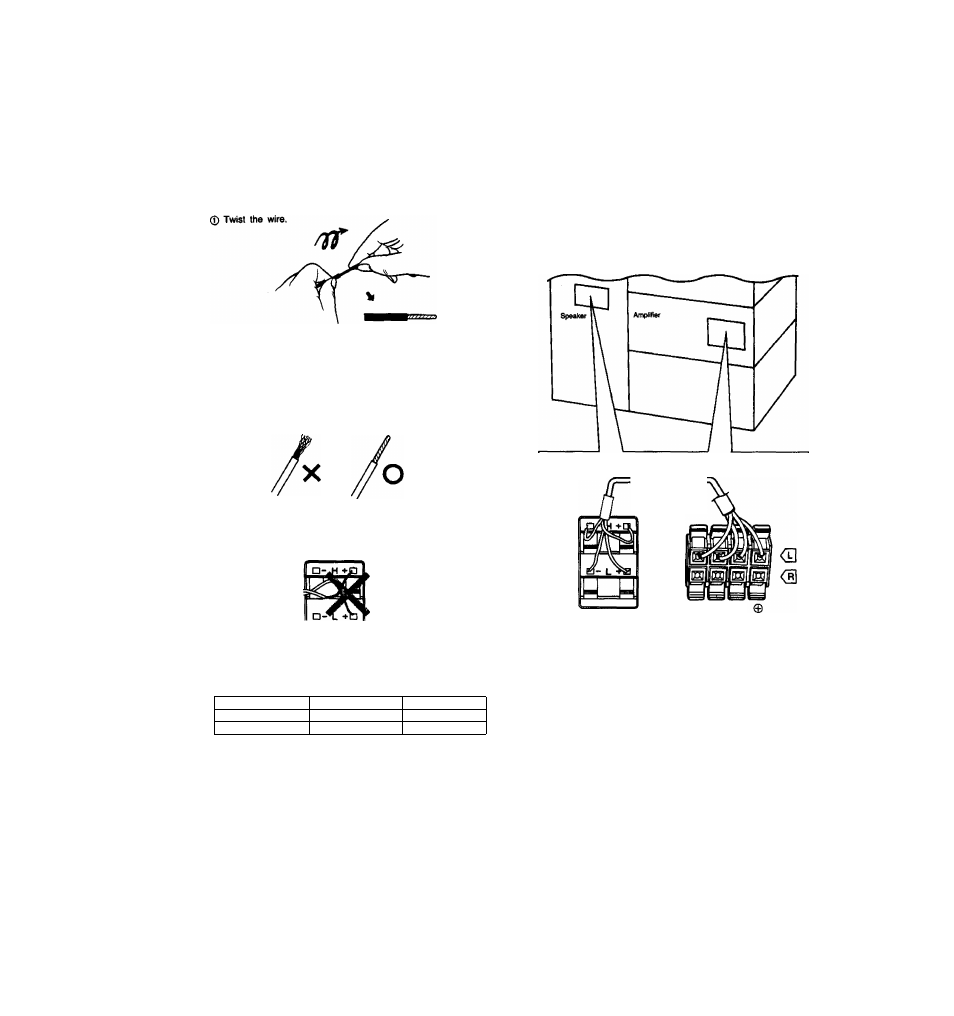

Connect each color coded wire of the speaker cat^e to the
corresponding color coded terminal according to the following
chart.
Polarity - +
High tone Blue Gray
Low tone Black Red
First connect the cables to the speakers, then to the
amplifier.
Speaker cable
(included)
(Blue)
(Black)
(Gray)
(Red)
Speaker
® 0 e
Amplifier
