Remote-Control Operation
2 3 ■* 5
ooooo
6 7 8 0 0
o p p p y
S5;
D D D o o
«MAT wo»w awca
□ a a o
S ' oecKV!
a
a o o g □
t a
For detailed information concerning operation steps, etc., please
refer to the appropriate page lor each unit and №e respective
operation instructions. For this system, you can iisten to tapes or
compact discs, etc., by operating the remote control transmitter
without using the input seiectors.

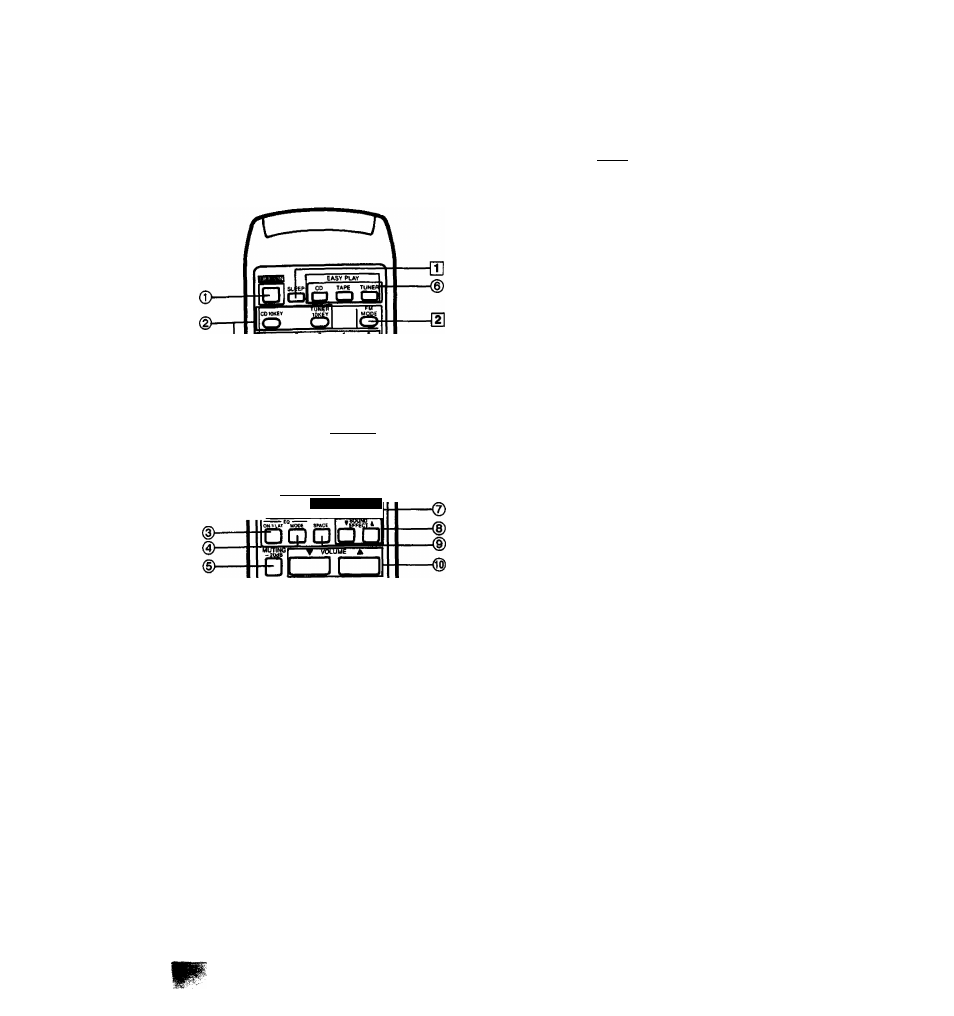

Common operation controls
© Power switch (I off / on [|
Press this button to switch the unit ON or to the standby
condition. Note that there is no need to press this biftton if the
unit’s power is ON. (If it is pressed, the unit will be switched to
the standby n>ode.)
( 2 ) Function seiector buttons
(CD 10 KEY, TUNER 10 KEY, DAT, PHONO)
These buttons are used to change the functions of this remote
control transmitter as well as the main unit.
(D Equailzation function button (EQ ON/FLAT)
Press to select the equalizer effect on or flat.
® Equaiization mode-seiect button (EQ MODE)
(D Muting button (MUTING -20 dB)
This button is used to temporarily attenuate ("mute") the
volume level. After pressing the button the volume level will be
reduced by 20 dB.
® Easy piay buttons (EASY PLAY)
(See page 23.)
® Super bass button (SUPER BASS)
(g) Sound effect ievei buttons
(▼ SOUND EFFECT A)
(g) Ambience enhancement button (SPACE)
(Q) Voiume ievei controi buttons (T VOLUME A)
For adjustment of the volume level.
A: To increase the volume level.
▼: To decrease the volume level.
Tuner controls
[T] steep button (SLEEP)
Press this button to use the sleep timer function.
[2] FM mode button (FM MODE)
This button is used to change bad stereo reception to
improved monaural sound when listening to an FM broadcast
station.
Preset-tuning buttons (1-0)
These buttons are used to tune to broadcast stations that
have been preset in the unit's memory.
When these buttqns are used, be sure to first press the
TUNER 10 KEY: from the function selector buttons on the
remote control b^nsmitter.
-53-
