Connections

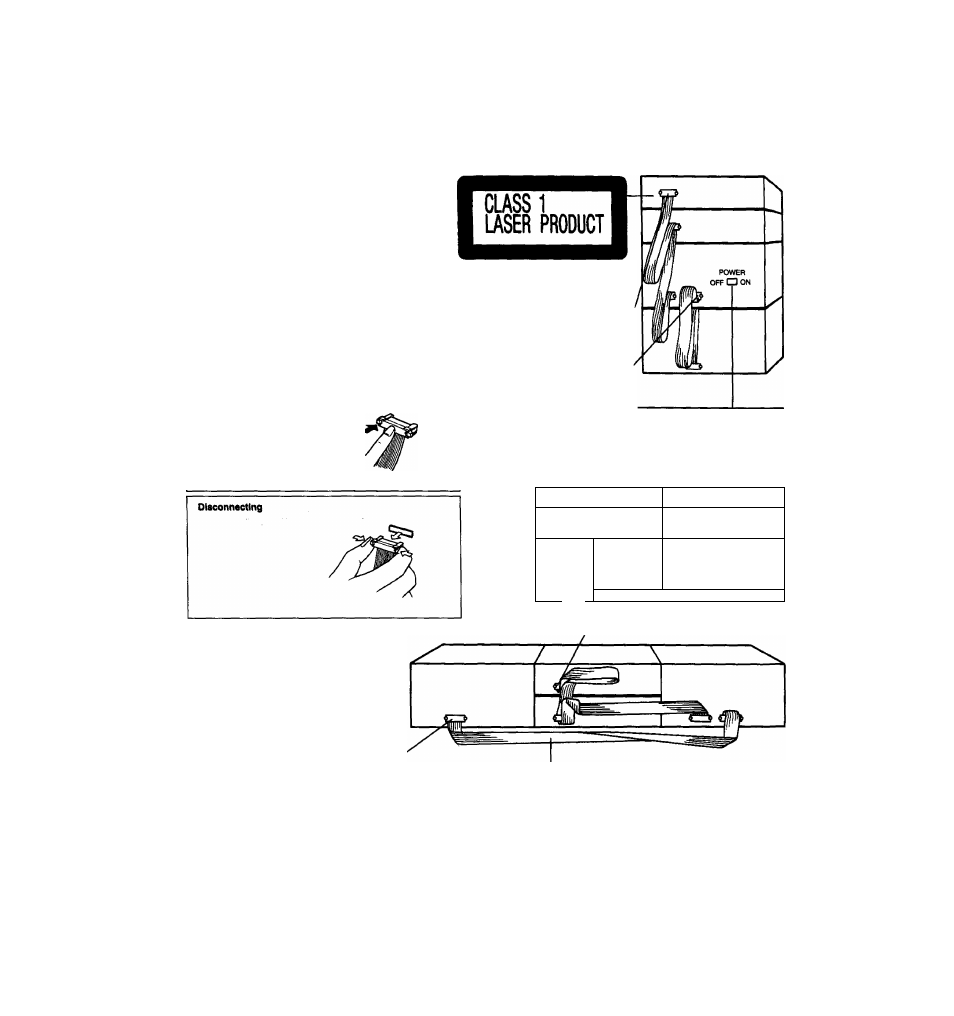

Flat cables
After connection, please fold and press the cable as flat to the back
of the unit as possible.
From the amplifier to the cassette deck
(Blue) (Blue)
From the compact disc player via the tuner to the amplifier
LUOKAN1 LASERLAITE
KLASS1 LASER APPARAI
(Black)
Connecting
Hold the connector with the
recessed part up and press
in at the center until you hear
a click.
The white line should be on
the right side.
(Black)
Black
Blue
—For Australia'
Power switch is (ocated on the rear panel.
Make sure that the power switch on the back of the
amplifier is switched ON.
Black'
—
N
I «____ ? miP
Blue
Black
Blue
When installing the back cover, put this fiat cables out of the back cover.
