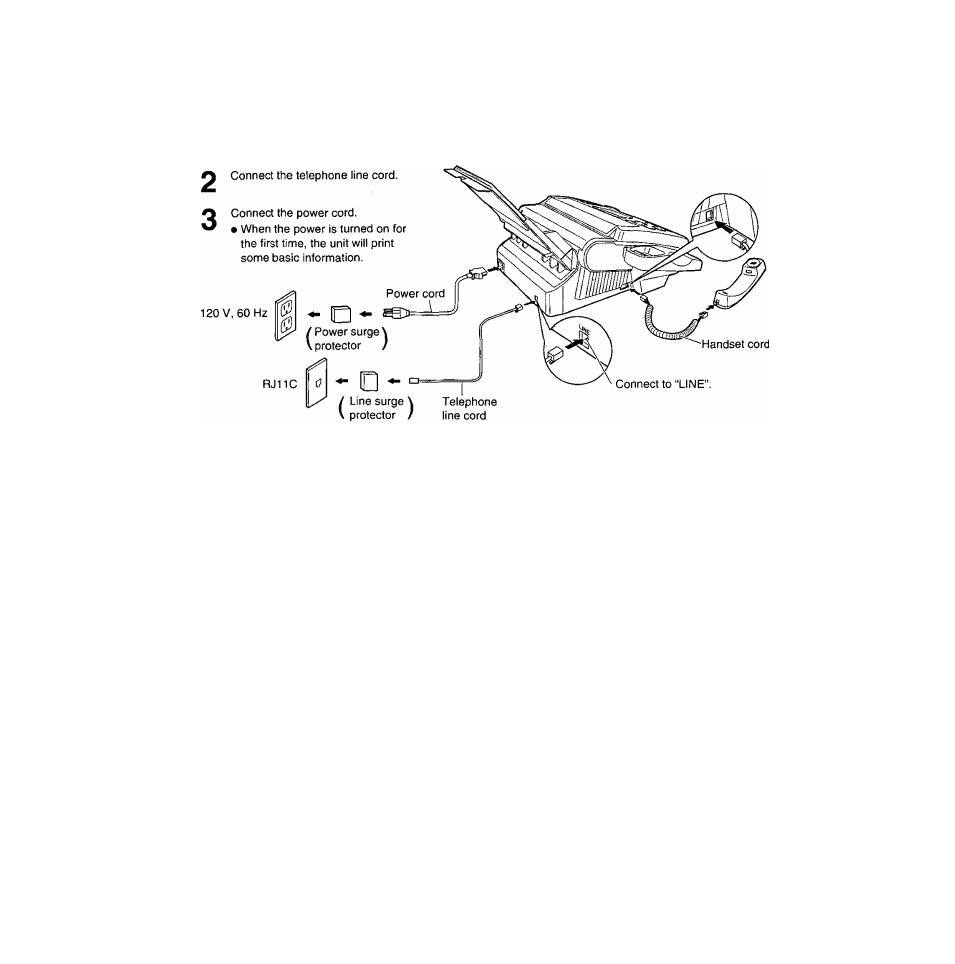

Connections -
^ Connect the handset cord.
Setup
Note:
• The warranty does not cover damage due to power line surges or lightning.
For additional equipment protection, we recommend the use of a surge protector. The following types are
available; TELESPIKE BLOK MODEL TSB (TRIPPE MFG. CO.), SPIKE BLOK MODEL SK6-0 (TRIPPE
MFG. CO.), SUPER MAX (PANAMAX) or MP1 (ITW LINX).
• When you operate this product, the power outlet should be near the product and easily accessible.
• If the following message is displayed when the unit is plugged in, the recording paper set lever will be released.
CHECK LEVER
Display:
Move the lever back (see step 3 on page 27).
Automatic dialing mode setting
• When the telephone line cord and the power cord are connected, the unit will automatically start to detect the
dialing mode.
Display:
CHECKING LINE
Wait until one of the following messages is displayed.
— If your line has touch tone service:
LINE IS TONE
— If your line has rotary pulse dial service:
LINE IS PULSE
• If the power cord is disconnected or a power failure occurs, the unit will detect the dialing mode again when
power is restored.
• You can change the dialing mode setting manually. See page 37.
• If you connect the power cord before connecting the telephone line cord, the following messages will be
shown alternately.
INSERT TEL LINE
NO TEL LINE
Connect the telephone line cord.
28
