Jams
Recording paper jam
If the unit does not eject any recording paper during reception or copying, the recording paper has jammed.
Remove the jammed paper by following the display message on this page and page 116.
When paper has jammed under the film cartridge
Xhci Hienla\/ mnll ehrtm/ thci
moeeano
The display will show the following message.
Display:
PAPER JAMMED
Remove the jammed paper as follows.
1
2
3
6
7

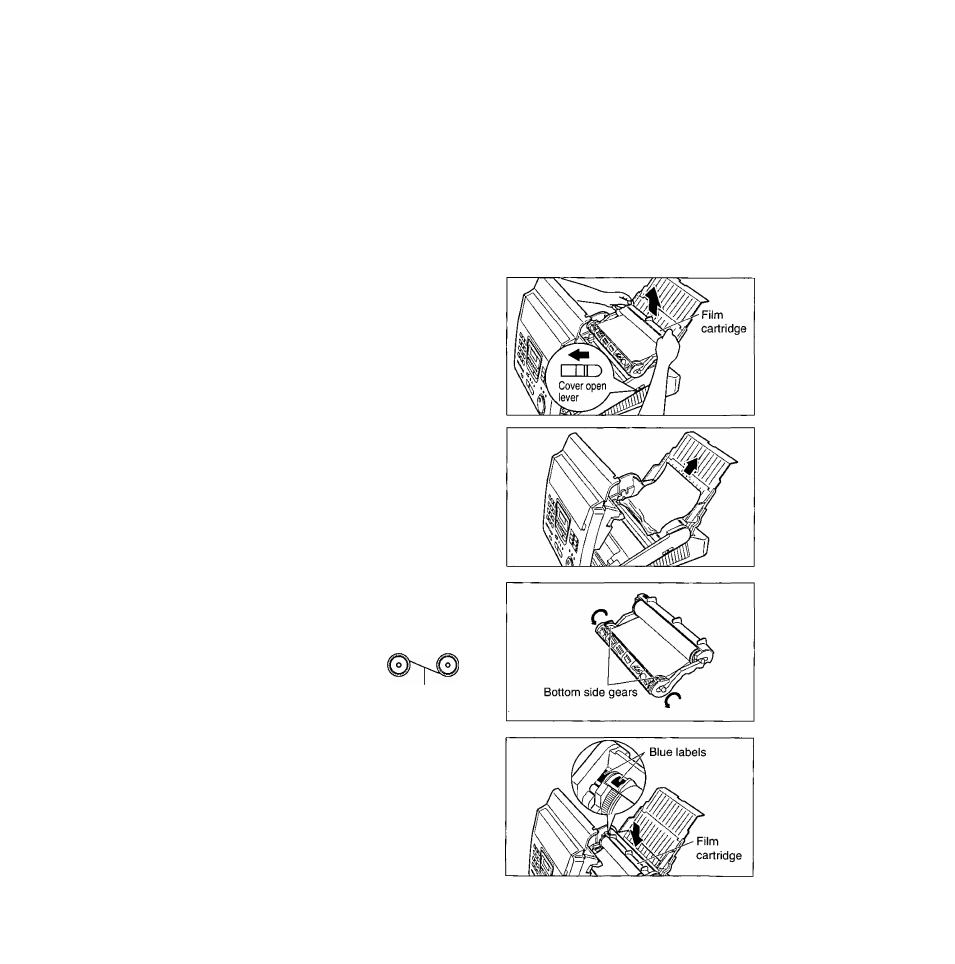

Slide the cover open lever forward.
The cover is under tension to improve print
quality. Pull up hard enough to open.
Remove the film cartridge.
Remove the jammed recording paper.
If the film is slack, tighten it by winding the
bottom side gears.
Incorrect
Correct
Tight
Replace the film cartridge by matching the blue
label side of the cartridge with the one on the unit.
Close the cover securely by pushing down on both
ends.
2
.
■o
For assistance, call 1 -800-435-7329.
