KX-P1150

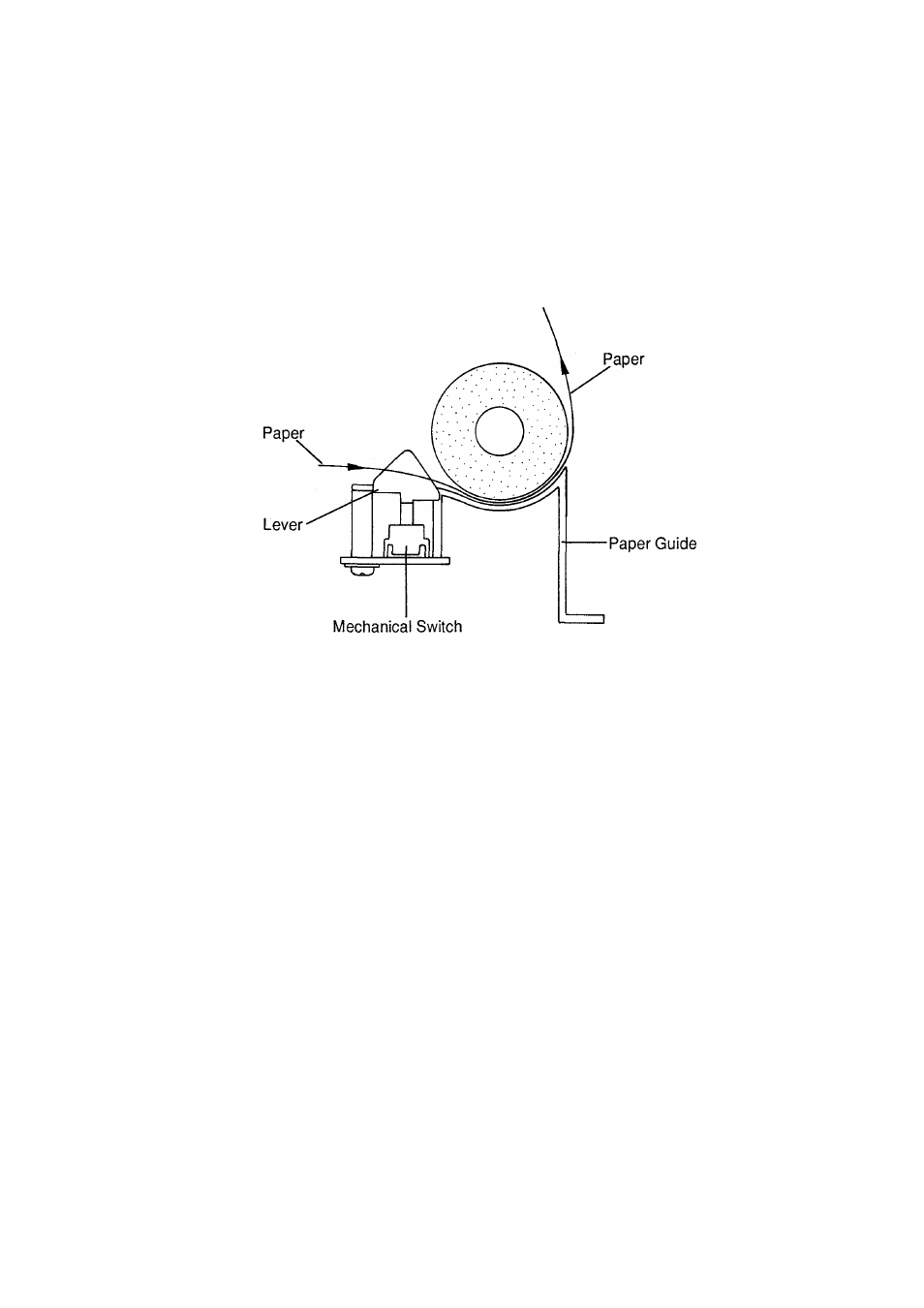

6.5 End of Paper Detector

The printer uses a mechanical switch for detecting paper out with continuous or single sheet paper. When

paper is loaded In the printer, the lever is down, and the condition of the mechanical switch is on. This sends a
signal to the CPU indicating paper loaded in the printer. When paper is out, the lever is up, and the condition of

the mechanical switch is off. This removes the signai from the CPU indicating no paper is in the printer.
