Description of Each Section

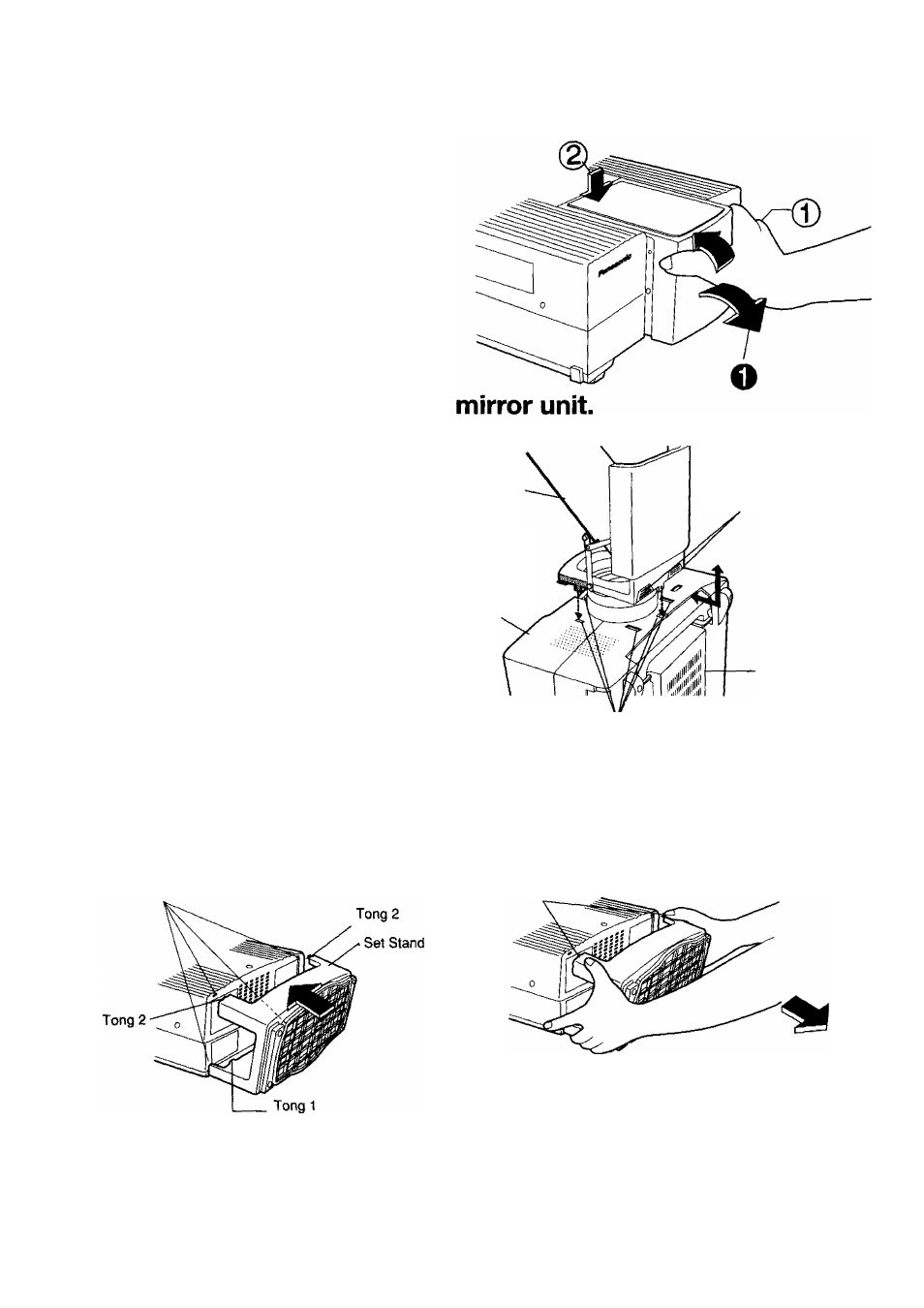

■ Drawing in and out the mirror unit.
The mirror unit can be folded up and stored
when not in use.
Drawing out
Drawing in
OP l HI out the cover section, and
adjust the mirror angle for use.
CJ) Press the cover in to draw it in.
d)Press the mirror in to draw it in.
Attaching and removing the
Removing
Pull out after sliding the mirror
unit towards the bottom of the
main unit.
Mirror
Attaching
Press until the attachment
knobs on the mirror box slide
into the attachment slots on the
main unit, and lock with a click. Front Side of
the Unit
I The lens cap cannot be put on with the mirror
unit attached.
Lock button (2 places)
Bottom Side of the
Unit
Attachment Slots (6)
Attaching and Removing the Set Stand
Attaching Removing
Slide the set stand into the attachment slots on the
unit, and push in until the stand locks with a click.
When setting up the set stand, insert tongs 2 after
inserting tong 1.
Main Unit Attachment Slots (4)
Press on the two spots above the set stand to unlock,
and pul! back to remove.
Press
Notes on attaching the terminal caps
8
The terminal caps (included as standard) on the back terminal section are for the purpose of preventing dust from falling
into the terminal section. Please attach these caps to those terminals that are not connected to cables.
