System Examples
Remarks on System Installation
• Please read the User Manuals carefully for any equipment you intend to connect to the Projector.
• Make sure that the power is off for each piece of equipment before connecting any cables.
• If the included cables cannot be attached because of the location in which the projector is installed, please use
commercially sold cables that match the equipment to be connected.
• The signals that can be connected to the projector are video signals, S-Video Signals and Analog RGB Signals (with
synchronous signals of 0.6 - 8.0 Vp-p).
• The projector has one 1 W internal speaker. A separate audio system would be required to output high volumes, or to
enjoy stereo sound (please connect each device directly to the audio system).
• Some computer models cannot be connected to the Projector,

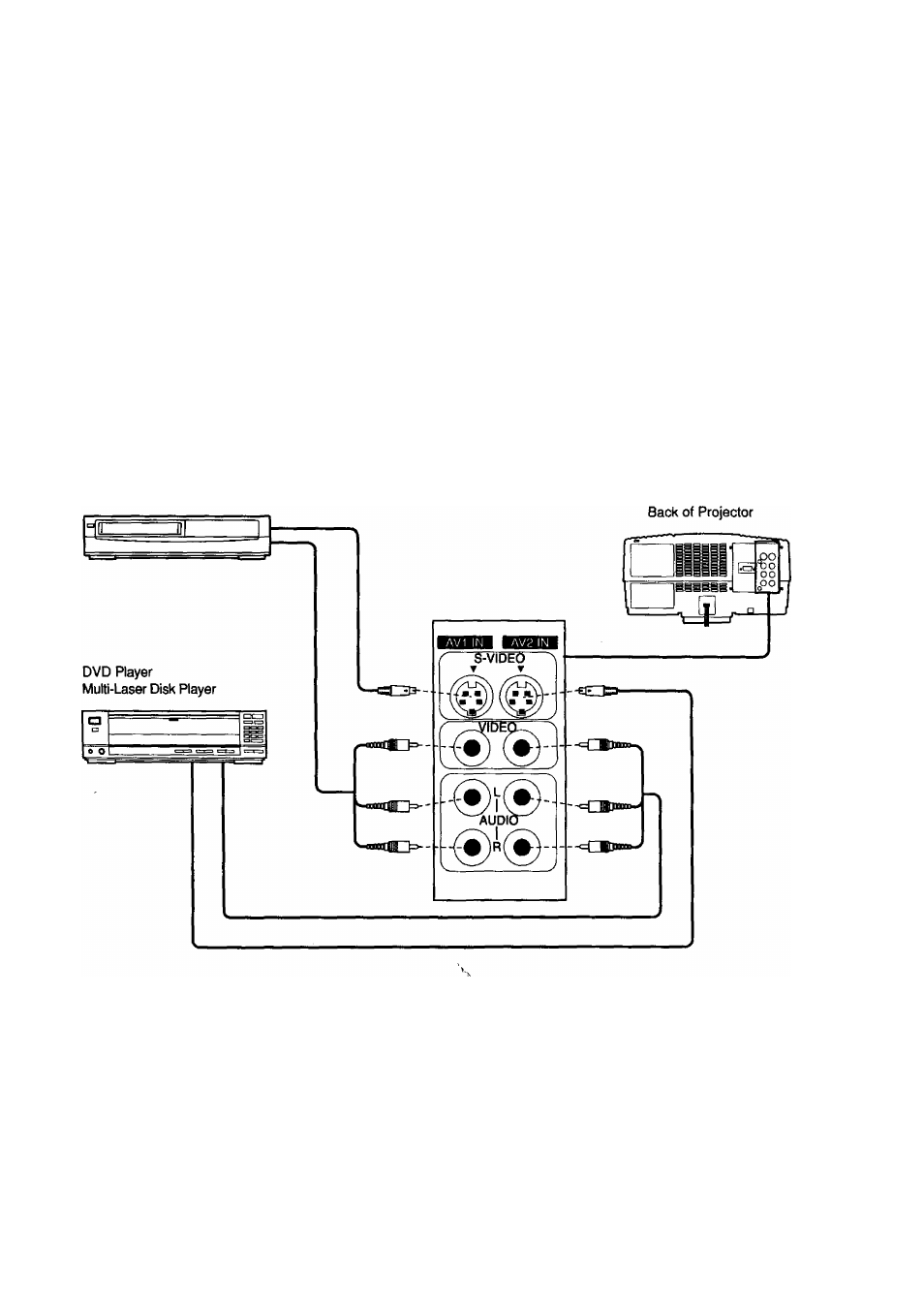

Connecting to AV Equipment
Video
• The S-Video In terminal will have priority when cables are connected to both the S-Video In and the Video In
terminals. Please do not connect a cable to the S-Video In if you wish to project video signals.
• If the video signal is to be connected using a BNC plug cable, please use a (commercially sold) BNC-Pin Adapter
if you wish to convert to a pin jack.
• The left audio and the right audio for the Video Input are combined within the Projector into monaural audio.
