Leica Geosystems GPS System 500 - Getting Started with Static and Kinematic Surveys - Manual (Page 26)

26
Static and Kinematic Surveys-2.0.0en Exploring the sensor status during operation
6
7
8
9
3
3
The way the completion counter is
programmed is based on years of
practical experience. Although the
settings are on the conservative side
there is no guarantee that baseline
results will meet the accuracy
specifications of System 500 after the
post-processing of the data.
Press F1 CONT to return to the
previous operation.
Battery and memory status
The numbers given represent the still
available amount of capacity.
For instance in this particular
example there is still 1.1 MB memory
left on the PC-card.
It is recommended to continue data
logging until the completion counter
indicates at least 100 %.
Additional information provided in this
panel is the time already spent on the
point, the estimated time to go (until
100% completion is achieved),
number of cycle slips which occurred
since the start of this site occupation,
current GDOP as well as the number
of recorded static observations.

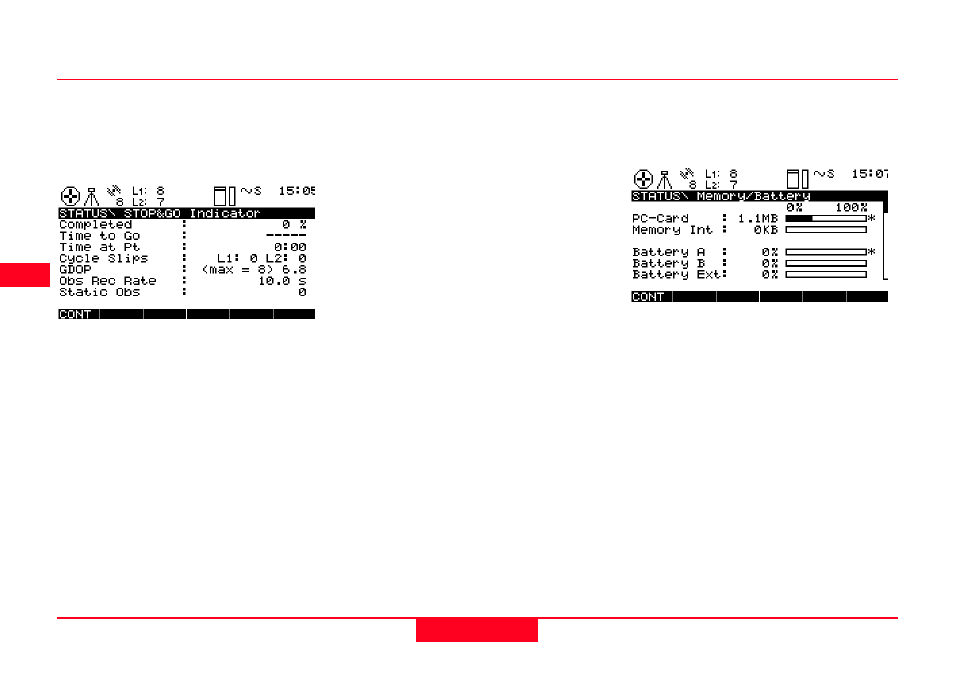

Stop & Go indicator, contd.
Once a point is occupied a per-
centage counter becomes active
which informs the user on the site
occupation status:
This quite useful screen is found
under "3 General" \ "1 Memory /
Battery".
