11
Static and Kinematic Surveys-2.0.0en Using the TR500 terminal
Listboxes Entering information, contd.

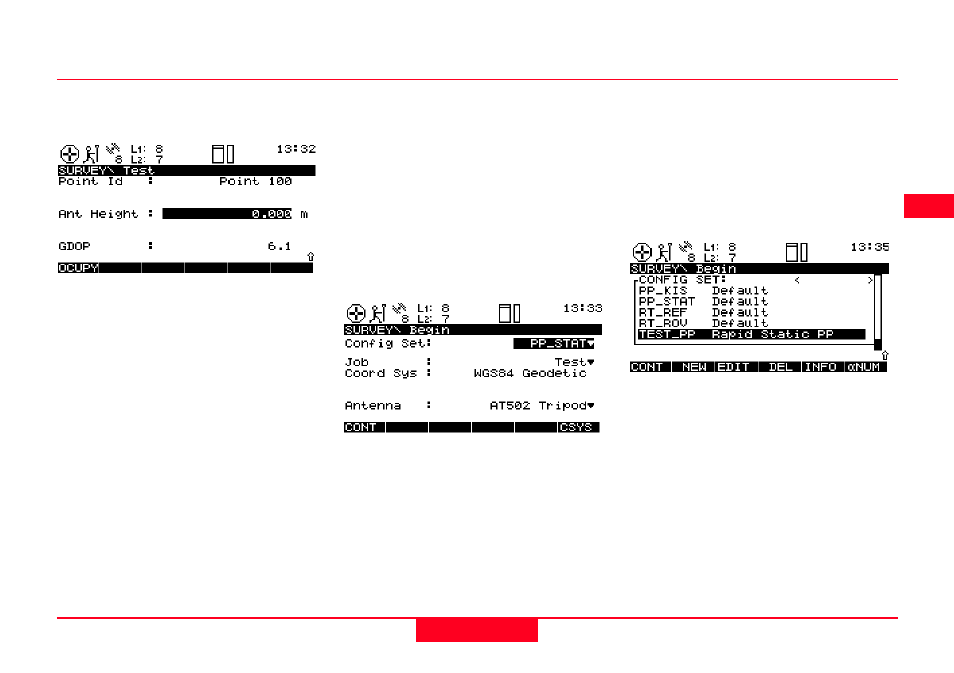

Use numeric keys to enter the
antenna height.
When ENTER is pressed the focus is
moved to the next input field:
The input for Configuration Set, Job
and Antenna has to be made based
on a list.
Press ENTER to open the highlighted
listbox. A list pops up from which a
choice has to be made:
Use the cursor down / up keys to
move the selection bar down or up the
list. Select your input by highlighting
the particular line.
6
7
8
9
Some input fields expect a predefined
input. The choices are available in a
list which is kept behind the input
field.
Input fields based on a listbox are
identified by a small triangle which
appear on the right side of the field.
The following example shows 3 such
input fields in one screen:
