To enter a waypoint identifier:
1. If the cursor is not on the screen
(figure 4-32), press
B to turn on
the cursor function (figure 4-33).
2. If required, rotate the right outer
knob to position the cursor
(figure 4-34).
3. Rotate the right inner knob to
select the first character of the
waypoint identifier (figure 4-35).
4. Turn the right outer knob one
click clockwise to move the cursor
to the second character position
(figure 4-36).
5. Rotate the right inner knob to
select the second character
(figure 4-37).
6. Use the right outer and inner
knobs in this manner until the
complete waypoint identifier is
displayed (figure 4-38). Note that
you may not have to enter the last
characters of the identifier
because each time you enter a
character, the KLX 135 offers you
the first identifier in the data base
beginning with the characters you
have entered.
Basic GPS Operation
4-12 Effective Date 3/94 006-08751-0000 Rev 0
Basic GPS Operation
Chapter 4
APT VOR NDB SUP ACT NAV FPL CAL SET OTH
122.90 >Wpt Fr> KRDU
132.50 To>KSAV
>Leg 255nm Brg 209°
CRSR 121kt ETE 2:06

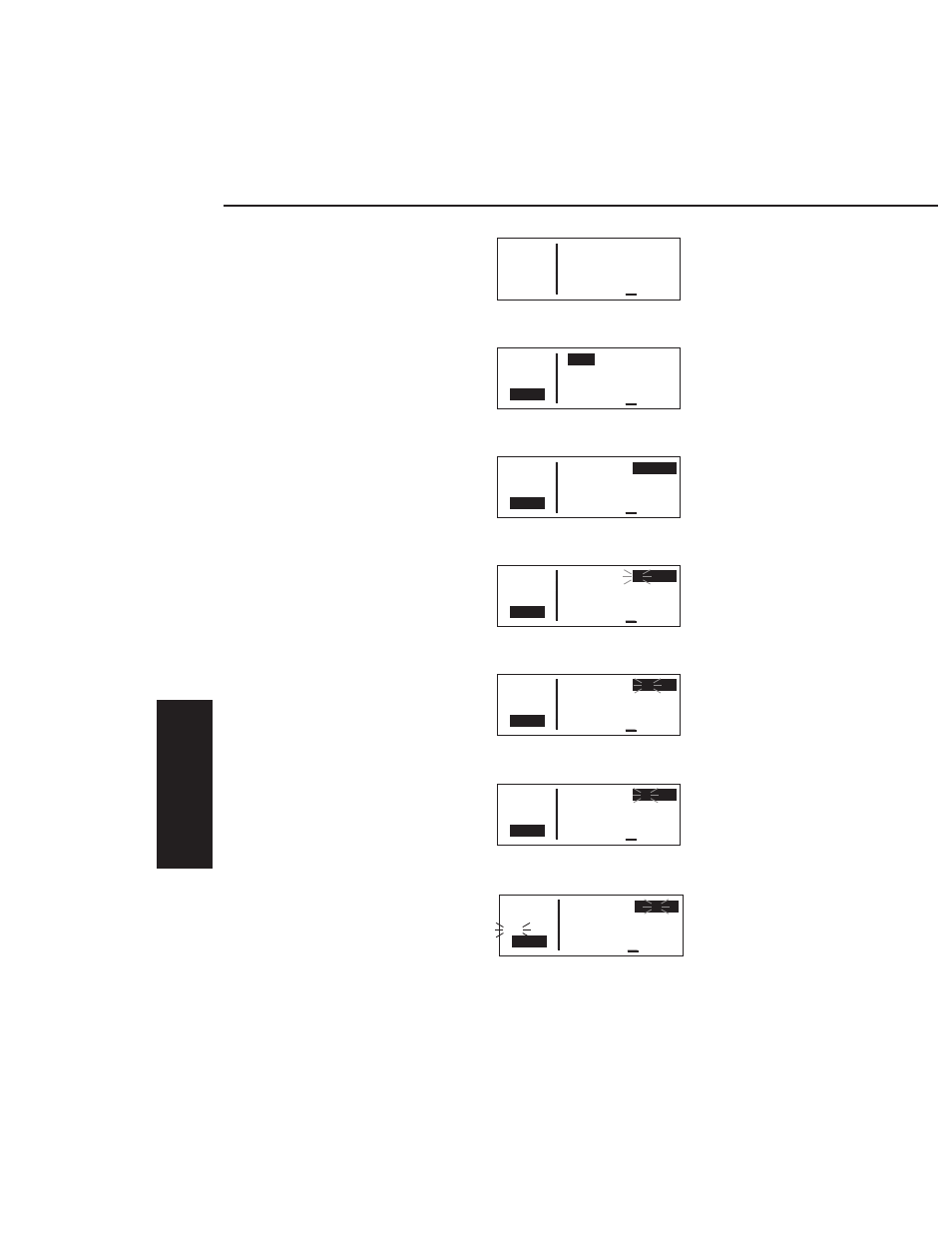

Figure 4-34
APT VOR NDB SUP ACT NAV FPL CAL SET OTH
122.90 >Wpt Fr> K
132.50 To>KSAV
>Leg 255nm Brg 209°
CRSR 121kt ETE 2:06
Figure 4-35
APT VOR NDB SUP ACT NAV FPL CAL SET OTH
122.90 >Wpt Fr> K
132.50 To>KSAV
>Leg 255nm Brg 209°
CRSR 121kt ETE 2:06
Figure 4-36
APT VOR NDB SUP ACT NAV FPL CAL SET OTH
122.90 >Wpt Fr> KF2
132.50 To>KSAV
>Leg 255nm Brg 209°
CRSR 121kt ETE 2:06
Figure 4-37
APT VOR NDB SUP ACT NAV FPL CAL SET OTH
122.90 >Wpt Fr> KFFA
132.50 To>KSAV
#>Leg 255nm Brg 209°
CRSR 121kt ETE 2:06
Figure 4-38
APT VOR NDB SUP ACT NAV FPL CAL SET OTH
122.90 > Wpt Fr>KRDU
132.50 To>KSAV
>Leg 255nm Brg 209°
CRSR 121kt ETE 2:06
Figure 4-33
APT VOR NDB SUP ACT NAV FPL CAL SET OTH
122.90 >Wpt Fr>KRDU
132.50 To>KSAV
>Leg 255nm Brg 209°
CAL 1 121kt ETE 2:06
Figure 4-32
