Carrier 19XR,XRV Hermetic Centrifugal Liquid Chillers - Manual (Page 51)

51

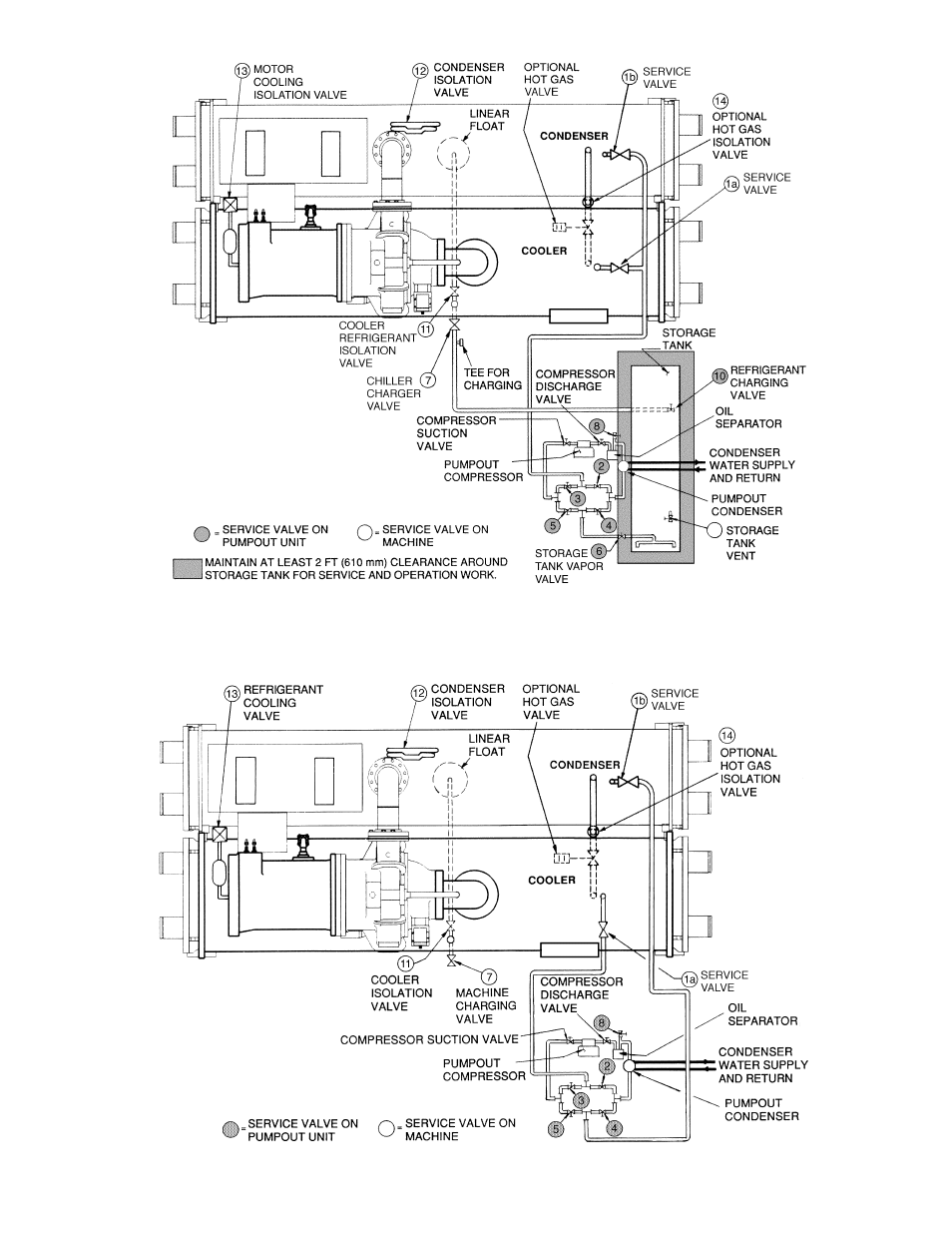

Fig. 29 — Typical Optional Pumpout System Piping Schematic with Storage Tank
Fig. 30 — Typical Optional Pumpout System Piping Schematic without Storage Tank
