110

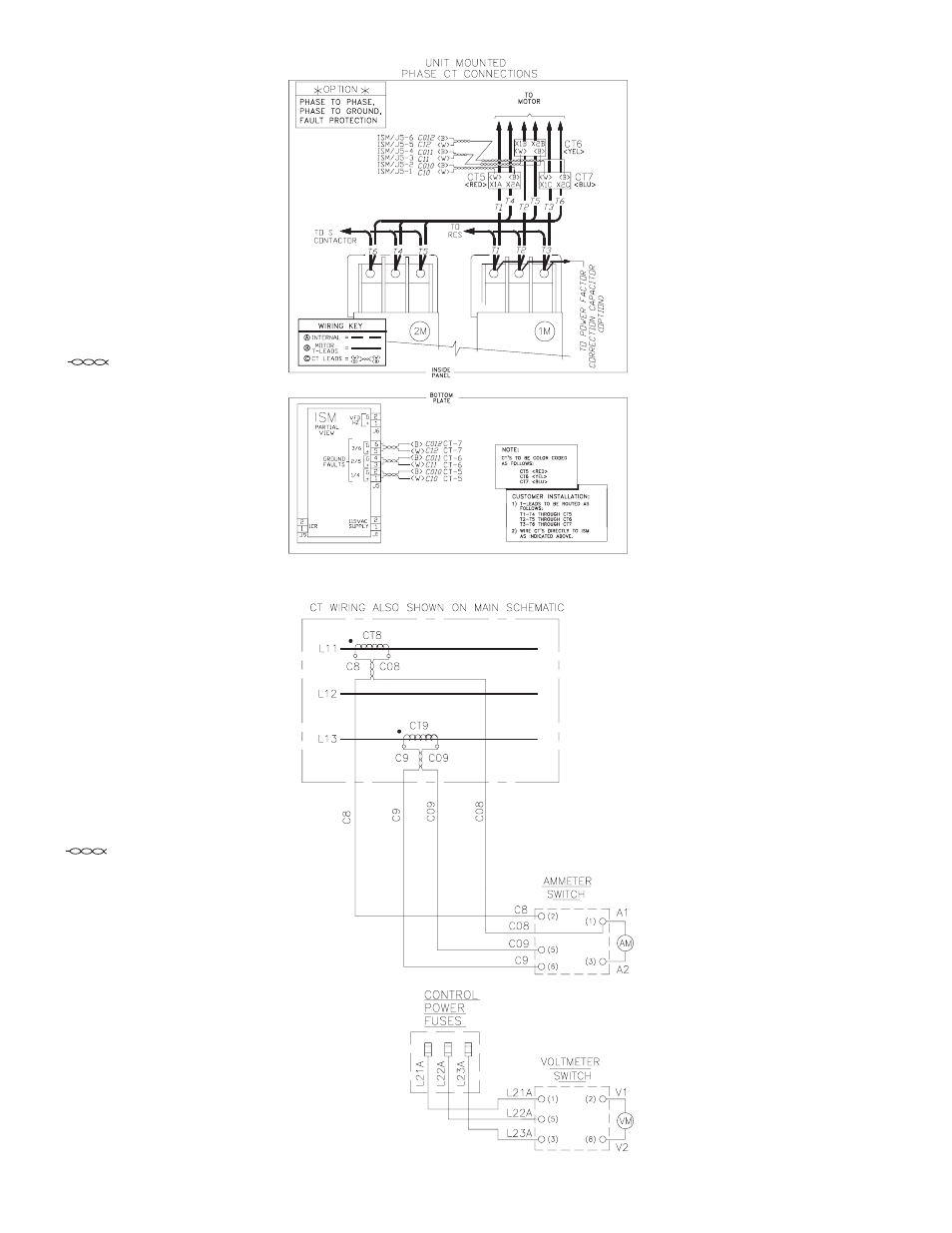

Fig. 51 — Ground Fault Phase Current Option
Fig. 52 — Separate Metering Option
LEGEND
AM — Ammeter
CT — Current Transformer
L — Main Power Supply
VM — Voltmeter
Represents Twisted Wire
To Door
LEGEND
CT — Current Transformer
ISM — Integrated Starter Module
VFD — Variable Frequency Drive
Represents Twisted Wire
To Door
