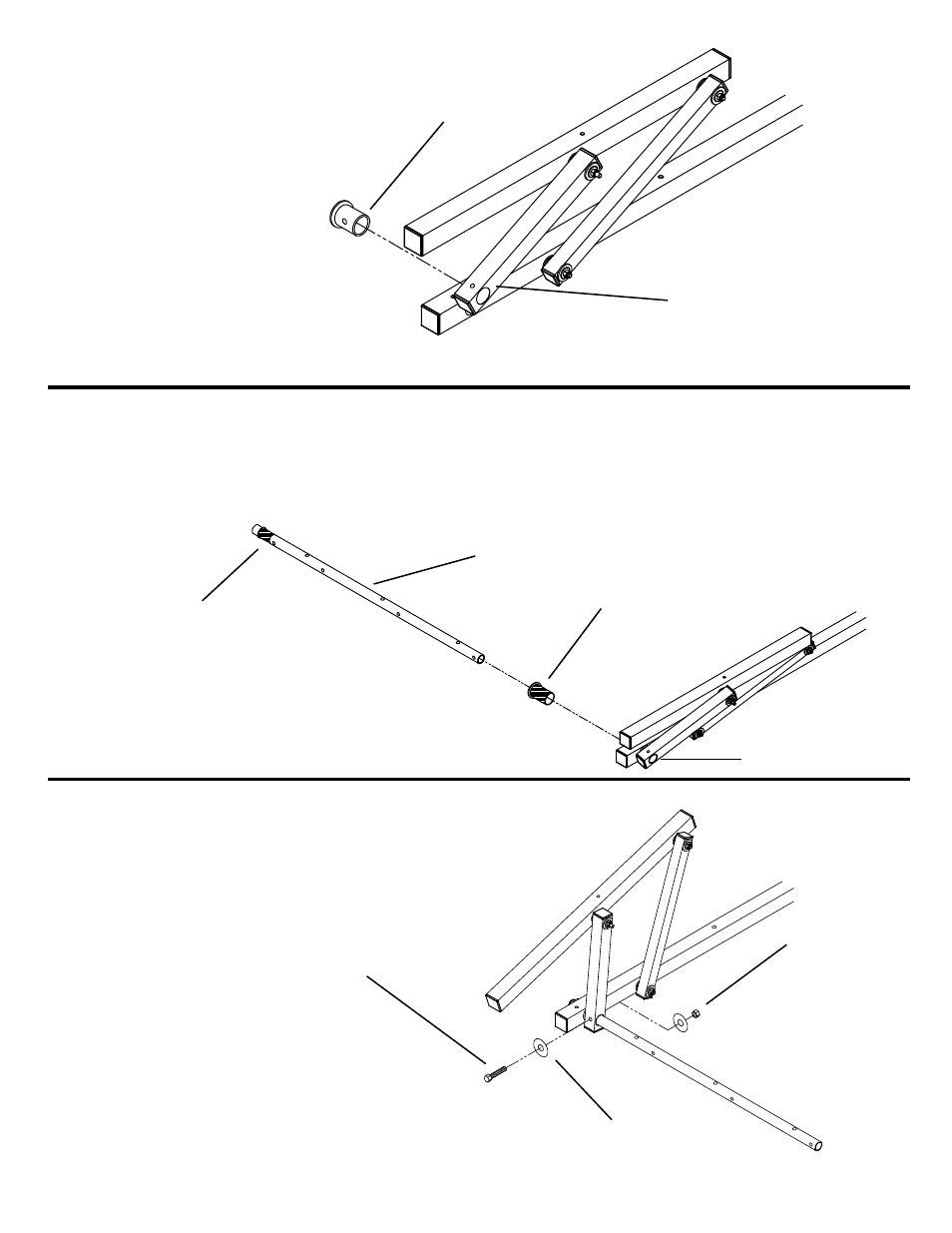

STEP 4
Slide a White Plastic Bushing (A)
into the Pivot Arm (B) as shown.
(A)
(B)
STEP 5
Use the supplied lubricant and coat the pre-assembled
Black Plastic Bushing (A). Insert the Front Drive Tube (B)
into the larger Black Plastic Bushing (C) in the Front Cross-
Member Assembly (D) and through the White Plastic Bush-
ing in the Pivot Arm (Step 4) so that the black bushings are
fully seated.
(A)
(B)
(C)
(D)
STEP 6
Align holes in the Pivot Arm, White Plastic Bushing, and
Front Drive Tube. Install the 3/8-16 x 2-1/4" Fastener.
* 3/8-16 x 2-1/4"
Hex Hd. Bolt
(2) 3/8" Flat
Washer
3/8-16 Nylon
Lock Nut
NOTE: Tighten all marked (*)
fasteners to 200 in. lbs.
