WEATHER GUARD Model 284 EZ-GLIDE® System, Driver Side, 10 ft Hi-Cube Vans User Manual
Page 10
USE THESE HOLES FOR DESIRED LENGTH
8'
5'
6'
7'
Front Pivot Arm
Rear Pivot Arm

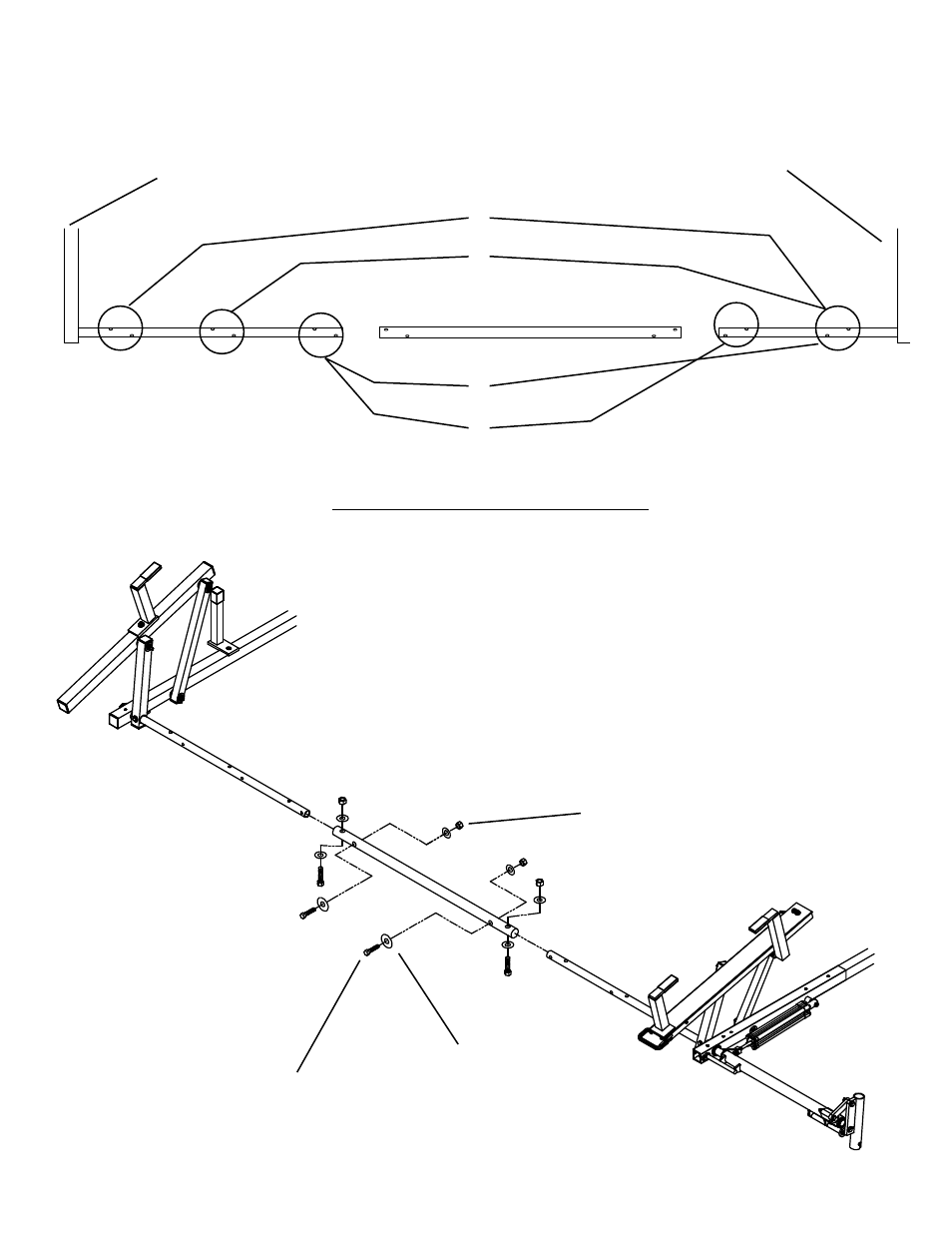

STEP 11
Determine the length of rack you need.
FRONT TO REAR DRIVE TUBE ASSEMBLY
STEP 12
Locate desired front to rear length (5' or 6' or 7' or 8') and install
5/16-18 x 2" Fasteners (Tighten fasteners to 200 in. lbs.)
(4) 5/16-18
Nylon Lock
Nut
(8) 5/16" Flat
Washer
(4) 5/16-18 x 2"
Hex Hd. Bolt
STEP 13
Cover any exposed holes on Front and Rear Drive Tubes
with the 1" Dia. Vinyl Hole Covers
STEP 14
Seal the ends of the Center Drive Tube, the four 5/16-18 Fasten-
ers, and the two 3/8-16 Fasteners with the tube of sealant sup-
plied.
11
10
