WEATHER GUARD Model 284 EZ-GLIDE® System, Driver Side, 10 ft Hi-Cube Vans User Manual
Page 13

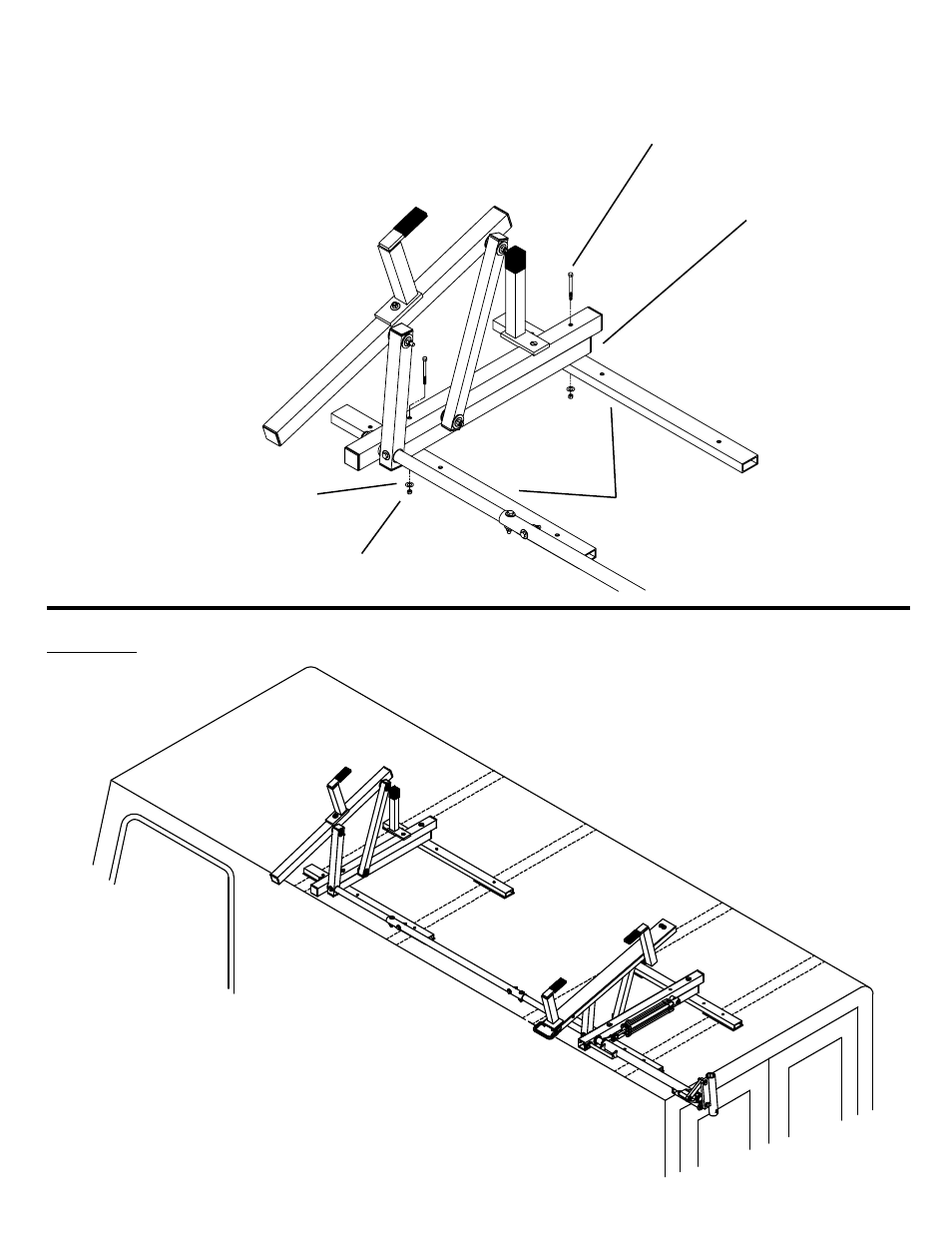

STEP 18
Determine what small hole to mount Front
Rotation with after lining Mounting Base up
with Roof Ribs toward front of van. Attach
Front Rotation Assembly to the Mounting
Bases with 5/16-18 x 4" Hex Hd. Bolts. Flat
Washer and Nylon Lock Nut will mount
through large hole on bottom onto bolt.
(2) Mounting Base
(2) 5/16-18 x 4" Hex
Hd. Bolt
(2) 5/16-18 Nylon
Lock Nut
(2) 3/8 Flat Washer
STEP 19
WITH HELP! Place entire unit on vehicle in desired position. Check to verify that the Handle clears the rear of the van.
14
Mounting Tube
13
