Caution – WEATHER GUARD Model 284 EZ-GLIDE® System, Driver Side, 10 ft Hi-Cube Vans User Manual

Page 16

STEP 24
With the side of the ladder sitting on the
ladder support of the rear slide down
assembly in the up position, adjust the
ladder stop so that it is approximately
1/4" above the ladder and tighten the
fastener firmly.

DOWN

HANDLE ROTATION

STEP 25
Adjust the flow control screw on the
cylinder per the instruction decal on the
drive shaft handle tube until the ladder
operates smoothly as you rotate the
ladder up and down.

DOWN

REAR SLIDE DOWN

RELEASE

LADDER SUPPORT

LADDER STOP

Once the release lever is

pushed, you must support

the full weight of the ladder

and the ladder slide.

CAUTION

LADDER & CYLINDER ADJUSTMENTS

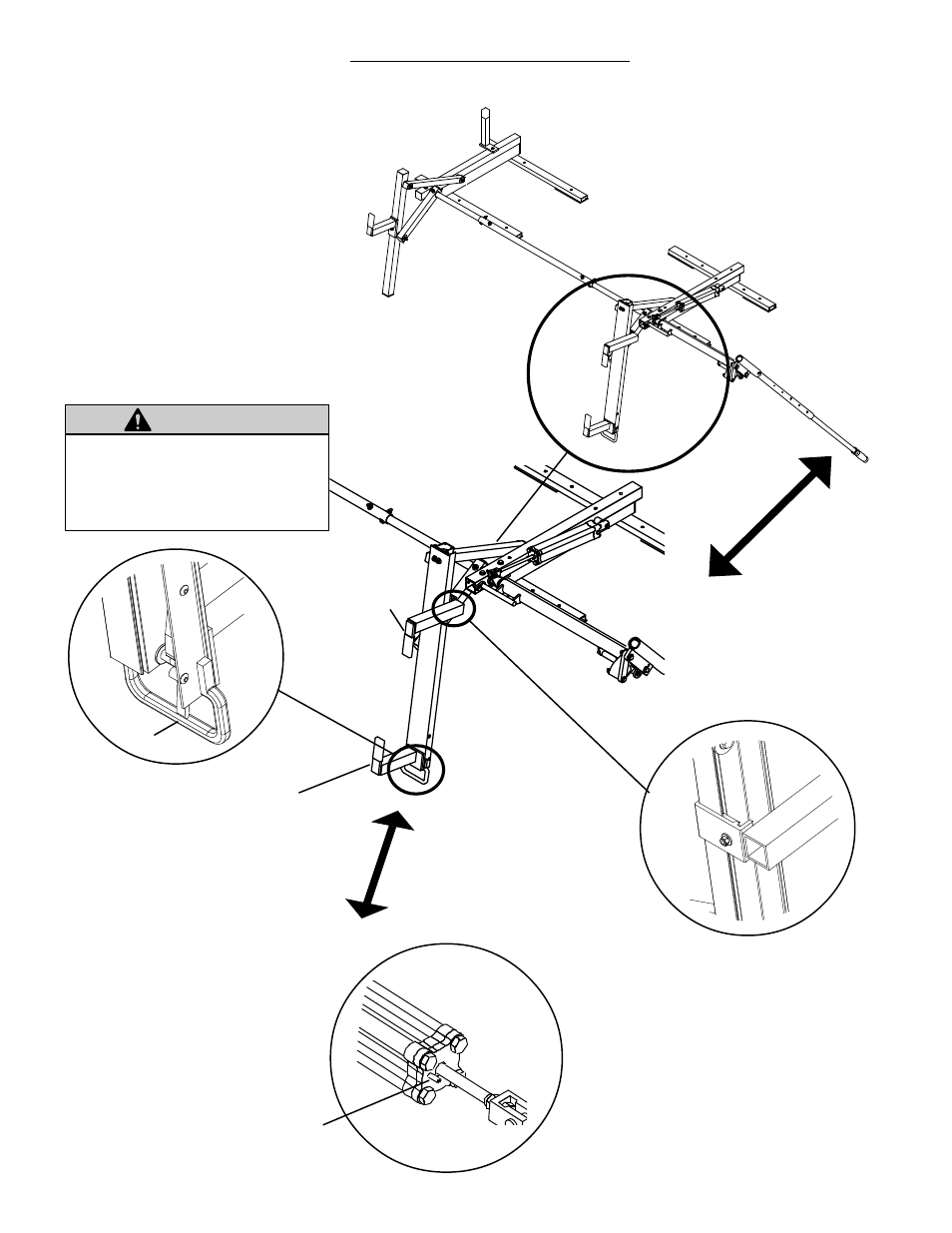

STEP 22
Using the handle rotate rack to the
down position. Because the ladder
rack is not under the load of a ladder,
you may have to pull the front and rear
rotation assemblies down by hand after
moving the handle to the down posi-
tion.

STEP 23
Actuating the release mechanism on
the rear slide down, lower the assem-
bly. Place the ladder onto the ladder
rack and raise only the rear slide down
to the upper position. Do not rotate the
rack to the up position at this time.

RELEASE
