WEATHER GUARD Model 283 EZ-GLIDE® System, Driver Side, 8 ft Hi-Cube Vans User Manual
Page 9

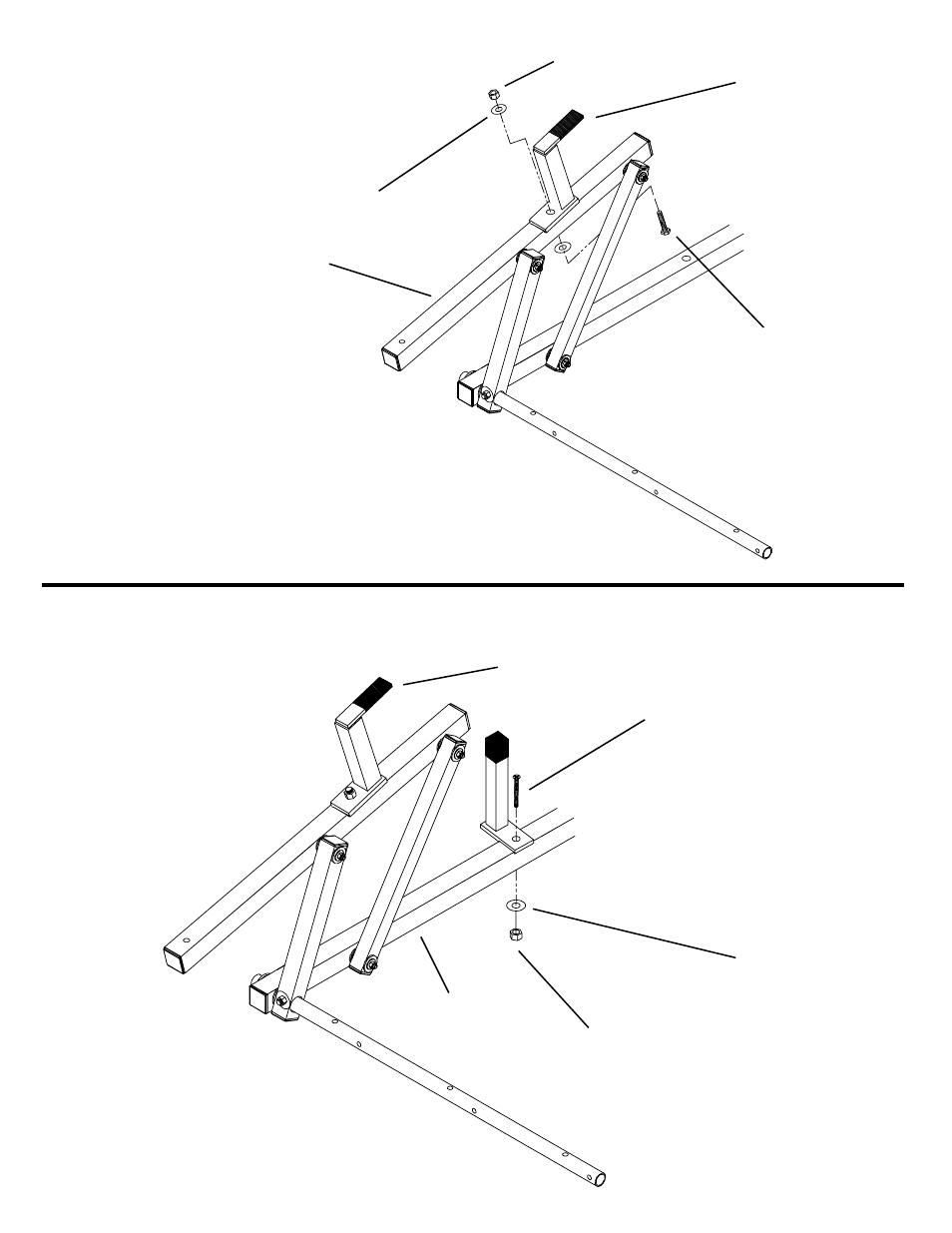

STEP 9
Place the Ladder Support (A) on top of
the Connecting Tube (B) and install the
5/16-18 x 2-3/4" Fastener.
(A)
(B)
5/16-18 x 2-3/4"
Hex Hd. Bolt
(2) 5/16"
Flat Washer
5/16-18 Nylon
Lock Nut
STEP 10
Place the Ladder Stop (A) on top of the Cross-Member (B)
and install the 5/16-18 x 2-1/2" Fastener (Flat Hd. Screw).
(B)
5/16-18 x 2-1/2"
Flat Hd. Screw
5/16" Flat
Washer
5/16-18 Nylon
Lock Nut
(A)
10
9
