WEATHER GUARD Model 280-3-01 EZ-GLIDE® System, High-Roof User Manual
Page 6
Cotter Pin
1" Clevis Pin
NOTE: Turn the Flow Control
counter clockwise to release
pressure. Adjust Flow Con-
trol Screw Per Instruction
Decal On Handle Tube after
final assembly and installa-
tion.
(3) 3/8" Flat
Washer
5/16-18 x 4-1/2"
Hex Hd. Bolt
(A)
STEP 4

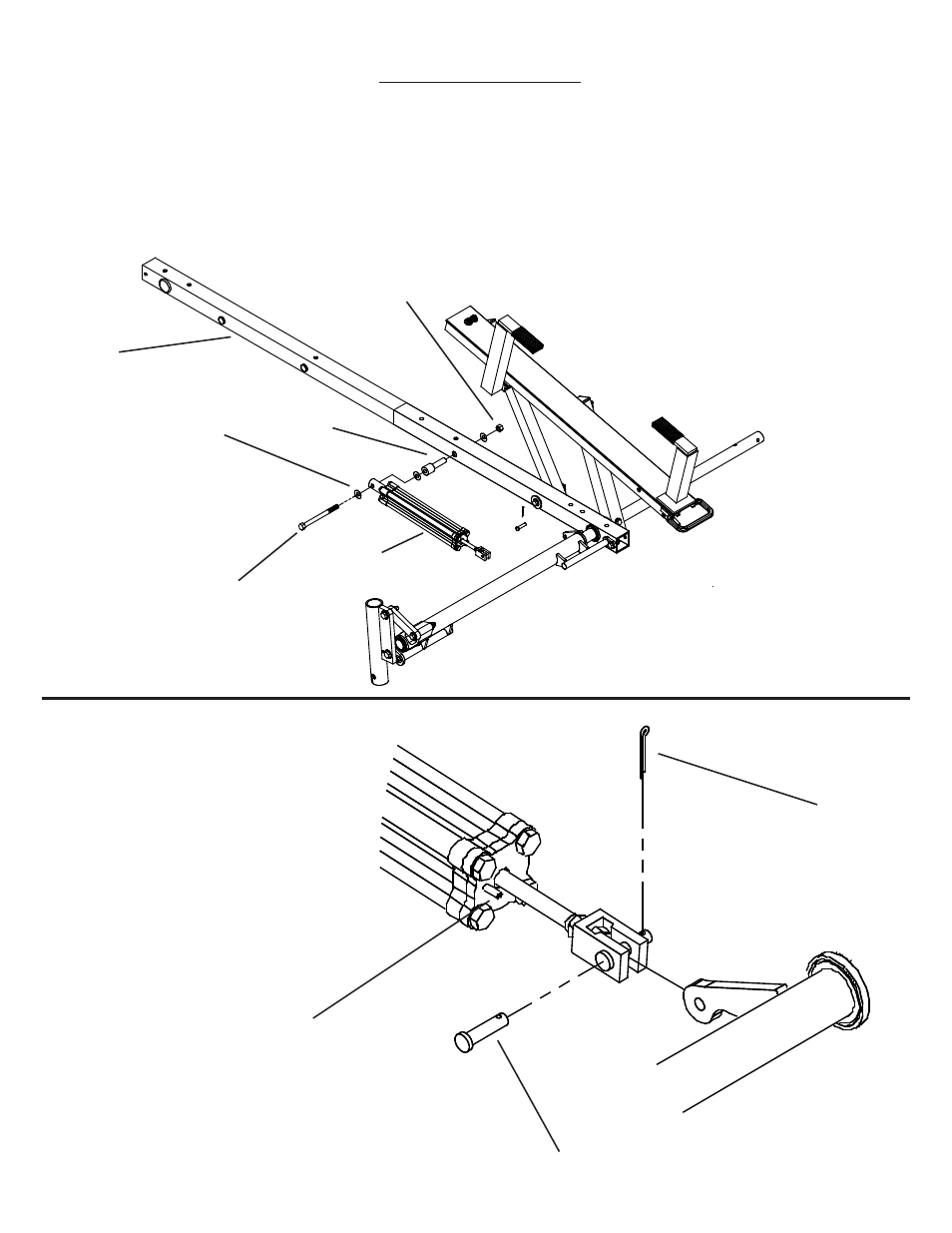

Insert Aluminum Bushing (A) into Rear
Cross-Member (B). Attach back of Cylinder (C)
to cross member by installing 5/16-18 x 4-1/2"
Fastener.
NOTE: After installing Bolt, apply
Loctite 290 to threads, then install the nut.
(C)
STEP 5
Attach front of Cylinder as shown. Bend over
Cotter Pin after inserting it through Clevis Pin.
5/16-18 Nylon
Lock Nut
(B)
CYLINDER INSTALLATION
