WEATHER GUARD Model 280-3-01 EZ-GLIDE® System, High-Roof User Manual
Page 10
0

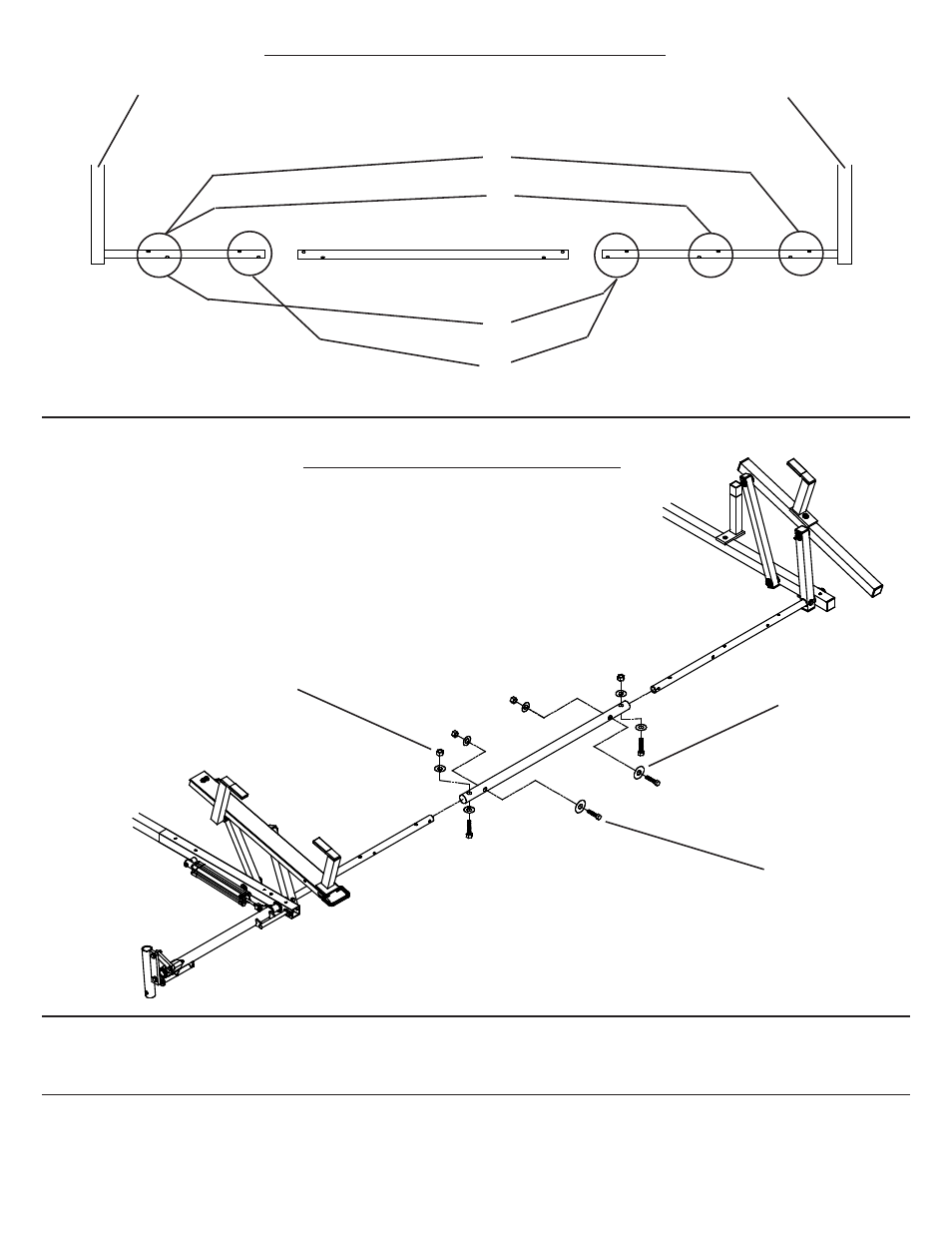

FRONT TO REAR DRIVE TUBE ASSEMBLY
STEP 11
Determine desired front to rear length
from the chart shown above
(5' or 6' or 7' or 8') and install
5/16-18 x 2" Fasteners
(Tighten fasteners to 200 in. lbs.)
(4) 5/16-18
Nylon Lock
Nut
(8) 5/16" Flat
Washer
(4) 5/16-18 x 2"
Hex Hd. Bolt
STEP 12
Cover any exposed holes on Front and Rear Drive Tubes with the 1" Dia. Vinyl Hole Covers
STEP 13
Seal the ends of the Center Drive Tube, the four 5/16-18 Fasteners, and the two 3/8-16 Fasteners with the tube of sealant
supplied.
USE THESE HOLES FOR DESIRED
LENGTH
8'
5'
6'
7'
Rear Pivot Arm
Front Pivot Arm
HOW TO DETERMINE RACK LENGTH FOR YOUR VAN
