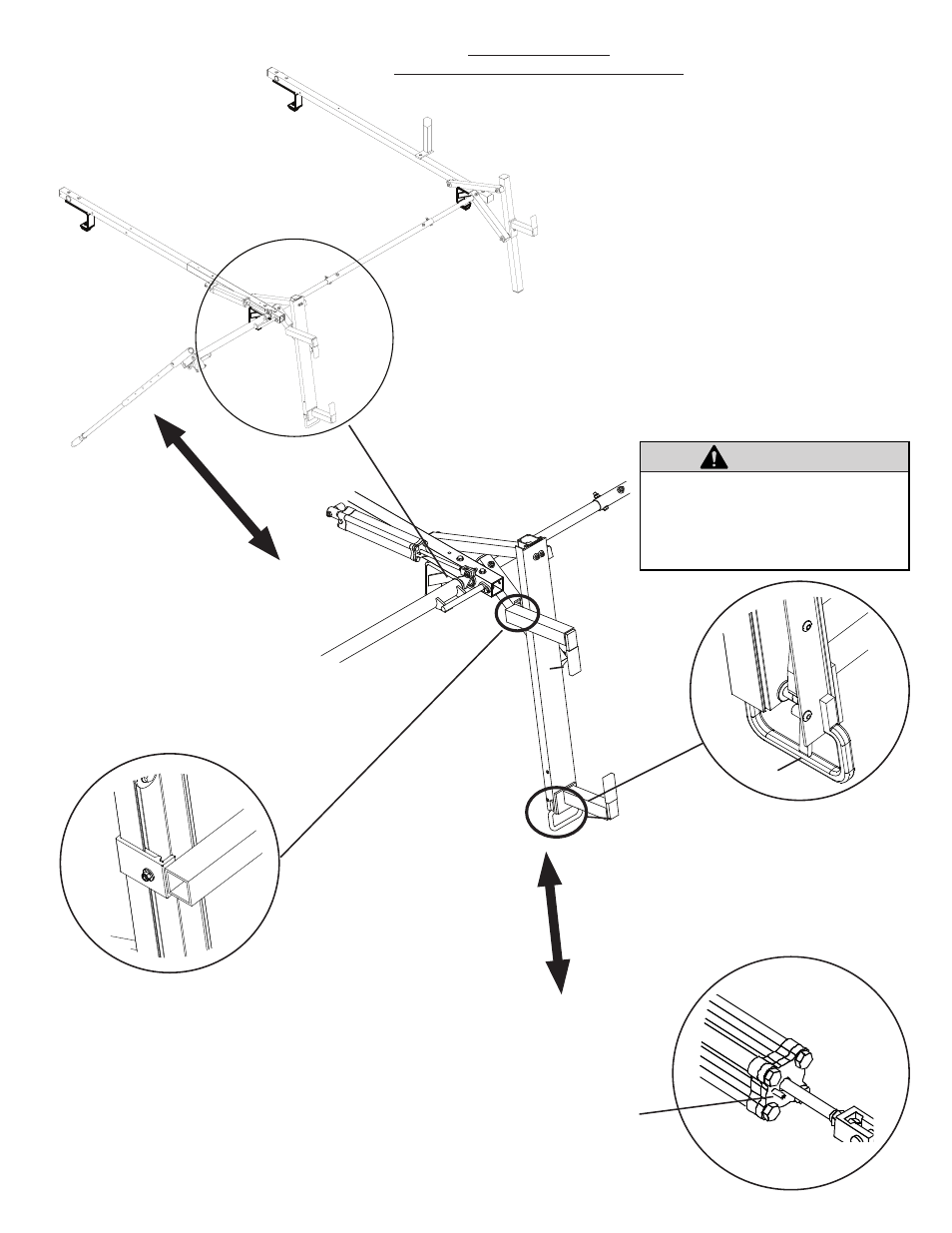

STEP 21
Adjust the flow control screw on the
cylinder per the instruction decal on the
drive shaft handle tube until the ladder
operates smoothly as you rotate the
ladder up and down.
DOWN
UP
REAR SLIDE DOWN
RELEASE
LADDER SUPPORT
LADDER STOP
Once the release lever is
pushed, you must support
the full weight of the ladder
and the ladder slide.
CAUTION
FINAL ASSEMBLY
LADDER & CYLINDER ADJUSTMENTS
STEP 18
Using the handle rotate rack to the
down position. Because the ladder
rack is not under the load of a ladder,
you may have to pull the front and rear
rotation assemblies down by hand after
moving the handle to the down posi-
tion.
STEP 19
Actuating the release mechanism on
the rear slide down, lower the assem-
bly. Place the ladder onto the ladder
rack and raise only the rear slide down
to the upper position. Do not rotate the
rack to the up position at this time.
STEP 20
With the side of the ladder sitting on
the ladder support of the rear slide
down assembly in the up position,
adjust the ladder stop so that it is ap-
proximately 1/4" above the ladder and
tighten the fastener firmly.
UP
DOWN
HANDLE ROTATION
RELEASE
