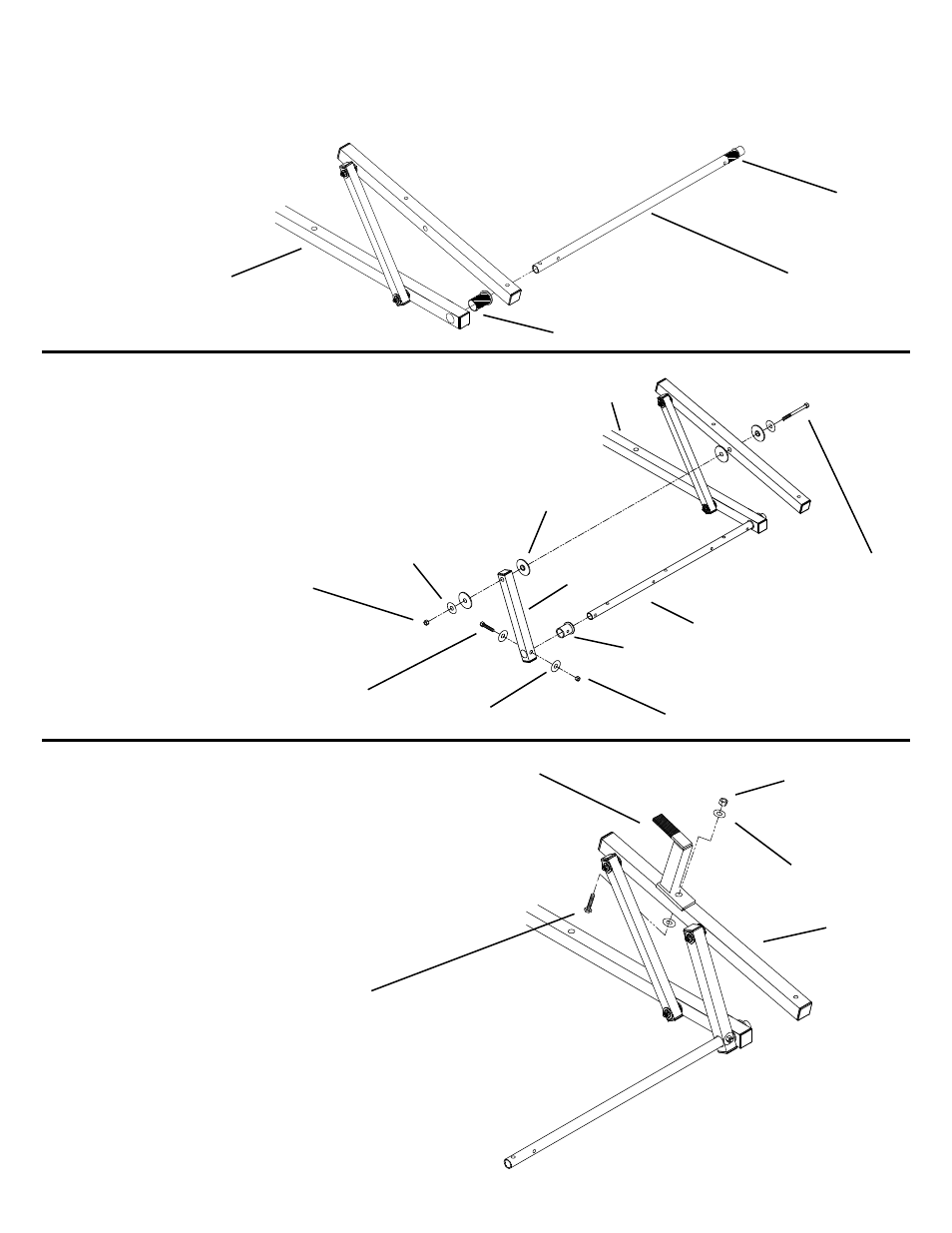

STEP 9
Use the supplied lubricant and coat the pre-assembled Black Plastic Bushing (A). Insert Front Drive Tube (B) into the larger
Black Plastic Bushing (C) in the Front Crossmember Assembly (D) so that the black bushings are fully seated.
(A)
(B)
(C)
(D)
STEPS 10 & 11
Slide a White Plastic Bushing (A) onto the Front Drive Tube (B) until
it is butted up to the Lower Rotation Tube (C). Align holes in the tube
and bushing. Slide the Pivot Arm (D) over the tube and bushing,
align holes, and install the 3/8-16 x 2-1/4" Fastener. Next install the
5/16-18 x 4-1/2" Fastener with four Flat Plastic bushings (E) as
shown.
(A)
(B)
(D)
* 3/8-16 x 2-1/4"
Hex Hd. Bolt
(2) 3/8" Flat
Washer 3/8-16 Nylon
Lock Nut
5/16-18 x 4-1/ 2"
Hex Hd. Bolt
(2) 3/8" Flat
Washer
5/16-18 Nylon
Lock Nut
(E)
STEP 12
Place the Ladder Support (A) on top of
the Connecting Tube (B) and install the
5/16-18 x 2-3/4" Fastener. (A)
(B)
5/16-18 x 2-3/4"
Hex Hd. Bolt
(2) 5/16" Flat
Washer
5/16-18 Nylon
Lock Nut
(C)
NOTE: Tighten all Marked (*)
fasteners to 200 in. lbs.
