WEATHER GUARD Model 253 EZ-GLIDE® System, Compact User Manual
Page 10

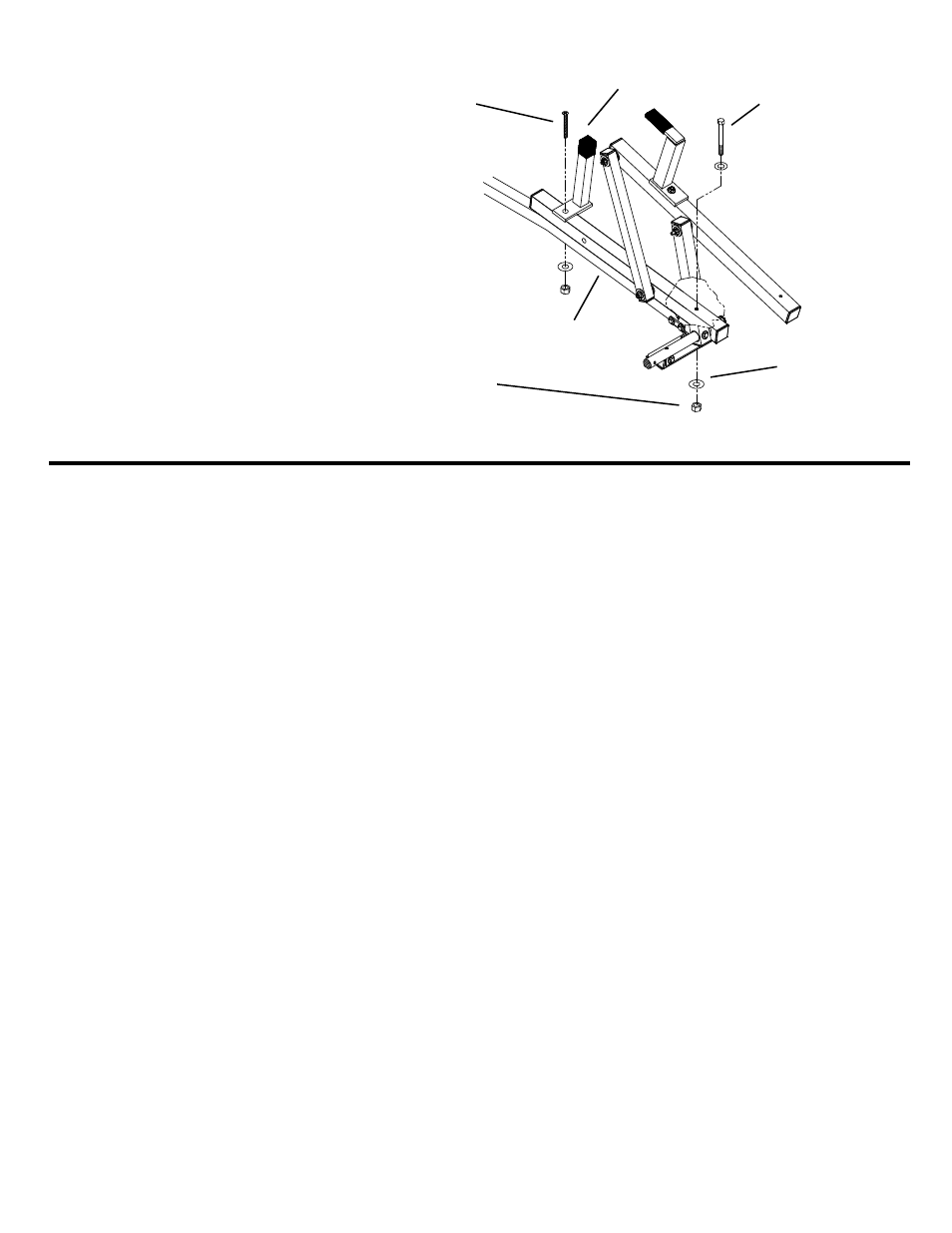

STEP 13
Place the Front Rotation
Assembly on top of the
Cross-Member (A) and
place the Ladder Stop (B)
on top of the Lower
Rotation Tube, install the
5/16-18 x (4-1/4" or 5")
(Flat Hd. Screw).
Install 5/16-18 x 4" Hex
Hd. Bolt through Lower
Rotation Tube and through
the Cross-Member.
(B)
(A)
5/16-18 x (4-1/4" or 5")
Flat Hd. Screw
(3) 3/8" Flat
Washer
(2) 5/16-18
Nylon Lock Nut
5/16-18 x 4"
Hex Hd. Bolt
10
