Caution – WEATHER GUARD Model 253 EZ-GLIDE® System, Compact User Manual
Page 15
STEP 19
WITH HELP! Place entire unit on vehicle in desired position. Check to verify that the Handle clears the rear of the van.
It may be neccessary to move the rack to the rear.
(A)
(2) 5/16
Rubber Washer
(2) 5/16"
Flat Washer
Mounting
Pad-Rubber
(2) 5/16-18 x 1-1/4"
Hex Hd. Bolt

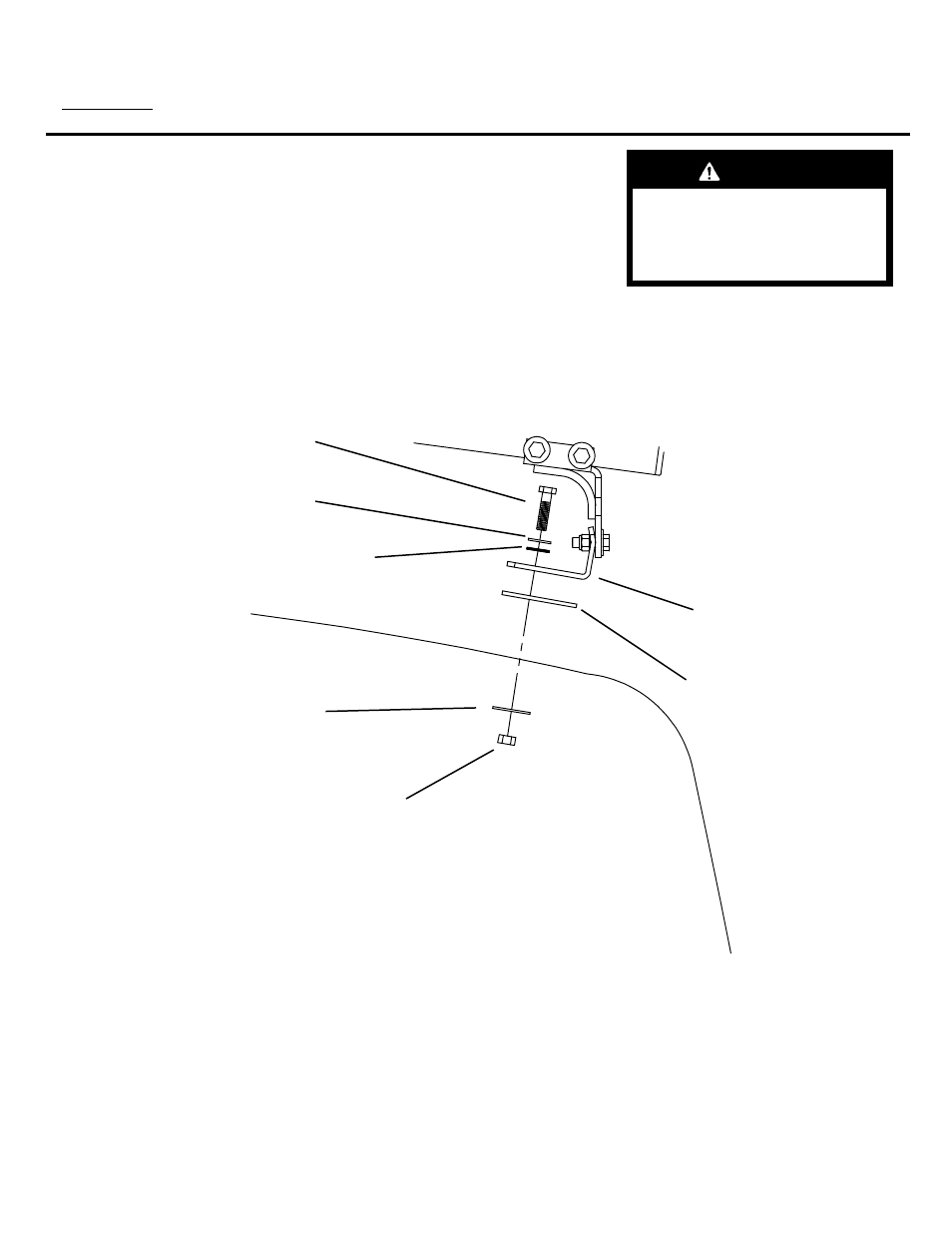

STEP 20 (4 Places)
With unit centered side to side, mark the holes in the
Mounting base (A). Move the unit out of the way
enough to drill the holes. Reposition unit and secure to
the van roof with the 5/16-18 x 1-1/4" Fasteners.
(2) 5/16-18
Nylon Lock Nut
(2) 1-1/4" OD
Fender Washer
NOTE: Tighten all loose
fasteners at this time.
CAUTION
To keep debris out of your
eyes when drilling, always
wear protective eyewear.
NOTE: Seal the top of the bolts that go
through the roof with the sealant that is
supplied.
15
