WEATHER GUARD Model 253 EZ-GLIDE® System, Compact User Manual
Page 5

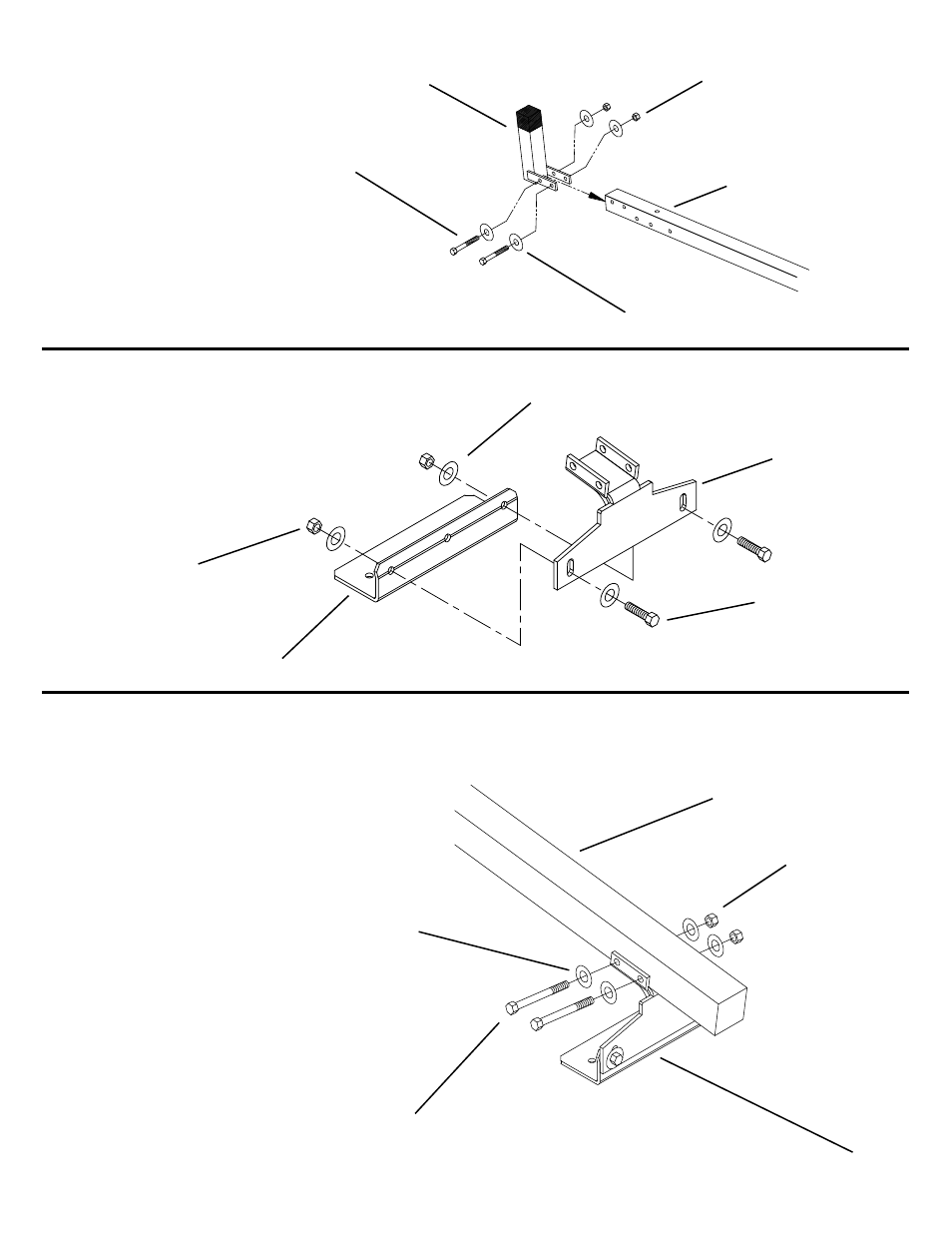

STEP 1 (DRIVER SIDE Front and Rear)
Attach Driver Side End Stop (A) to
Cross-Member (B) with 5/16-18 x 2-3/4"
Fasteners.
(B)
(A)
(2) 5/16-18 x 2-3/4"
Hex Hd. Bolt
(4) 5/16-18 Flat
Washer
(2) 5/16-18 Nylon
Lock Nut
STEP 2 (4 Places)
Attach Mounting Brackets (A) to
Mounting Bases (B) with 5/16-18 x 1"
Fasteners
(A)
(B)
(2) 5/16-18 Nylon
Lock Nut
(4) 5/16-18 Flat
Washer
(2) 5/16-18 x 1"
Hex Hd. Bolt
NOTE: To allow for final
fit-up, do not tighten
these fasteners at this
time.
STEP 3 (4Places)
Attach Mounting Brackets (A) to
Cross-Members (B) with 5/16-18 x 2-3/4"
Fasteners
NOTE: To allow for final
fit-up, do not tighten
these fasteners at this
time.
(A)
(B)
(2) 5/16-18 Nylon
Lock Nut
(4) 5/16-18 Nylon
Lock Nut
(2) 5/16-18 x 2-3/4"
Hex Hd. Bolt
5
