LogicPLUS-S Two-Wire Controller
43

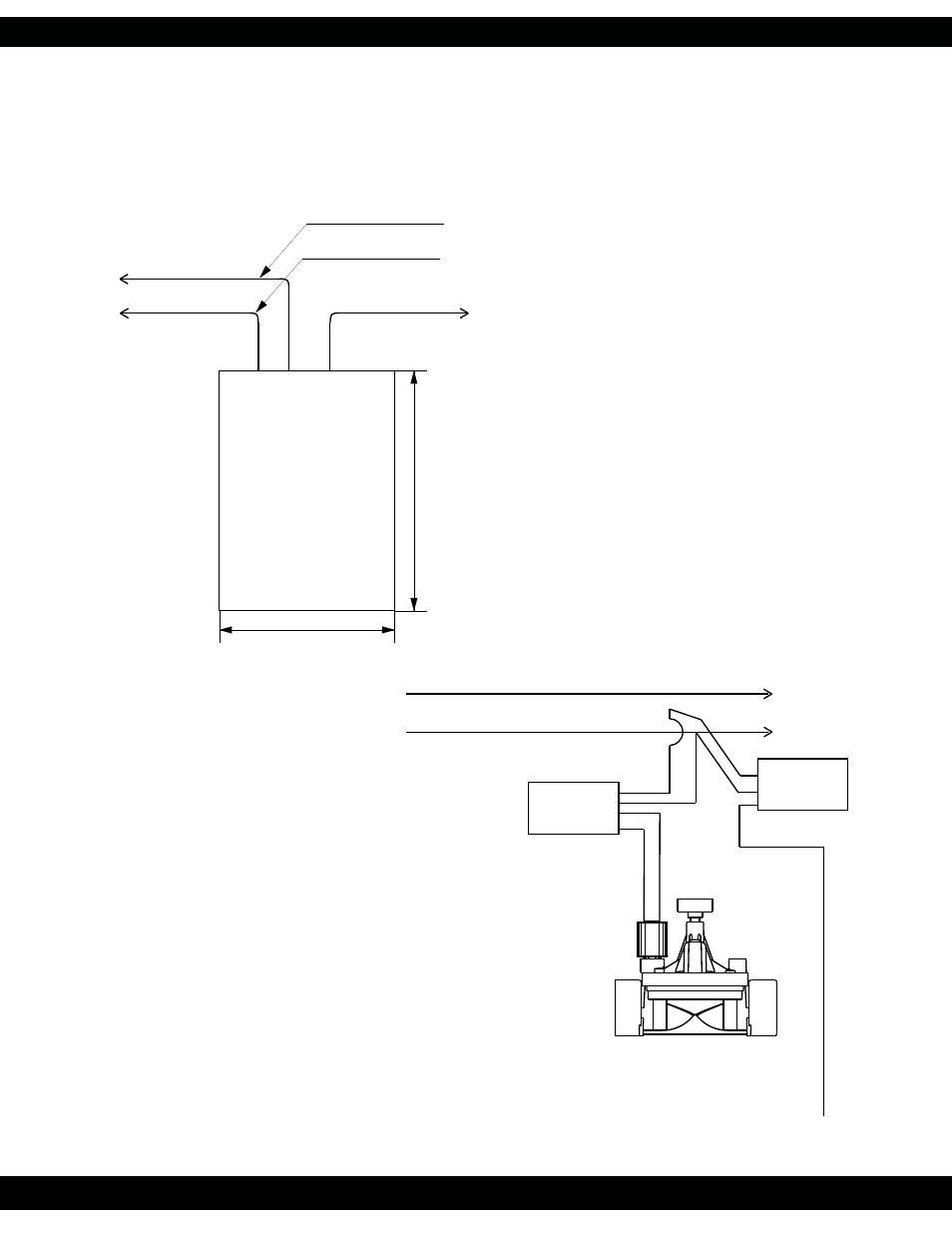

LP-SPd-F Wiring
Field Surge Protection device
Ground
Rod
Green
LP-SPD-F
Receiver
Black
Red
Black
Red
Red
To Next Valve
2.50”
1.50”
7/8” Wide
To a Ground Rod
(Customer Supplied)
To field wires
Connection
Rod
Rod
Install Every 200-300 ft. along the 2 wire path
