LogicPLUS-S Two-Wire Controller
38
38

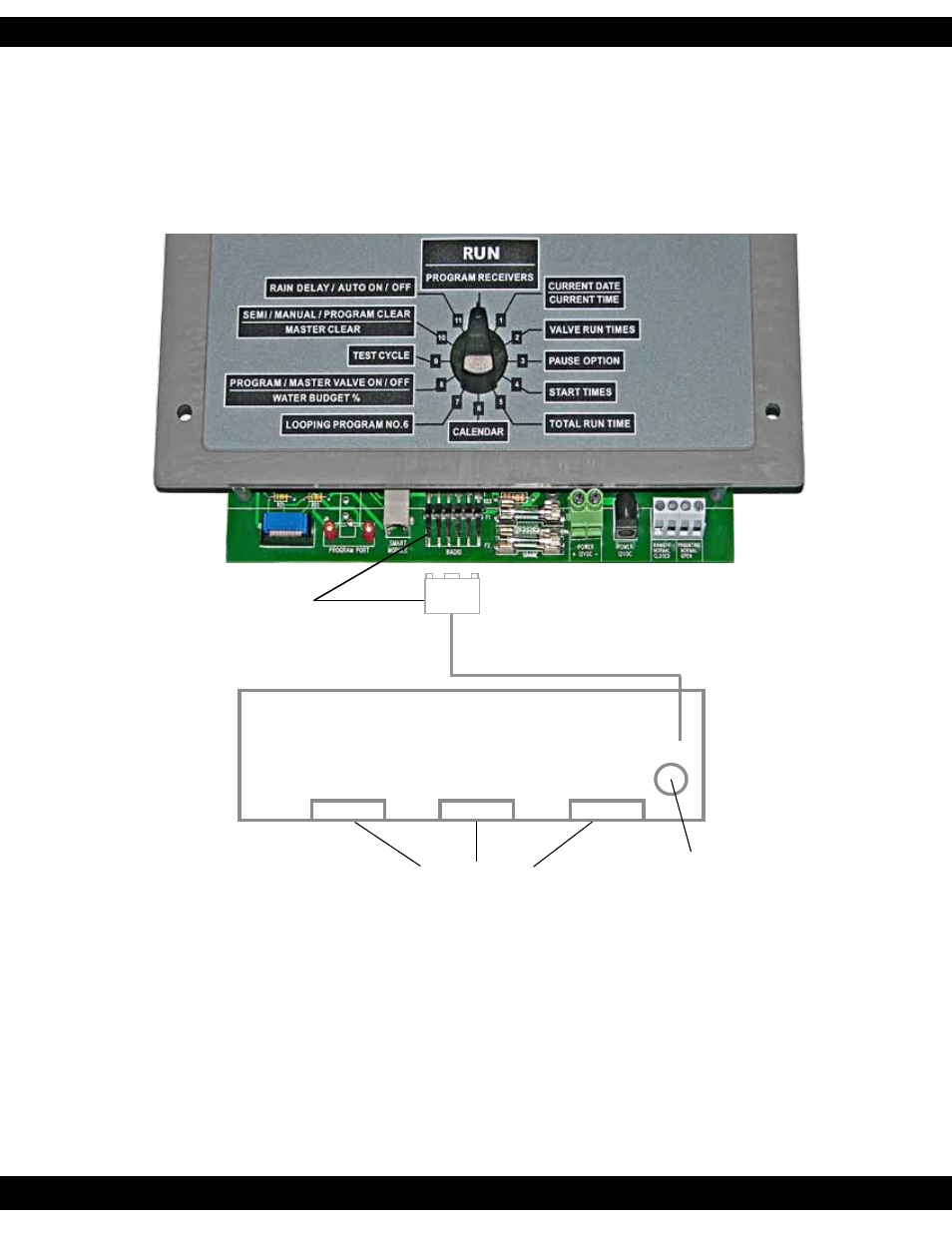

LogicPLUS-S Wiring diagram For Remote
Control Technology interface
ADDRESS SWITCHES
ANTENNA JACK
Locking Tabs UP
R.F. INTERFACE
WIRING INSTRUCTIONS
1. Turn off Power.
2. Remove the Logic face plate and stainless steel panel
3. Mount the antenna bracket utlizing the holes in the Logic stainless steel cab ( upper right hand side or top ).
See Remote Technology’s antenna mounting directions.
4. Connect antenna leads.
5. Using the double backed tape, mount the receiver card directly to the stainless steel cab. Locate properly
to leave access to the address switches .
6. Connect antenna lead to ATENNA JACK.
7. Connect R.F. Interface Cable. Observe Polarity Locking Tabs - Up Positions.
8. Reinstall front panel.
9. Apply Power.
LOGIC PLUS-S WIRING DIAGRAM FOR REMOTE CONTROL TECHNOLOGY INTERFACE
Locking Tabs UP R.F. INTERFACE
