LogicPLUS-S Two-Wire Controller 19

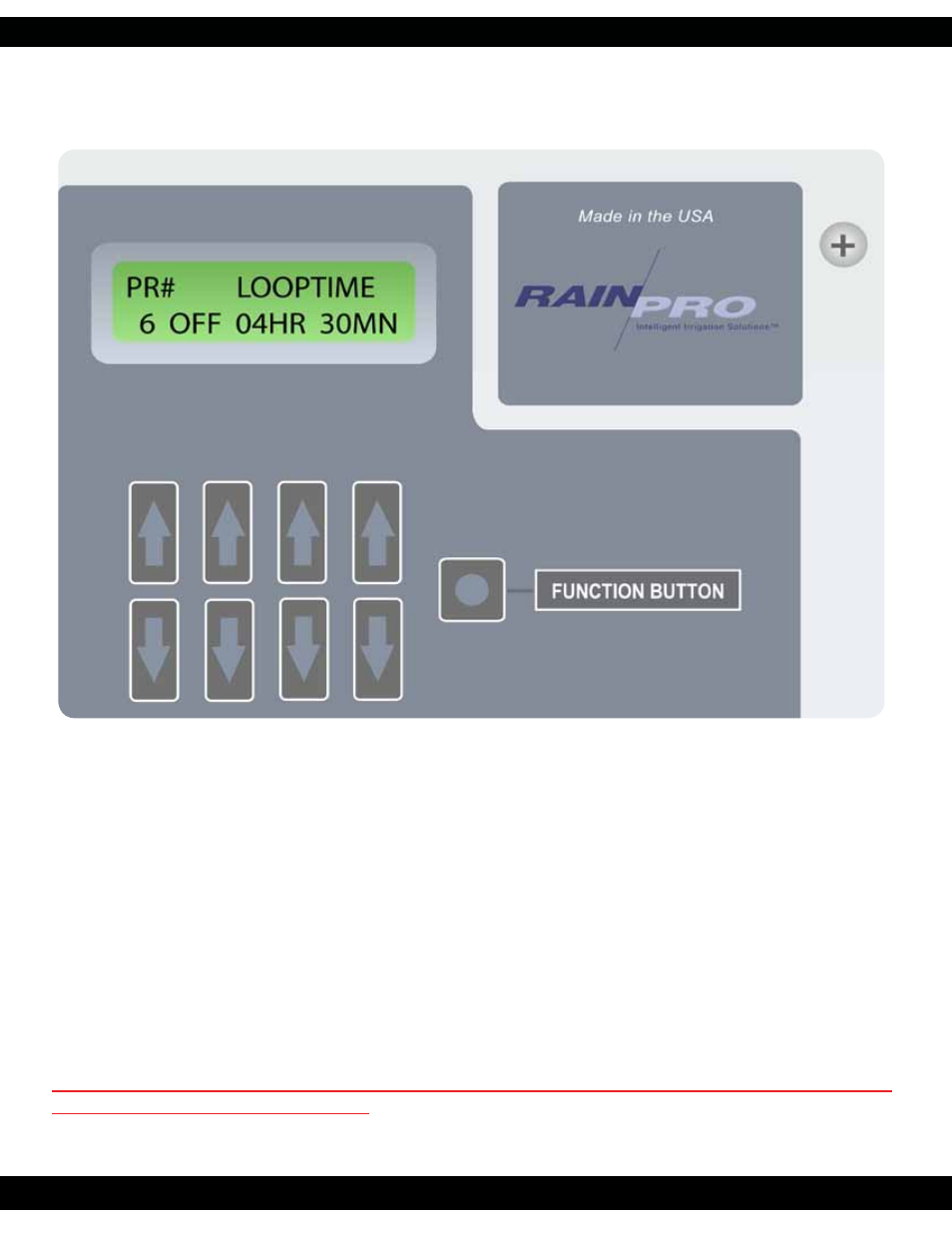

Position 7 | | Looping Program No. 6 | | Function Button- Security Password
Any valve run times and start times set in program 6 can be looped if desired. There must be individual
run times for each desired valve and ONE start time in program 6 for looping to be activated. Use set 3
and set 4 to establish the total amount of loop time desired. Use set 2 to turn looping feature ON or OFF.
hints for using Looping: Looping will run a program continuously for the amount of time set in posi-
tion 7 looping. For example: If looping is set for 6 hours and the start time is 8:00 am, program 6 will
start at 8:00 am and run for 6 hours. A new lawn can be irrigated for 5 minutes every hour by doing the
following. Valves 1, 2 and 3 operate the new lawn, set run times for 5 minutes each on valves 1, 2 and
3, then go to a valve that is not being used and set run time for 45 minutes. You want to irrigate from
10 am until 5 pm. Set start time for program 6 at 10:00 am and go to position 7, set loop for 7 hours
and turn looping ON. The program will start at 10 am and run valve 1 for 5 minutes, then valve 2 for 5
minutes and then valve 3 for 5 minutes and then the valve that is not being used for 45 minutes and
then back to valve 1 and so on until 7 hours runs out, which will be 5:00 pm.
Caution! if operating with a pump, the 45 minutes will cause “dead heading” on the pump and
may damage the pump or pipelines.
Position 7
