LogicPLUS-S Two-Wire Controller

Programmable Receiver number identification Tags

Hit Products has developed a user friendly, flexible means to identify the number of the field pro-

grammed receivers during the receiver programming process. Inside every box of programmable

receivers, you will find one set of identification tags numbered 1-128. You will use these receiver

identification tags as follows:

1. Every time a receiver is programmed, find the corresponding numbered identification tag and

immediately attach to receiver.

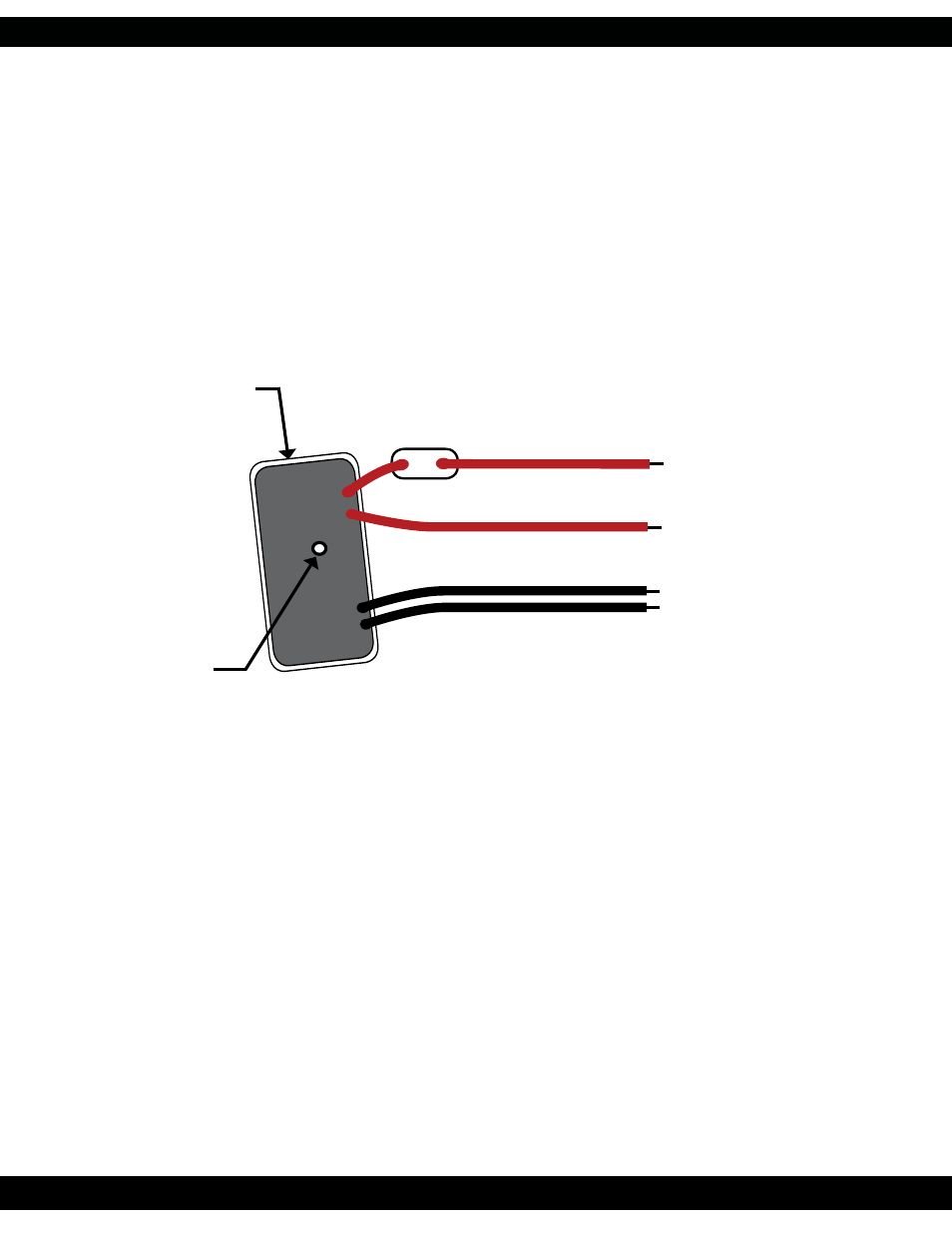

2. To attach identification tag to receiver, insert one red receiver wire into the hole (from front to back)

to the left of the appropriate numbered tag as you are looking at the number. Pull red wire all the

way through the hole until identification tag is approximately one inch from body of receiver.

note: This will leave the engraved number unobstructed by the wire.

3. Insert same end of same red wire back through hole (from back of tag towards front) and continue

to pull wire through until tight. The number on the tag should now be readily visible and the red

wire positioned on back (blank side of tag). See above.

4. Should receiver ever be reprogrammed to a different number, make sure to replace the

identification tag with the appropriately numbered identification tag. Failure to do so can

create extreme confusion!

RED

BLACK

LED

RECEIV-
