LogicPLUS-S Two-Wire Controller
22
22

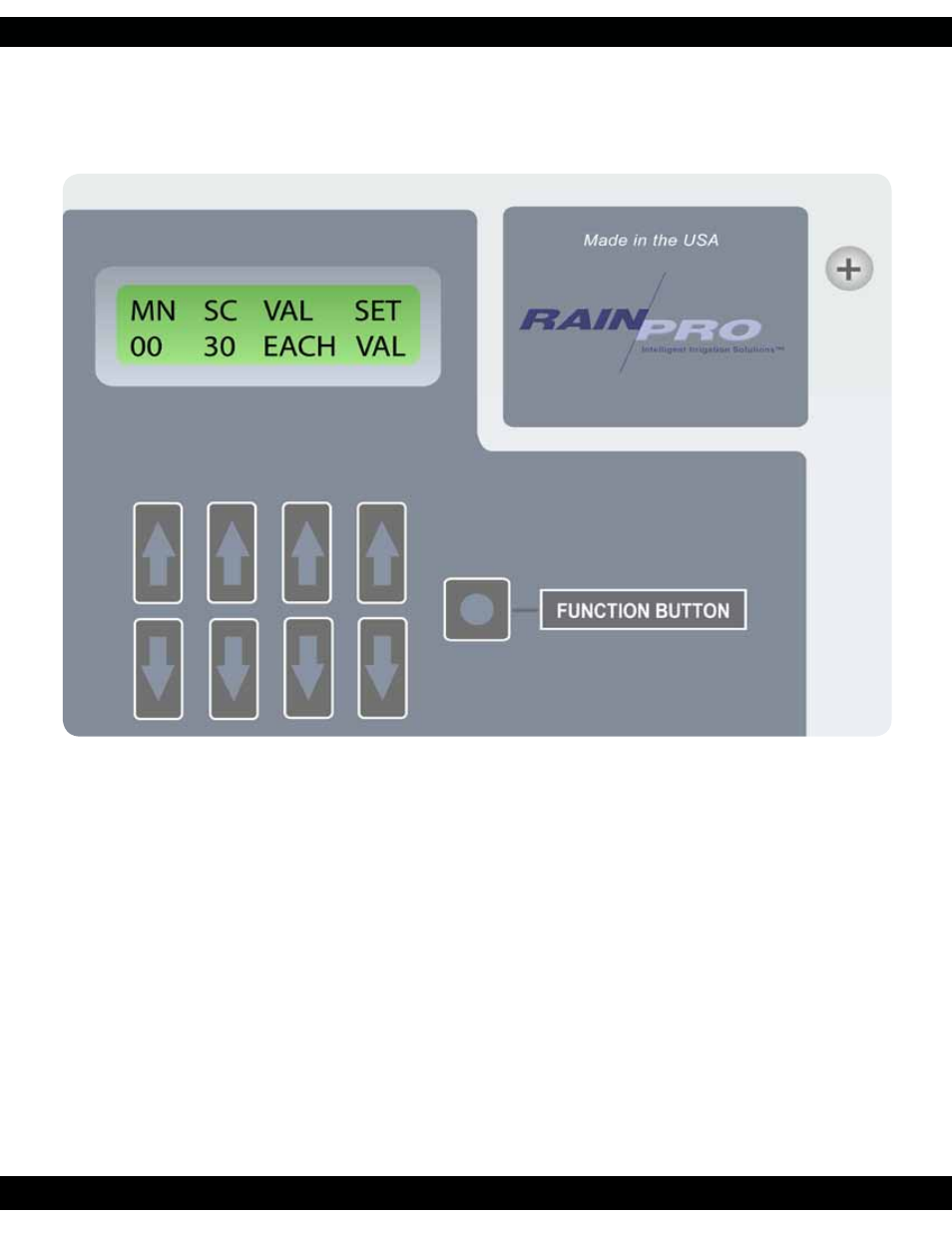

Position 9 | | Test Cycle | | Function Button - Short Test
Use set 1 to set run times in minutes, use set 2 to set run time of seconds for test cycle, set 3 has no
response, and use set 4 to select valve range to test, display will change, use set 1 or set 2 to select
valve range start and end, use set 3 to select Master A, B or C if required, use set 4 to start test cycle,
press set 4 again to stop test cycle.
The controller will immediately run each valve in sequence for valve range and predetermined run
time for visual review of the system operation.
note: The pause setting in position 3 for program 1 will determined the amount of pause
between stations during the test cycle operation.
Use set 5 Function Button to perform a short test.
Short Test
This feature to be used for troubleshooting. See page 32.
Position 10 | | Semi / Manual / Program / Master Clear | | Current Monitoring Special Function
Position 9
