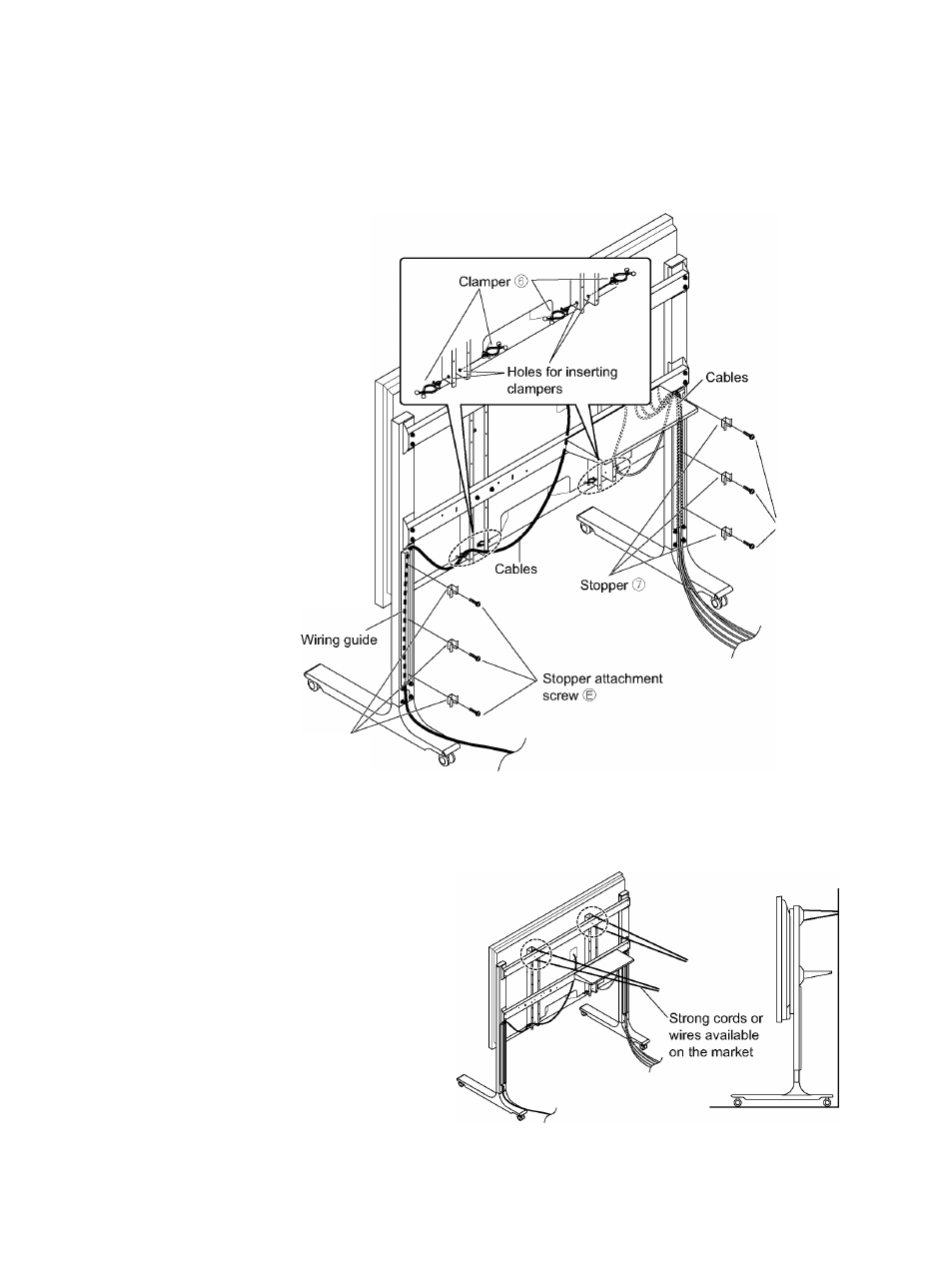

4. Wiring

Insert the clampers ® (4) to

the side of the lower part of the

mounting brackets (right/left).

Wire the cables by inserting
them into the wiring guides on
the back of the right and left
support columns. Then attach
the stoppers ® (6) to the wiring

guides with the stopper attachment
screws © (6).
Each of the right and left wiring
guides has 6 screw holes for the
stopperattachment screws. Use
the screw holes appropriate for

yourwiring.

(Tightening torque: 1.2 to 1.5 N-m)

Do not bundle the connection cables

and main lead together.

"5)

»Stopper

Stopper ©

5. Preventing falling over

In order to prevent the unit from falling over, fix it
by passing strong cords orwires to the crossover
points (1 each on the right and left) of the mounting
brackets and the fitting (top), and connect them

without slack to sturdy pillars or walls.

(Use commercially available cord orwire to prevent

falling over.)
The distance between the pillar orwall and the rear

ofthe display must be1m (39.4 inches) or less.
