Assembly

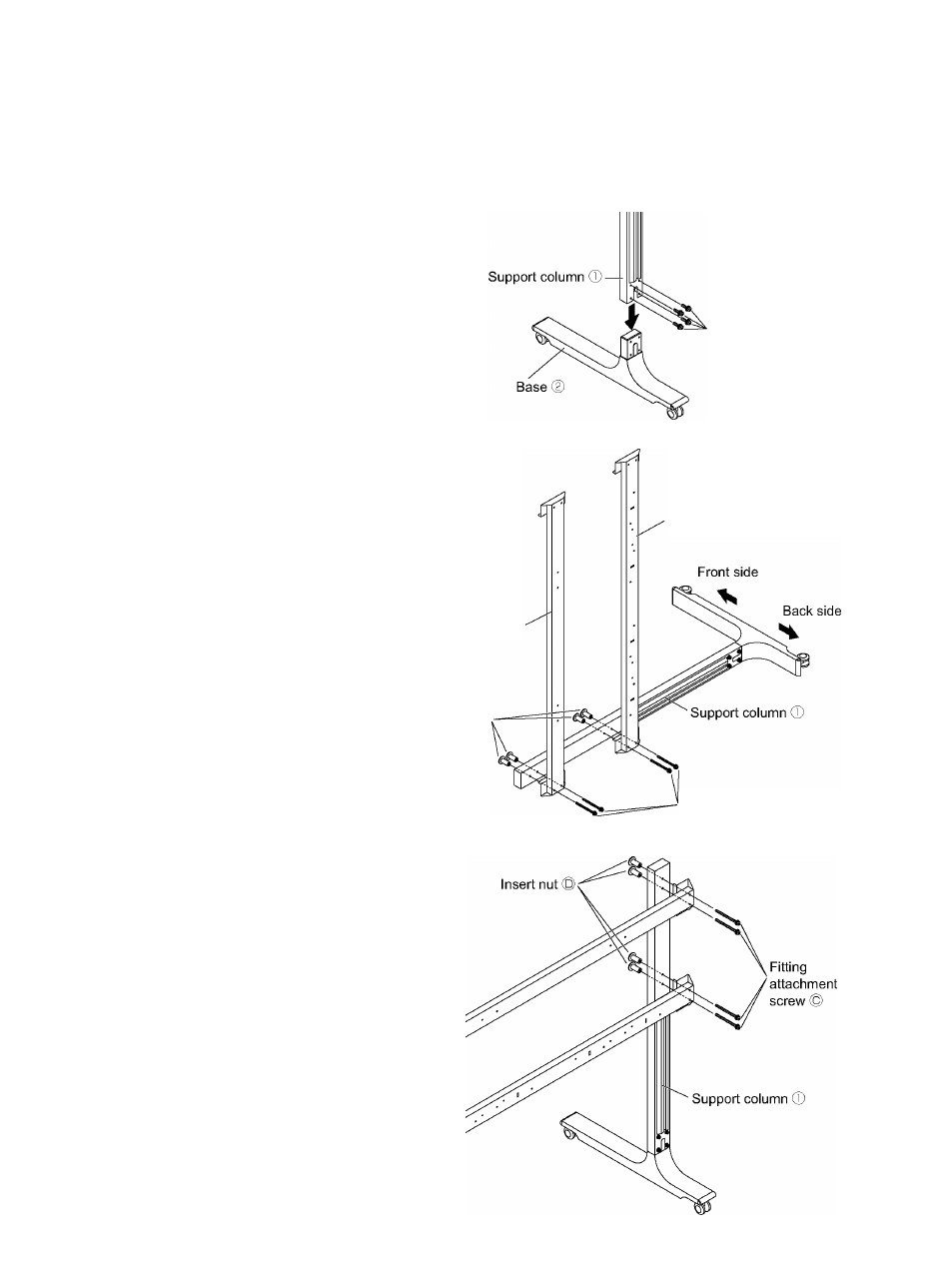

1. Assembling of the stand
1. Insert one support column © to the
base ® and fix it with the support column
assembly screws
®
(4). Assemble
the other support column in the same
procedure.
(Tightening torque: 1.8 to 2.2 N-m)
Support column
assembly screw
®
w
"5)
c
LU
2. Lay down the assembled support column
as shown in the figure, and to its back
side, fix the fittings (top/bottom) © with
the fitting attachment screws © (4) and
the insert nuts © (4).
(Tightening torque: 1.8 to 2.2 N-m)
Fitting (top) ©
Insert nut ©
Fitting (bottom) ©
Fitting attachment screw ©
3. Raise the support column and fix the
other support column © to the other side
of the fittings with the fitting attachment
screws © (4) and insert nuts © (4).
(Tightening torque: 1.8 to 2.2 N-m)
25
