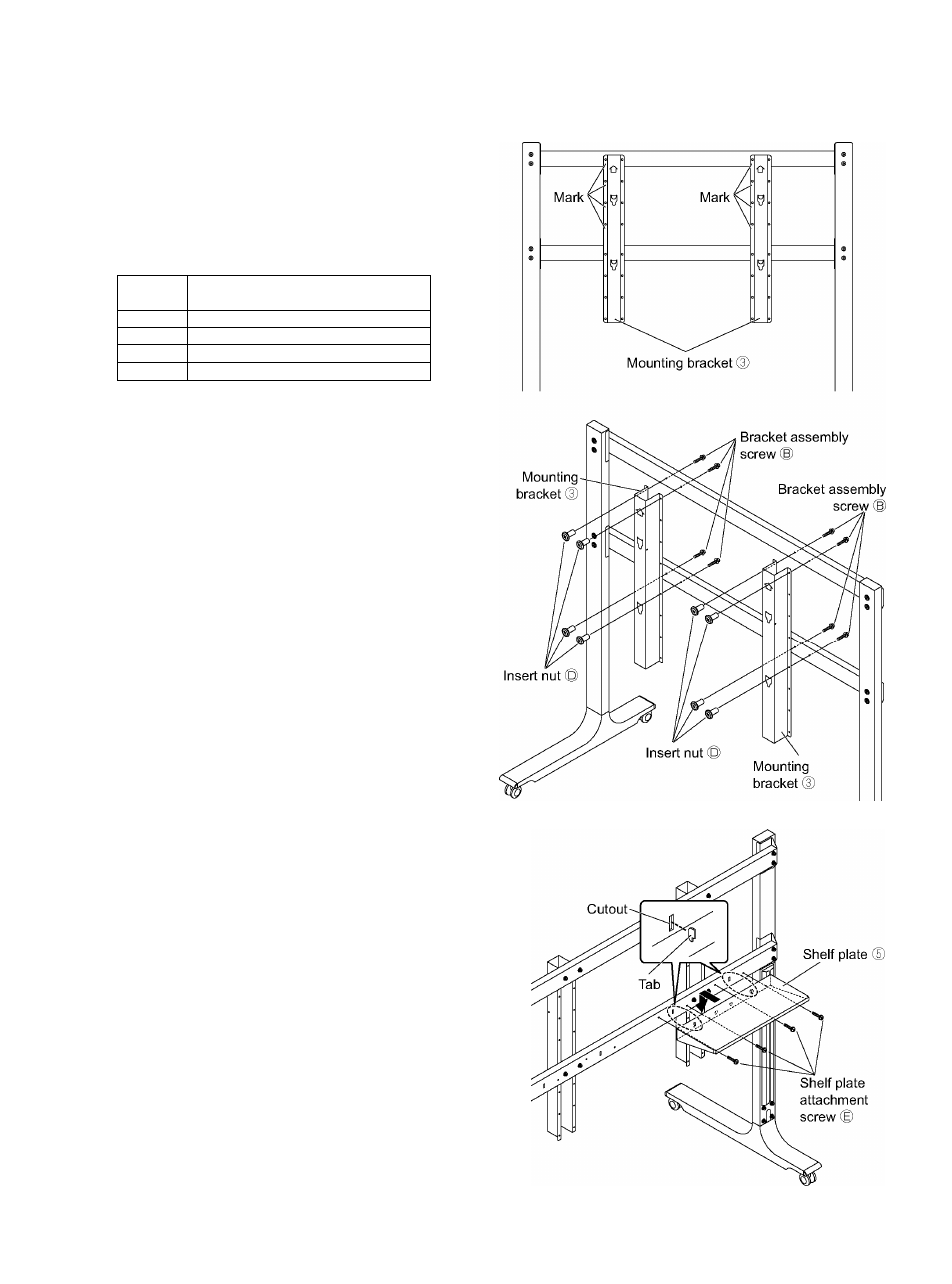

Assembly

"5)

4.£>et the display to the desired height by

selecting from the options (4).

From the table below, select the screw
holes for fixing the mounting brackets ®

to the fittings (top/bottom) ®.

Unit: mm

Mark

Center of screen

(Distance from the floor surface)

1047

1147

1247

1347

5. Using the screw holes selected in step 4,

fix the mounting brackets ® to the
fittings (top/bottom) ® with the bracket
assembly screws ® (8) and insert nuts @

(8).

(Tightening torque: 1.8 to 2.2 N-m)

6. Fix the shelf plate ® (1)to the back of

the bottom fitting with the shelf plate

attachment screws ® (4). (It can be
attached to either the right or left side.)

(Tightening torque: 1.2 to 1.5 N-m)
