Components

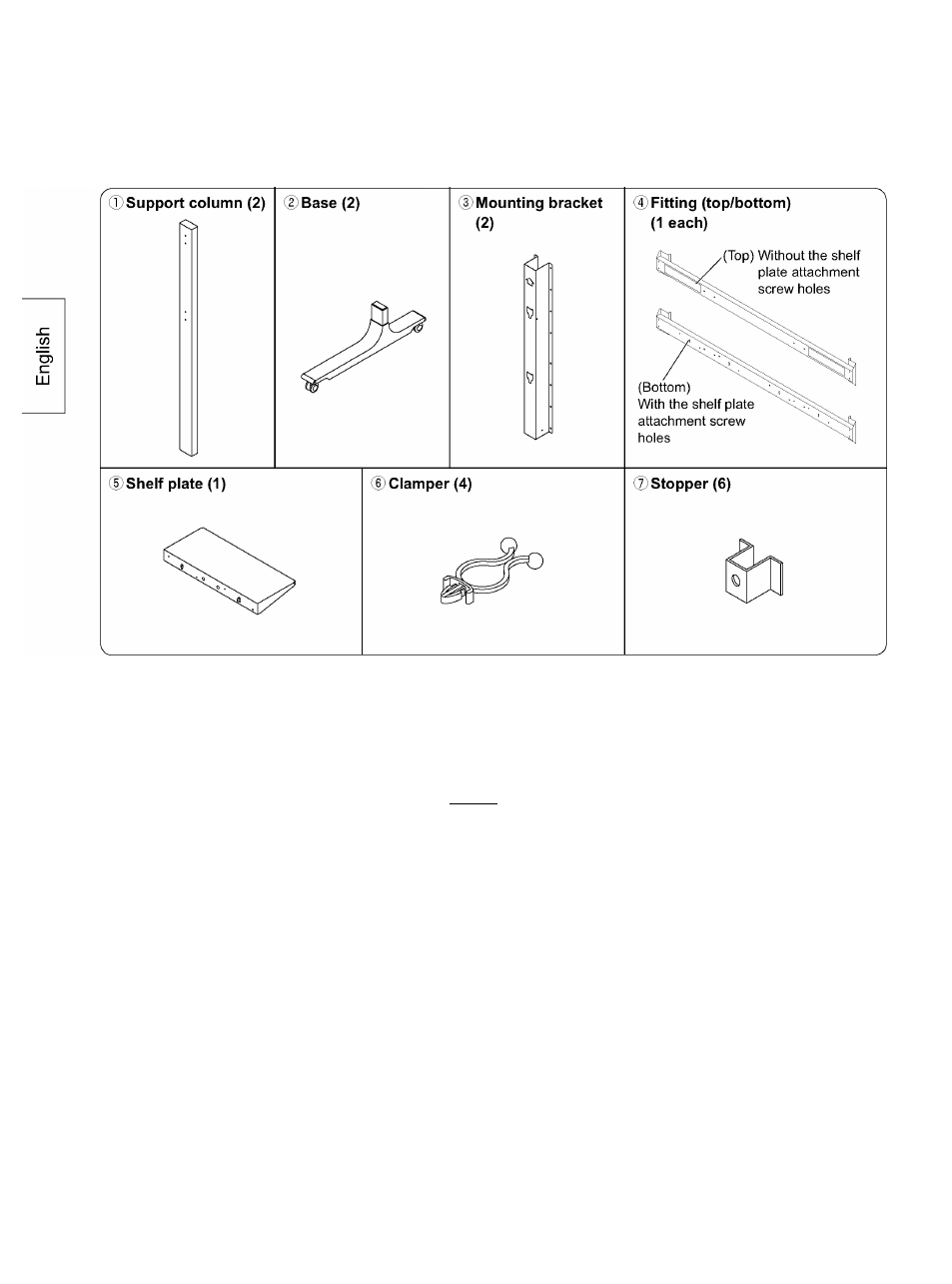

Main parts
Check that all the parts are accounted for and
present in their designated quantities.
Accessory parts
©Support column assembly
screw
(M6X16) (8)
Cllllfe
©Insert nut
(M6) (16)
® Bracket assembly screw
(M6 X 25) (8)
m m m
©Shelf plate attachment screw
(M4xi2)(4)
Stopper attachment screw
(M4X12) (6)
©Allen wrench (included tool) (1)
©Fitting attachment screw
(M6 X 65) (8)
©Allen head countersunk screw
Dished toothed washer
Insulation spacer
(4 each)
©Screw for securing unit
(M6 X 65) (2)
The images shown in this manual are for illustrative purpose only.
