If you click Confirm and Acuity displays the Room Number Unknown
Window, you have not typed in a room number. Do one of the following:
• Click Go Back to return to the
Patient ID Window, then type in a
room number.
OR
• Click Do Anyway to close the Room
Unknown Window. Acuity displays
the yellow RM icon to indicate that
no room number is assigned.
Acuity Map Icons After the Patient ID is Entered
The location of a Modem-Linked patient icon on the Acuity Map depends on how
your system administrator has configured your Acuity System. After you enter the
patient ID information, the Modem-Linked icon either “jumps” to the assigned room
location on the Acuity Map or it stays in the Modem-Linked Patients area, depending
on your Acuity configuration. If no room number is assigned to the patient, the icon
stays in the Modem-Linked Patients area.

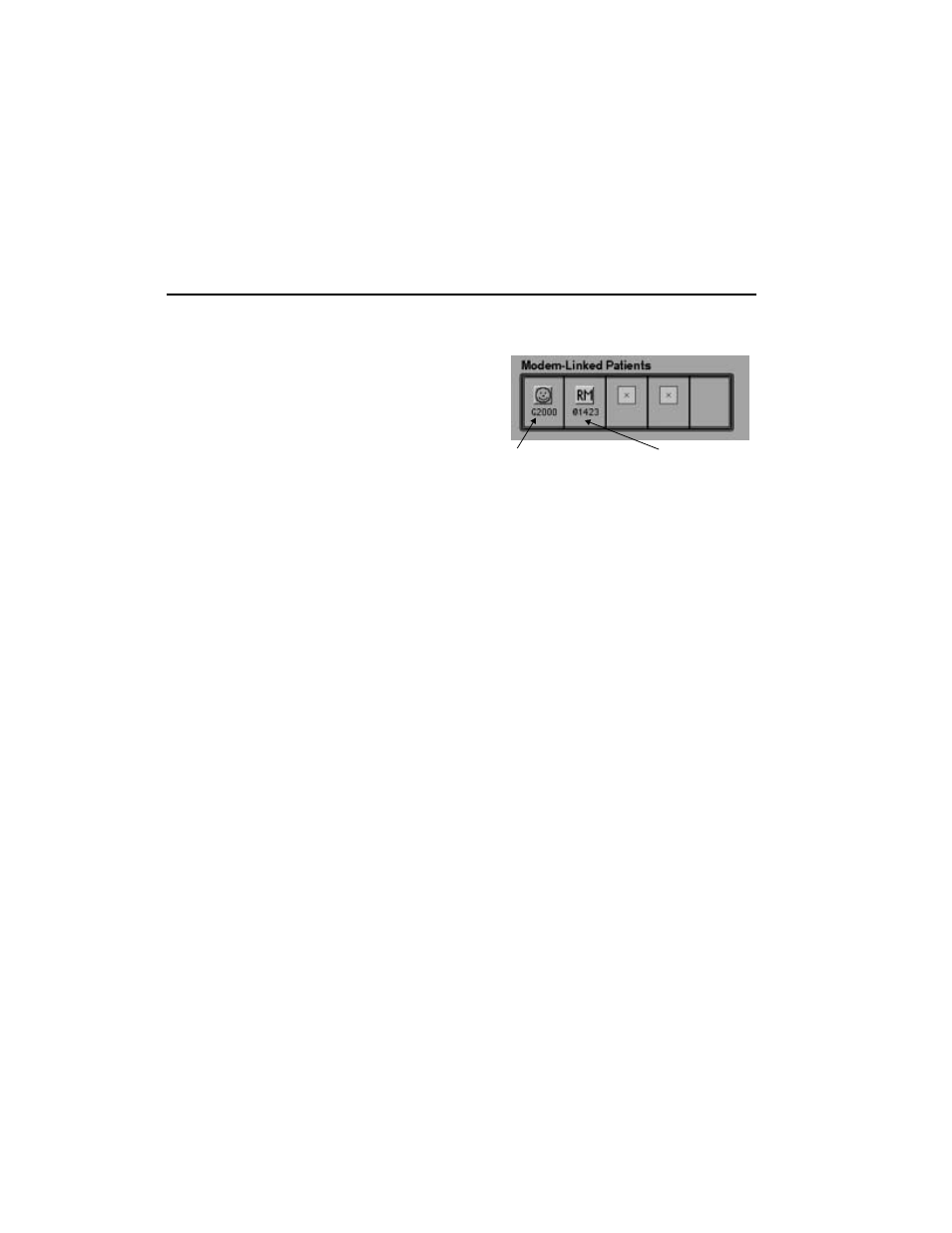

Since no room
number is
assigned to this
Modem-Linked
patient, the Acuity
port number is
displayed. Room number
G2000 is assigned.
This icon will “jump”
to Room G2000 on
the Acuity Map if the
“move icon” feature
is configured.
