QUICK REFERENCE GUIDE

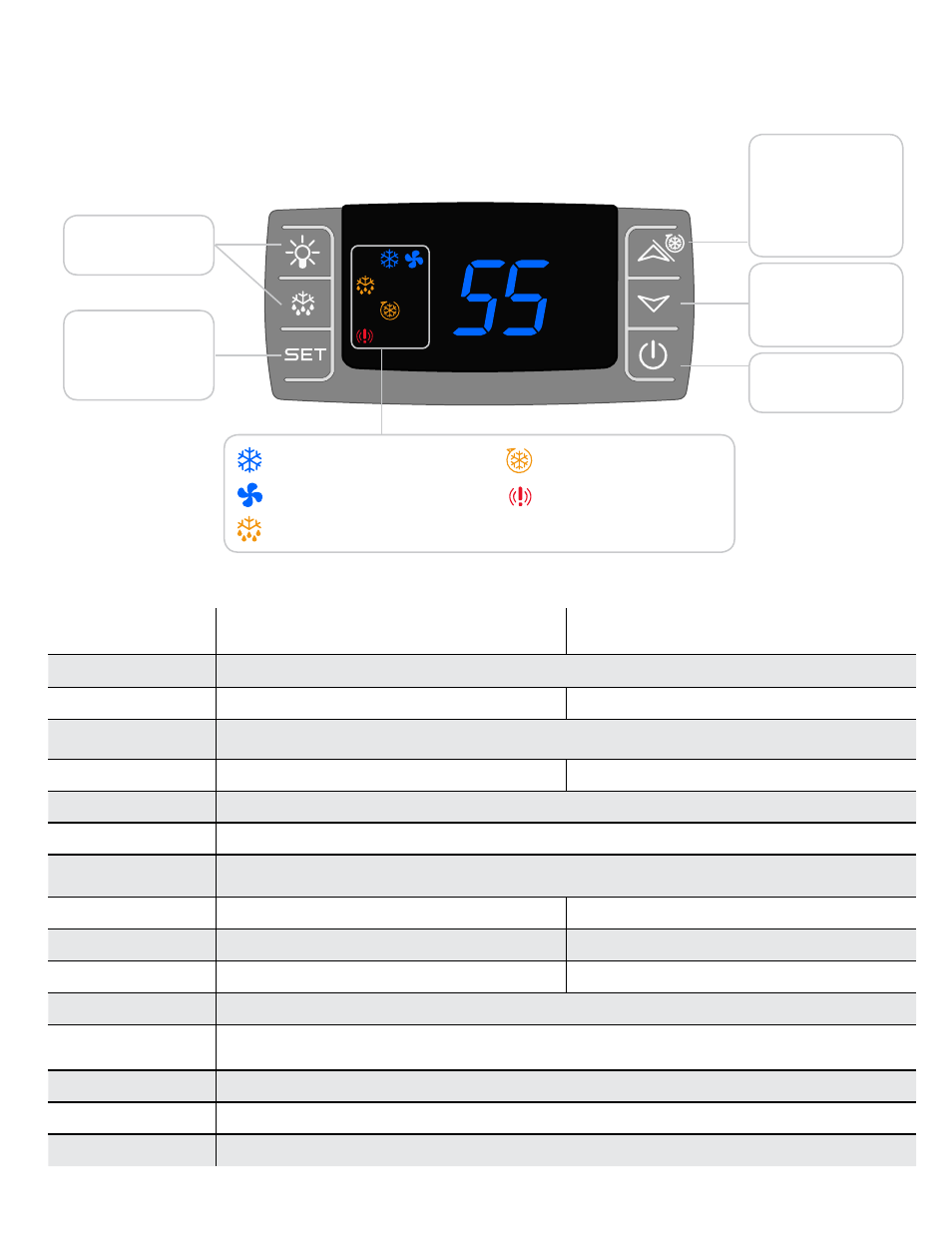

Controller Layout
Refer to page 44 for complete listing of buttons and symbols.
°
F
Compressor is On
Fans are On
Unit is in Anti-Frost Mode
Unit is in Pre-Chill Mode
Alarm is Present
°
F
°
F
°
F
°
F
°
F
View Set Point
Change Set Point
(Press and hold 3-5 sec)
Inactive
Power On/Off
Low Bottle Temp
History
Scroll Button
High Bottle Temp
History
Scroll Button
Cellar Pre-Chill
(Press and hold 3-5 sec)
CEILING MOUNT SPECIFICATIONS
Model
4000 Evaporator
(Fan Coil Unit)
4000 Condenser
(Air Cooled Condensing Unit)
Cellar Size (cu. ft.)
1000
Dimensions
35.75”L x 14.5”W x 12.65”H
16”L x 11.5”W x 10”H
BTUh with 90° air entering
the Condenser Coil
3650
CFM
321
190
Refrigerant
R-134a
Condensing Unit HP
1/3++
Voltage Rating
(20 amp
dedicated circuit required)
115V or 230V
Weight (lbs)
80
56
AMPS
(Starting/Running)
1.1
32.7/7.2
dBA
58.5
65
Drain Line
1/4” Condensate
Installation
Evaporator unit (fan coil unit) is installed through the cellar ceiling, condenser is installed up to
100 line ft. from the evaporator unit.
Thermostat
Digital Control Display
Temp. Delta
55°F max.
temperature differential between the cellar temperature and condenser air intake temperature.
Warranty
2-year parts and labor
