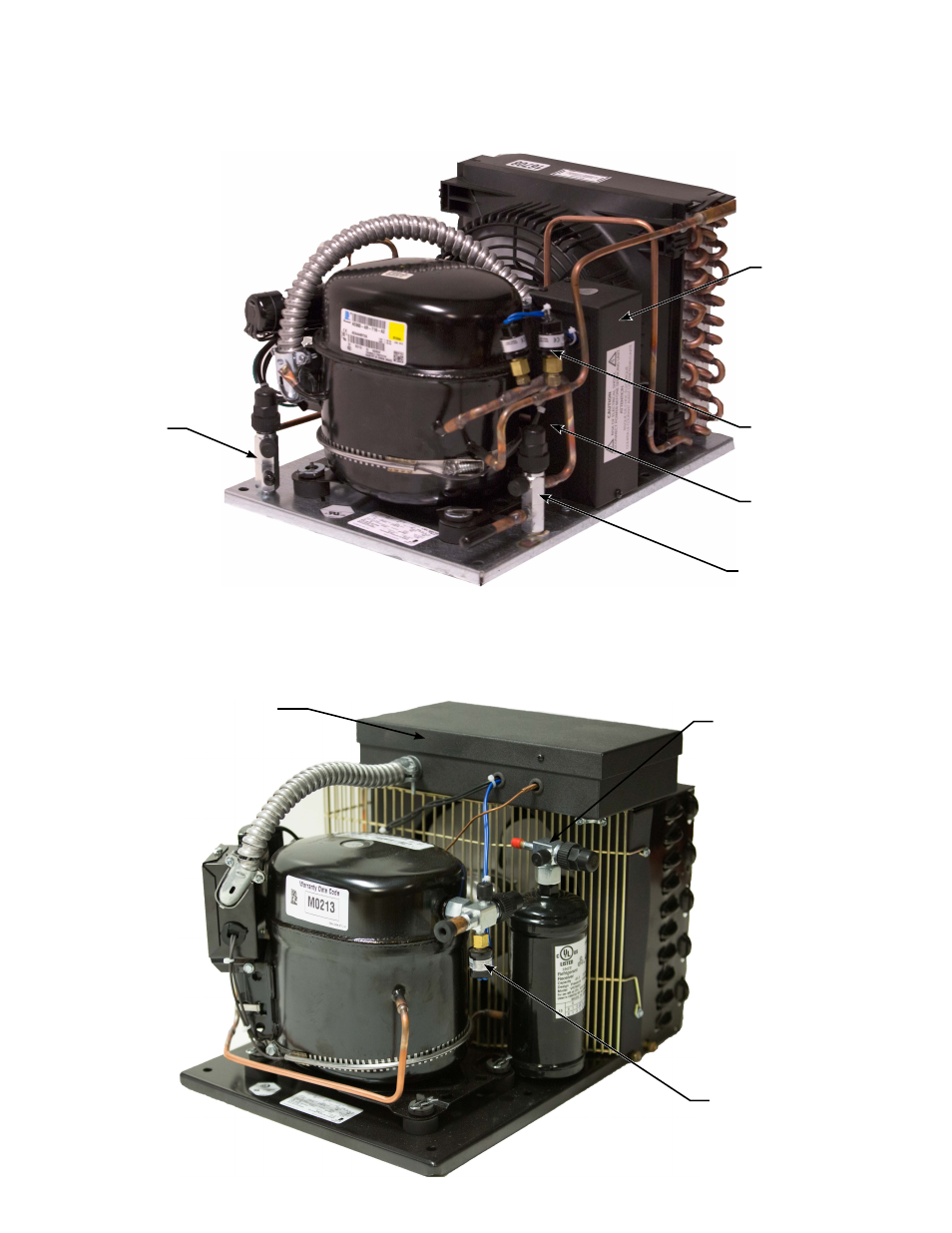

CONDENSING UNIT QUICK REFERENCE GUIDE
Suction Line Secure Valve
Ceiling Mount 8000 Condensing Unit
Ceiling Mount 4000 Condensing Unit
Low Ambient Control
(Inside Electrical Compartment)
Liquid Line
Service Valve
Low-Pressure Switch
Fan Cycling Switch
Cut Out: 75 psi
Cut In: 120 psi
Electrical Box
Low Pressure Switch
Cut Out: 5 psi
Cut In: 20 psi
Suction Line
Service Valve
