Page 14 | 1-800-343-9463

WCM

033114

INSTALLING THE EVAPORATOR UNIT (TYPICAL INSTALLATION)

ITEMS TO ROUTE BEFORE INSTALLING THE EVAPORATOR
1.

Route the line set from the condensing unit to the desired evaporator installation location.

2.

Route the keypad cable from the desired keypad location to the evaporator installation location (see page 26 for

more keypad information).

3.

Route the bottle probe cable from the desired thermostat bottle location to the evaporator installation location

(see page 25 for more bottle probe information).

4.

If you have purchased a unit with the Active Humidity Option, route the water line from the water source to the

evaporator location (see page 27 for more Active Humidity Option Information).

5.

If you have purchased a unit with the Active Humidity Option, route the humidistat cable from the desired

humidistat location to the evaporator installation location (see page 28 for more Humidistat Information).

6.

Route the drain line from a proper discharge location to the evaporator installation location (see page 24 for more

drain line Information).

7.

Route the power cable wiring to the evaporator installation location.

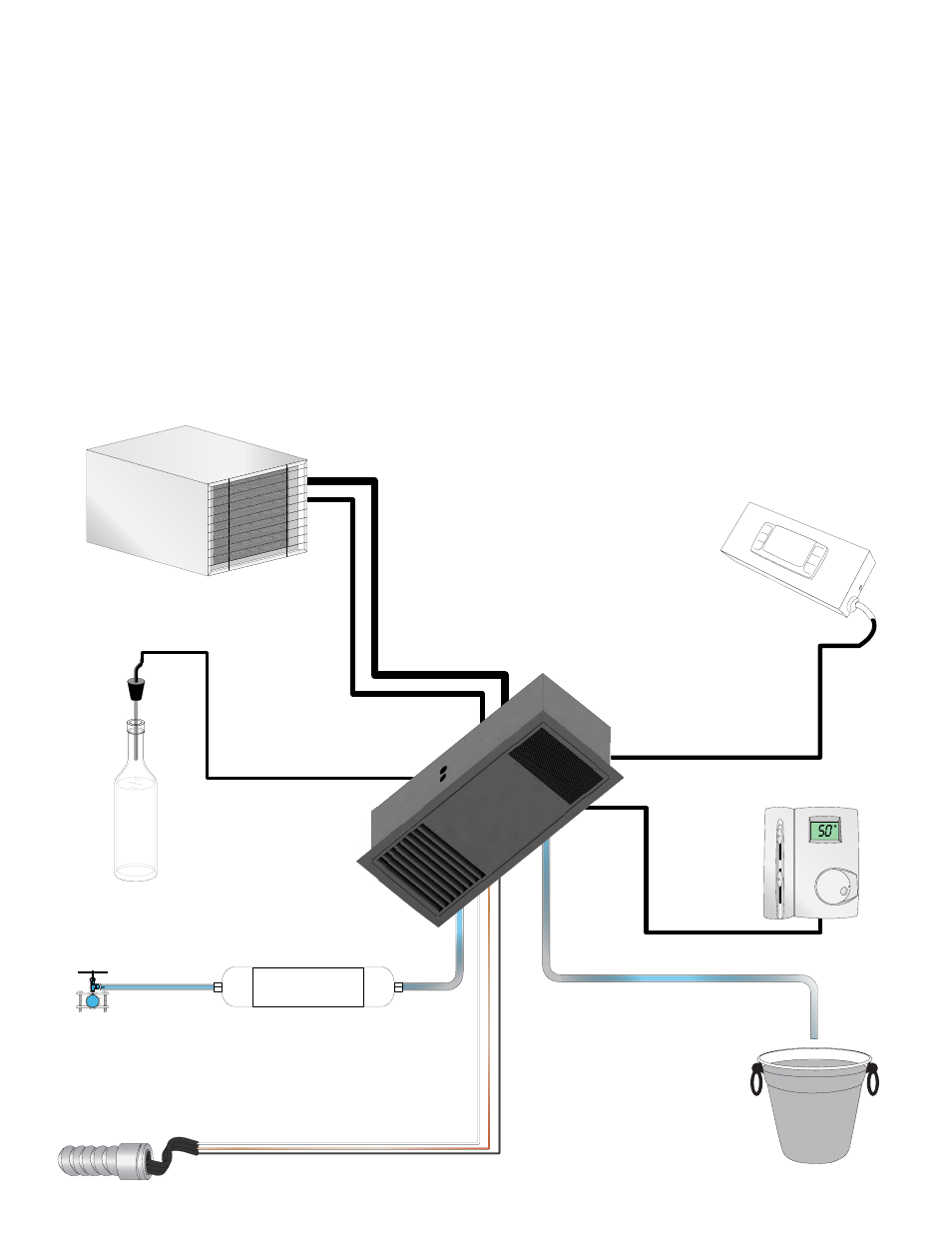

ITEMS TO ROUTE

FAN

HI

MED

LOW

HU-

MID

O F F

D E -

HUM

30

40

50

60

70

80

90

%

FILTRATION SYSTEM

WATERLINE

POWER CABLE

DRAIN LINE

HUMIDISTAT

CABLE

For units equipped with the

Active Humidity Option

For units equipped with the

Active Humidity Option

KEYPAD CABLE

BOTTLE PROBE

LINE SET
