220V CONNECTION FOR CEILING MOUNT EVAPORATOR UNIT
1.

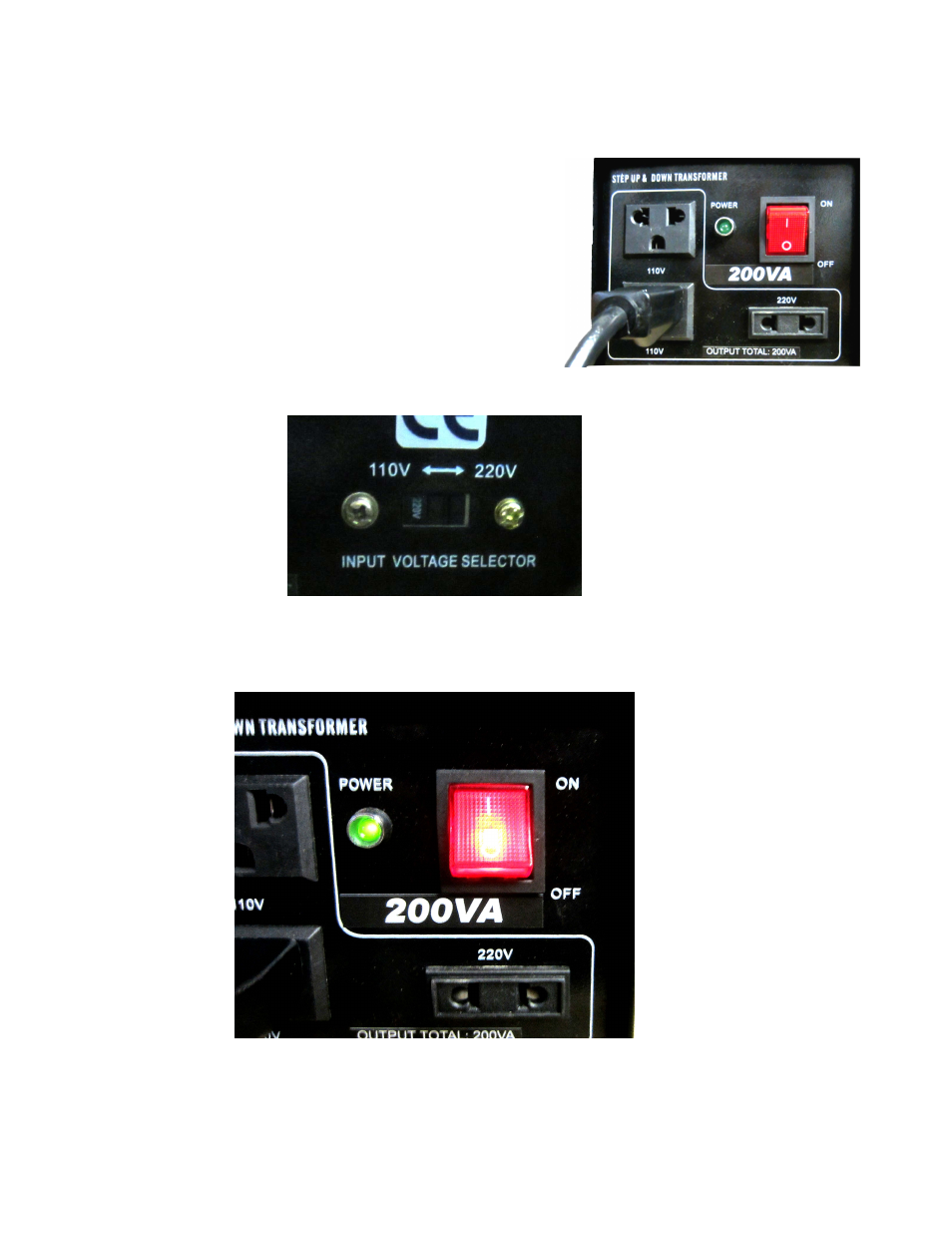

Connect the supplied power cord with the exposed wire ends
to the evaporator unit following the wiring instructions in this
Owner’s Manual.
2.
Plug the power cord into one of the outlets labeled 110V on the
transformer.
3.
On the back of the transformer make sure that the switch is set to 220V.
4.
Plug the transformer in to a 220-230V power source.
5.
To apply power to the unit move the switch on the front of the unit to the “on” position.
NOTE: These Instructions are only for units equipped with the 220V option selected at time of purchase.
