INSTALLING THE UNIT FROM INSIDE THE CELLAR
NOTE: The Ceiling Mount Unit can still be used even with limited or no above ceiling access. For installations with
limited or no above ceiling access, do not remove the top of the evaporator unit. Follow the instructions below for
installation.

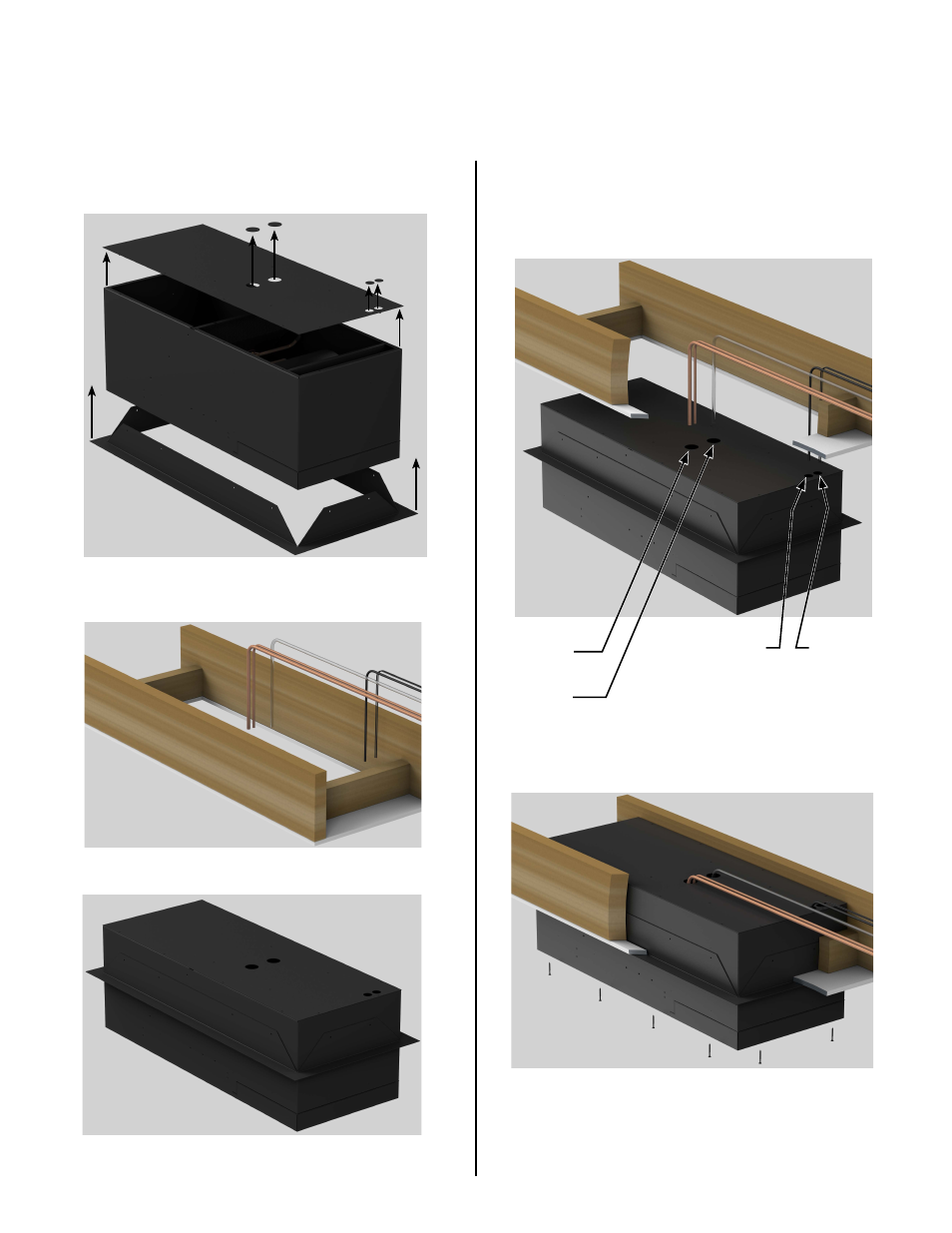

1.
Remove the knockouts from the top of the unit for
the line set and electrical.
2.
Route all electrical and tubing to the installation
location as outlined on page 14.
4.
Route the line set, drain line, water line, power wires,
keypad cable, bottle probe cable and humidistat cable
into the evaporator housing through the knockouts
removed in the first step.
Note: Depending on installation location, the Flush Mount
mounting option might not be suitable.
5.
Mount the evaporator unit to the ceiling using the
supplied 1 ¾” hex head screws.
3.
Install the mounting bracket as shown on page 17.
LINE SET
DRAIN LINE
POWER CABLE
WIRING
KNOCKOUT
BOTTLE PROBE &
KEYPAD WIRING
KNOCKOUT
