Installing the unit from inside the cellar – Vintage Cellars Ceiling Mount User Manual
Page 24
Page 22 | 1-800-343-9463
WCM
033114

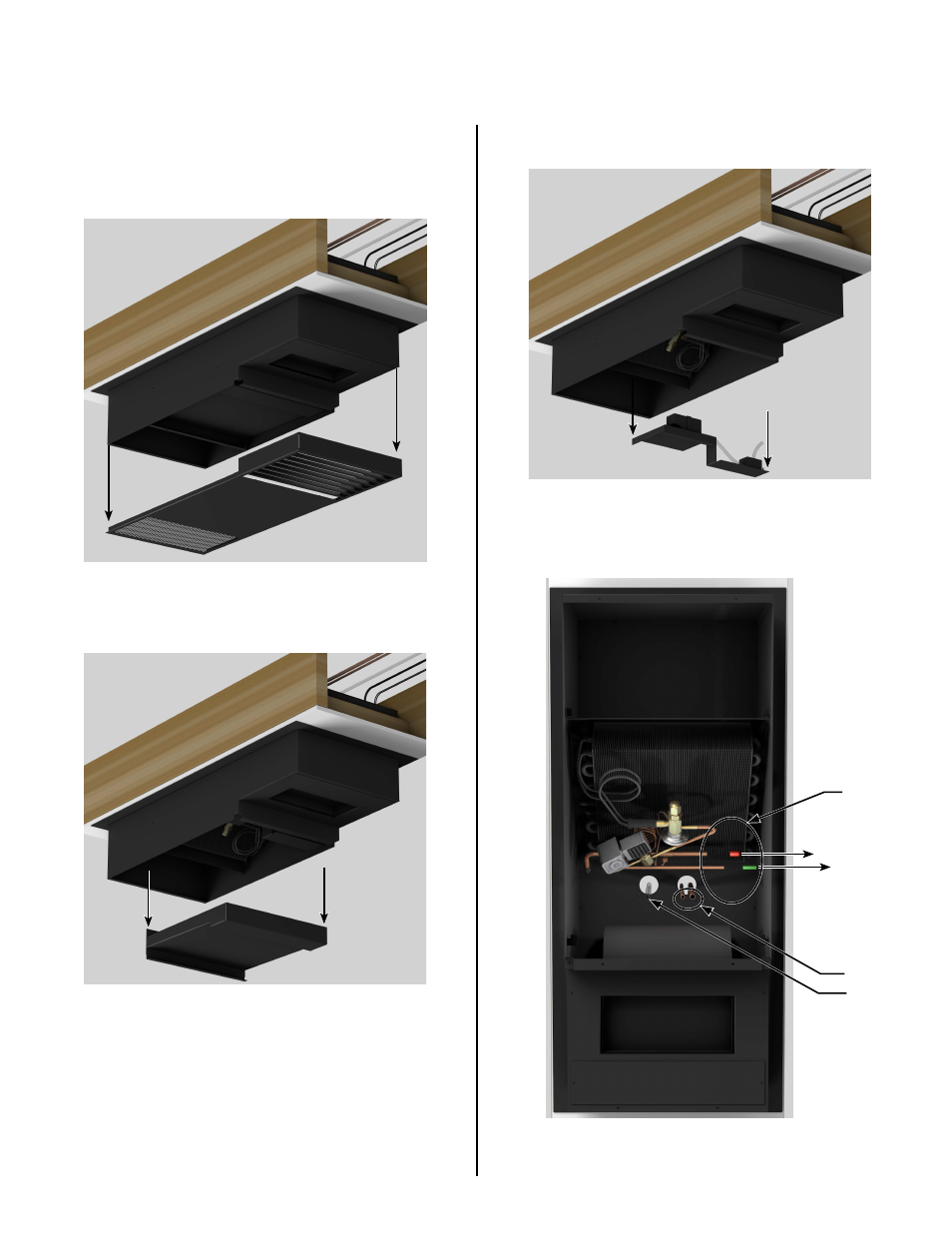

INSTALLING THE UNIT FROM INSIDE THE CELLAR
6.
Remove the eight screws securing the supply/return air
grille.
7.
Grasp the grille and pull straight down. This will release
the grille from the ball studs.
8.
Remove the two screws holding the drip tray in place.
9.
Remove the drip tray.
10.
Remove the 3 nuts holding the pump bracket in place.
Pull the pump bracket down and of the way.
11.
Remove the protective caps on the end of the line set
connections.
PROTECTIVE
CAPS
DRAIN LINE
LINE SET
