9/16"
TOWARDS
GUTTER
HP-10 CLIPS USED ON VERTICALS
OF 1" SYSTEM.
HP-8 CLIP TO BE USED ON
HORIZONTALS OF 1" SYSTEM
AND TYPICALLY ON 1/4"
SYSTE M.
RUN SEALANT ACROSS
FACE OF MULL AND TOP
OF HORIZONTALS
HP175-FP-43 (1")
HP175-FP-47 (1/4")
HP225-FP-4 (1")
HP225-FP-7 (1/4")
BRIDGE
1) BED FACE OF MULL AND TOP OF HORIZONTALS WITH
SEALANT.
2) SET BRIDGE INTO PLACE. HOOK OVER DRIP LEGS
AND ROTATE INTO PROPER POSITION.
3) SEA L AND TOOL ACROSS FACE OF MULL AND
HORIZONTALS
4) SEAL CLIP POCKET AT EACH END OF BRIDGE
5) SEAL ABOVE AND BELOW DRIP LEG OF
HORIZONTALS
SEAL ACROSS FACE
OF BRIDGE AT
DRIP LEG
SEAL CLIP
POCKET AT EACH
END OF BRIDGE
1" DIVERTERS
HP175-FP-44/45
HP225-FP-5/6
BED IN SEALANT
AND SEAL TOMULL
AND HORIZONTAL
JAMB BRIDGE
GLAZING CLIPS SH OULD BE
LOCATED AT A MAXIMUM OF
12"O.C.
NOTE: CLIPS ARE NOT SYMMETRICAL,
INSTALL AS
SHOWN BELOW.
1/4" DIVERTERS
HP175-FP-43 MODIFIED
HP225-FP-7 MODIFIED
BED IN SEALANT
AND SEAL TOMULL
AND HORIZONTAL
CUT DIVERTER TO FIT
INTO POCKET TERMINATOR
AND NOTCH AS SHOWN
INTEGRAL DIVERTER

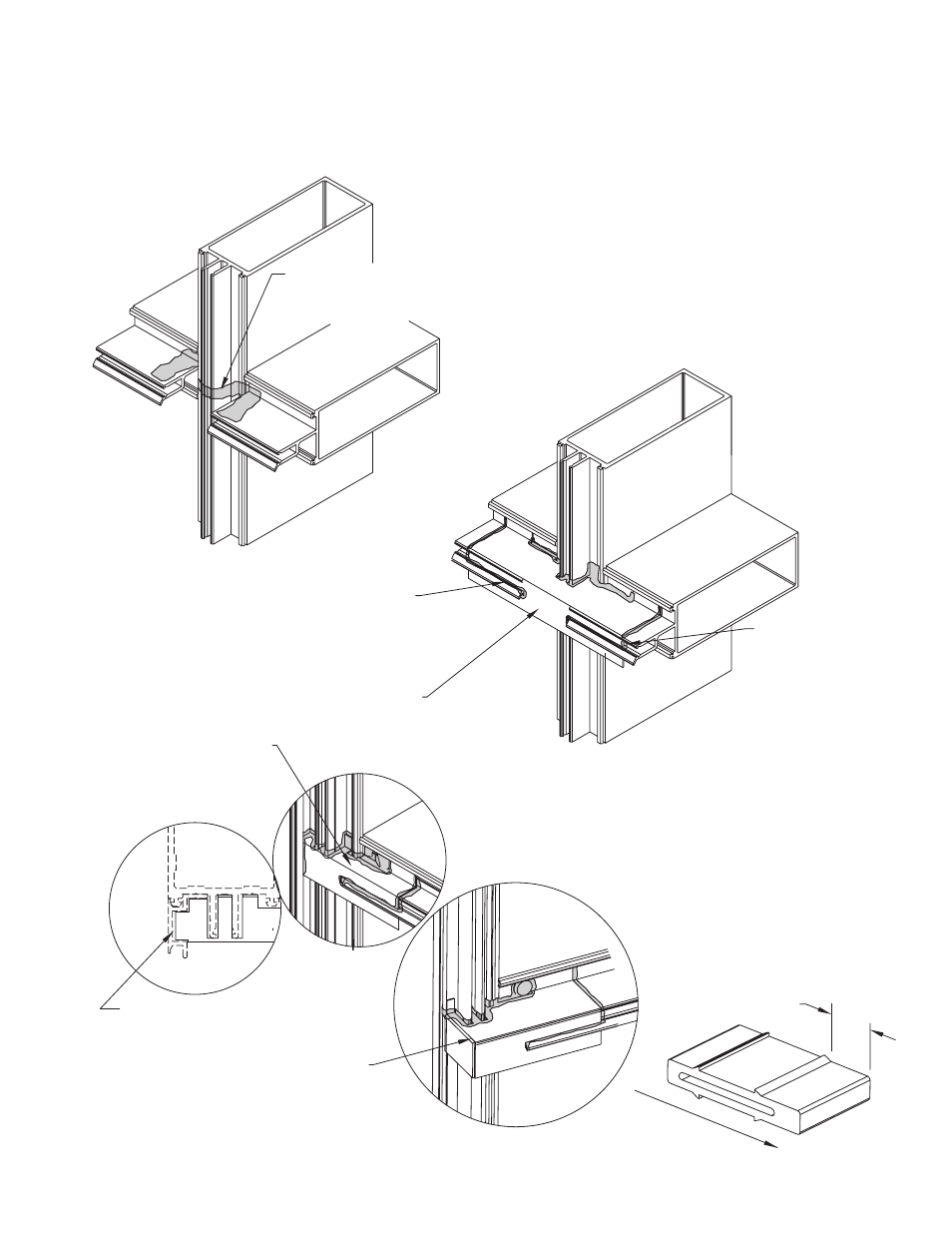

HORIZONTAL BRIDGE INSTALLATION
H P - 1 7 5 / 2 2 5 I N S T A L L A T I O N M A N U A L
9 


