Page 31

"A"

SECT "A-A"

ATTACH ANGLE TO

CORNER CLOSURE

AT HEAD & SILL

HP-10461 CORNER

CLOSURE. ATTACH W/

FS -6 (#10 X 3/4" PPH)

@ 18" O.C.

BED IN SEALANT

FORMED ALUM. CORNER

COVER. ATTACH W/

FS -7 (#10 X 3/4" PFH)

@ TOP & BOTTOMOF

COVER (MIN.)

NOTE:

REFERENCE STANDARD BUTT

GLAZEMULLION DRAWINGS FOR

ADDITIONAL INFORMATION

V2110 DSA TAPE

STRUCTURAL

SILICONE

AN-1 ANGLE

ATTACH W/ FS-6 @ 18" O.C.

WEATHER SEA L

HP175-FP-66

13/16"

7 9/16"

NOTE:

USE TYPICAL MULL CAPS AND

MODIFY SIMILAR TO JA MB CAPS.

(SEE SHEET #19)

THEN MARRY SEA L ACROSS MULL

CAPS AND ANGLES ATTACHED TO

CORNER CLOSURE.

USE STANDARD DIVERTER BRIDGE

AT HORIZONTALS.

MODIFY AND SEAL.

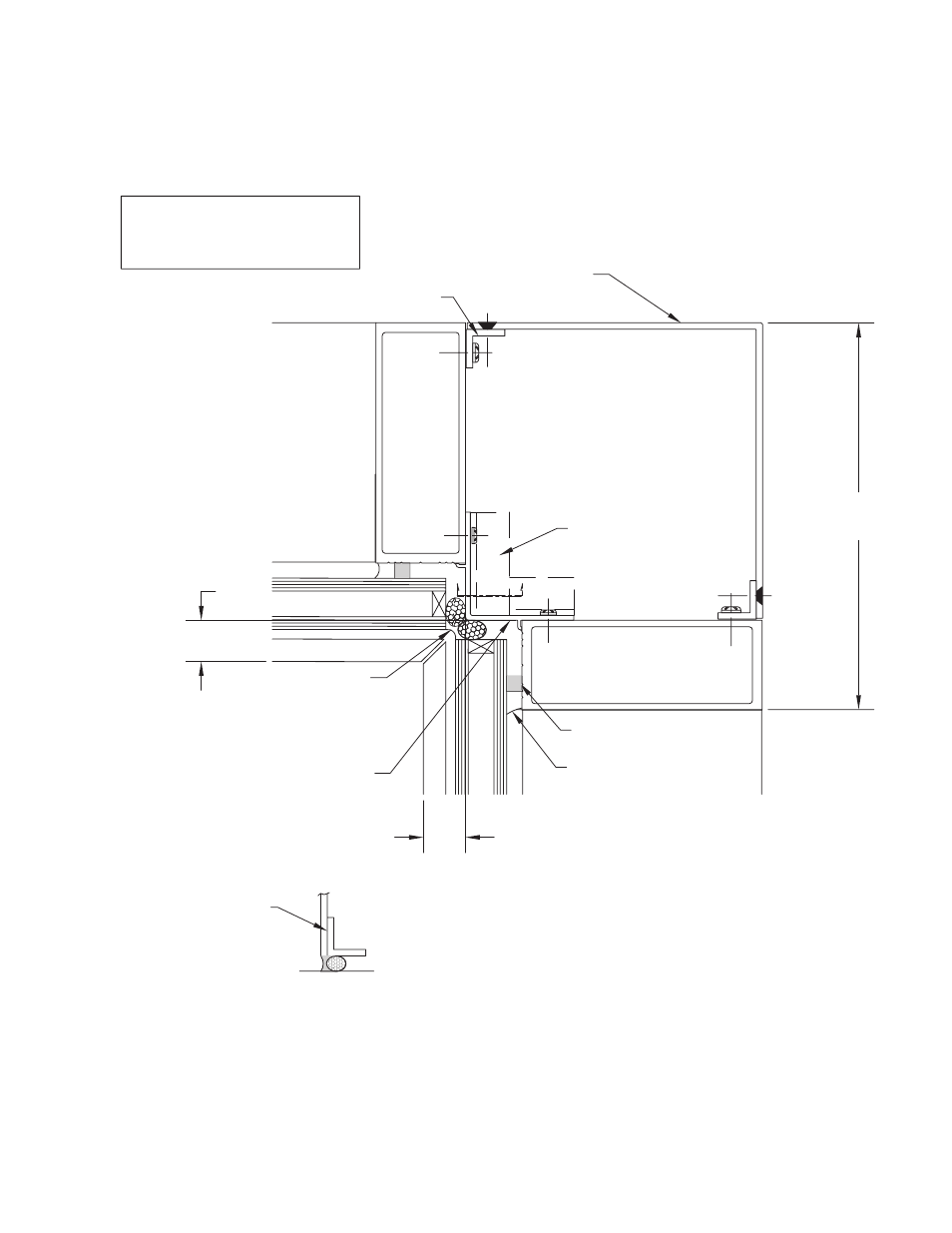

INSIDE 90°

BUTT GLAZE CORNER DETAIL

H P - 1 7 5 / 2 2 5 I N S T A L L A T I O N M A N U A L





