Page 29

INT. MULL COVERS

HP-175

HP-225

HP-10454 5 1/4"

HP-10455 6"

HP-20074 6 1/4"

HP-10456 6 3/4"

HP-20075 7"

1" MIN.

1 7/32"

HP175-FP-57 MULL CAP

@ SILL & HEAD

ATTACH W/ FS-23

(#6 X 3/8" PPH)

BED IN SEALANT

FS-43 (#12 X 3/4" PPH)

SET HORIZONTAL IN

SEALANT AT MULL CAP

SEAL FACE, TOP

& BOTTOM OF

SHEAR BLOCK

CUT SILL & HEAD

DLO - 1/16"

INTERIOR MULL

COVER. SEE CHART

BELOW

45˚

FAB NOTE:

SQUARE CUT HORIZONTAL

TO FACE OF GASKET RACE

AND MITER AT 45˚.

1 1/4"

CUT HORIZ. DLO

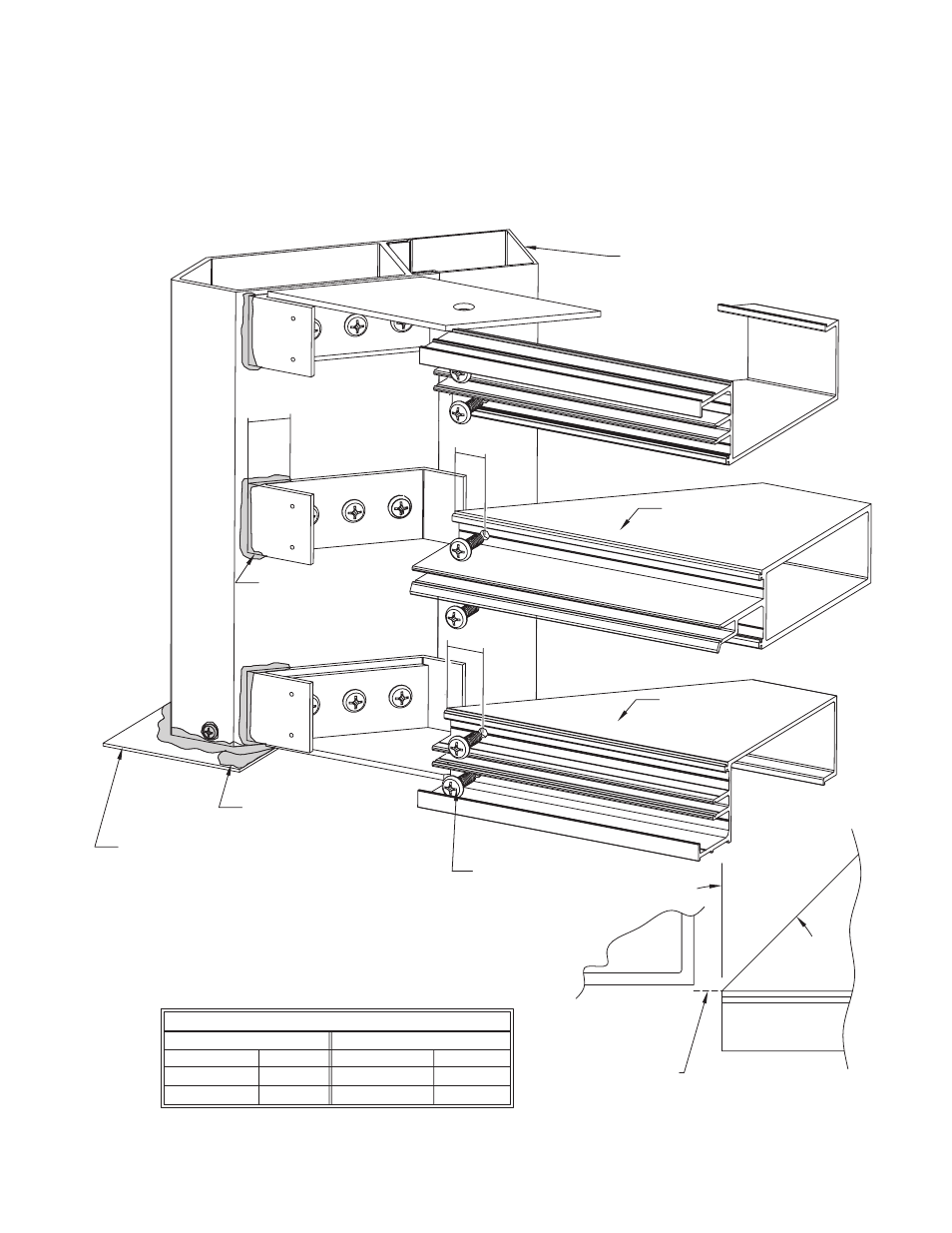

OUTSIDE 90°

BUTT GLAZE MULLION ASSEMBLY

H P - 1 7 5 / 2 2 5 I N S T A L L A T I O N M A N U A L





