Hp-175-225 30, Outside 90° mullion diverter & glazing detail – Oldcastle BuildingEnvelope HP-175 User Manual

Page 30

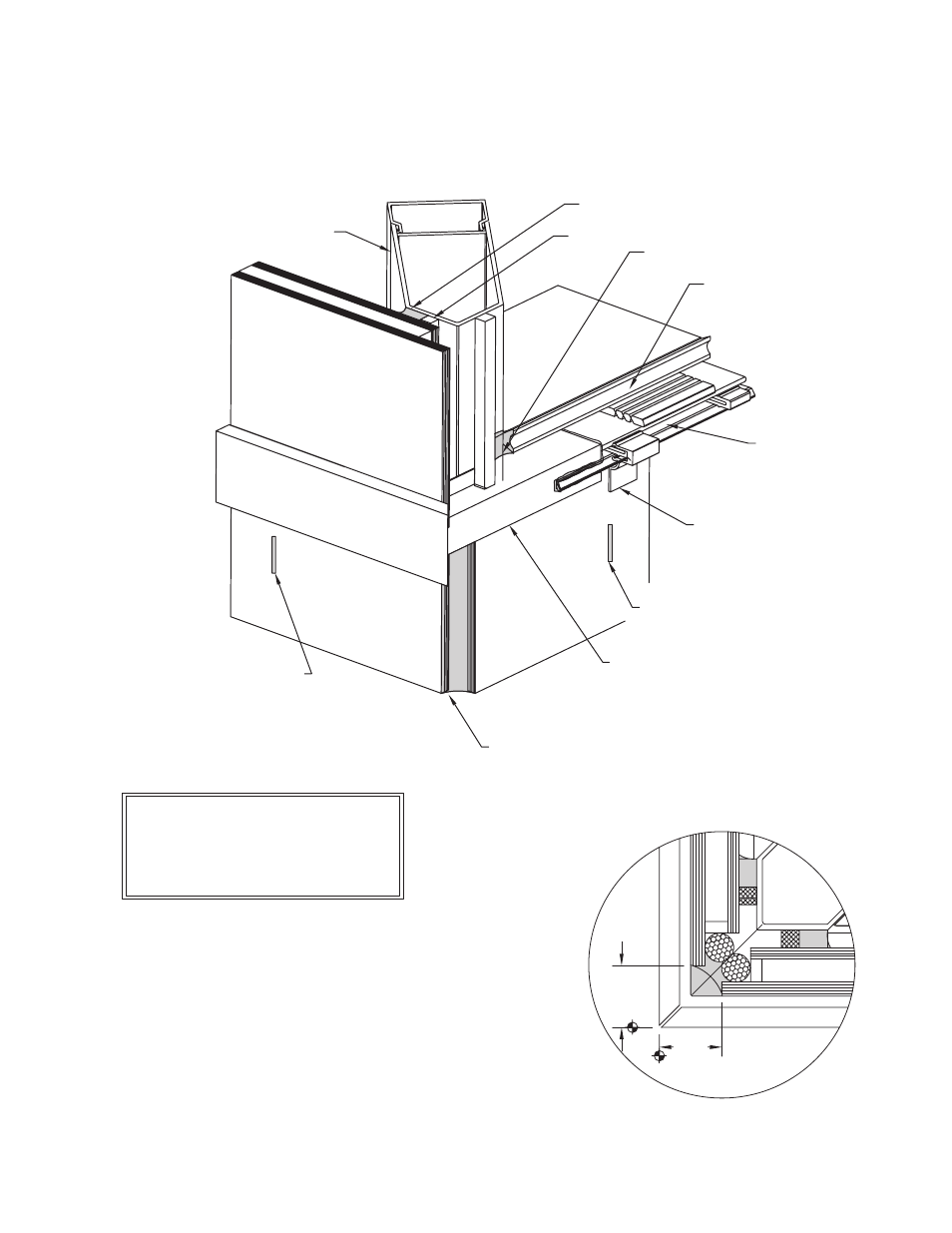

REF. SHEET 21 FOR

GLASS SIZING

INFORMATION AT

TYPICAL MULLION.

1 3/8"

INSTALLATION NOTE:

REFERENCE SHEETS 9 FOR

ADDITIONAL DIVERTER INSTALLATION

AND SHEET 10 & 11 FOR GLAZING WITH

INTEGRAL DIVERTERS.

MARK LOCATION OF EACH

GLAZING CLIP PRIOR TO

INSTALLING FACE CAPS.

HP-36 TEMPORARY

CLIPS. SLIDE ONTO

GLAZING CLIPS.

HP-17

SETTING

BLOCK

WHEN INSTALLING FACE

CAPS USE DEADBLOW

HAMMER AND STRIKE CAPS

AT LOCATIONS OF GLAZING

CLIPS ONLY.

INSTALL BACKER ROD INTO

CAVITY BEHIND GLASS AND

RUN WEATHER SEAL.

NHP-5A GASKETS.

CUT HORIZONTAL

GASKETS D.L.O.

+ 1/4" PER FOOT.

V2110 DSA TAPE

STRUCTURAL SILICONE

SEAL BETWEEN

GASKET AND TAPE

HP-10468

MULLION

HP175-FP-58 BRIDGE

MODIFY TO FIT CORNER

AND SEAL.

OUTSIDE 90° MULLION

DIVERTER & GLAZING DETAIL

H P - 1 7 5 / 2 2 5 I N S T A L L A T I O N M A N U A L





