HORIZONTALS CUT D.L.O.
HEAD & SILL TO BE CUT
D.L.O. - 1/16"
CUT SILL & HEAD
D.L.O. - 1/16"
CUT HORIZONTAL
D.L.O.
11/16"
MIN.
1"
SEAL FACE & TOP
OF SHEAR BLOCK
SEAL FACE & BOTTOM
OF SHEAR BLOCK
SEAL FACE, TOP &
BOTTOM OF SHEAR BLOCK
21/32"
DRILL .173 HOLE
(#17 BIT)
FS-202
(#8 X 1/2" PPH)
NOTCH LEG
CAP SEAL ALL
FASTENERS IN
GLAZING POCKET
HP175-FP-59 MULL CAP
AT HEAD & SILL
BED MULL CAP
IN SEALANT
FS-43
(#12 X 3/4" PPH)
HP175-FP-59 MULL CAP
MODIFY AS SHOWN
AT JAMB
1/2"

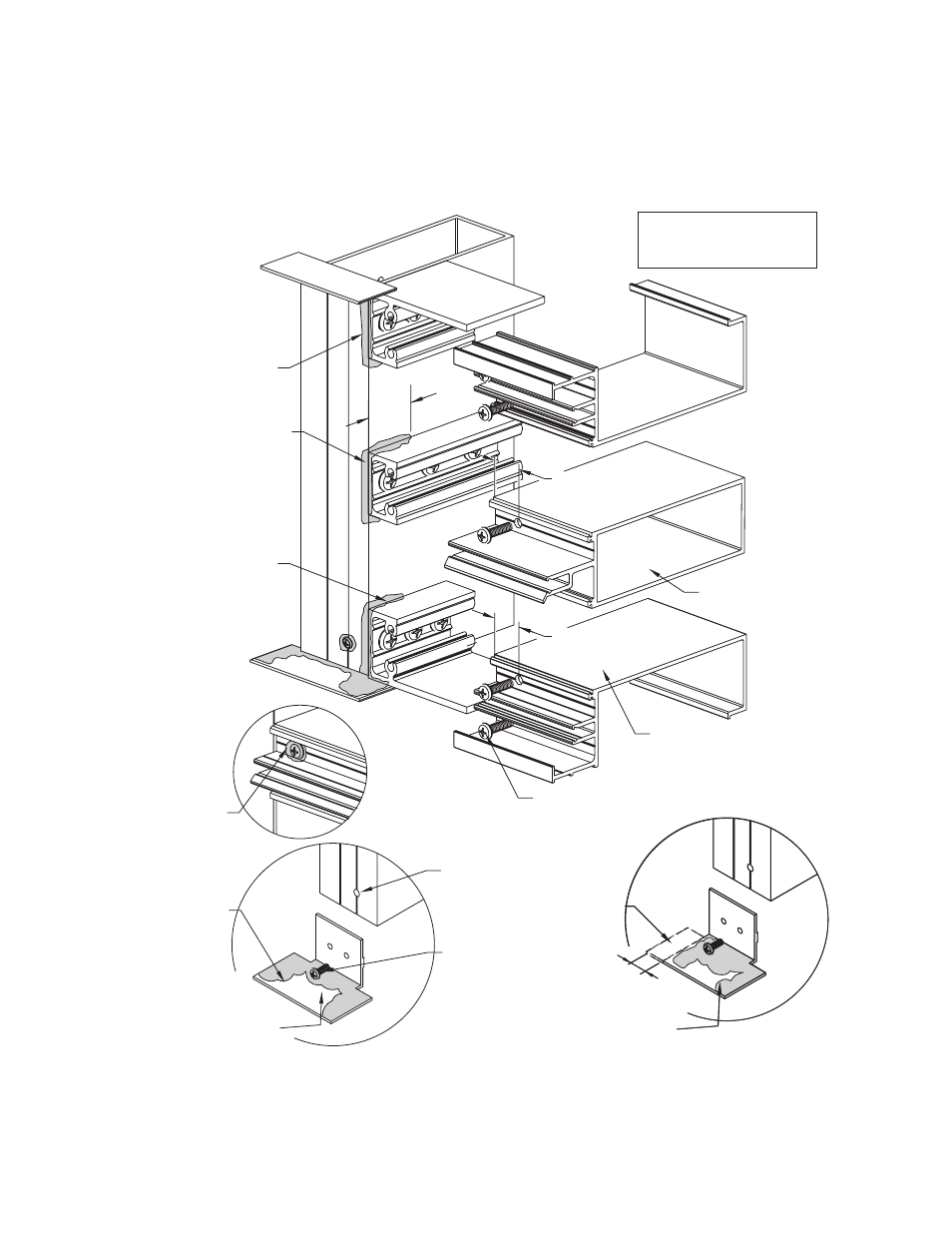

SEALANT PROCEDURES
FOR HEAD, SILL & HORIZONTAL
BUTT GLAZE MULLION WITH INTEGRAL DIVERTER
H P - 1 7 5 / 2 2 5 I N S T A L L A T I O N M A N U A L
19 


