H P - 1 7 5 / 2 2 5 I N S T A L L A T I O N M A N U A L
ANCHOR REQURED AT
BOTH SIDES OF MULLS
(SIZE DETERMINED BY
STRUCTUAL REQUIREMENTS)
INSTALL PIPESLEEVE AT HEAD
ANCHOR TO ALLOW FOR LIVELOAD
DEFLECTION
FASTENER TYPE & SIZE DETERMINED
BY STRUCTURAL REQUIREMENTS
WINDLOAD ANCHOR
SLOT SIZE DETERMINED
BY STRUCTURAL
REQUIREMENTS
DEADLOAD ANCHOR
HOLE SIZE DETERMINED
BY STRUCTURAL
REQUIREMENTS

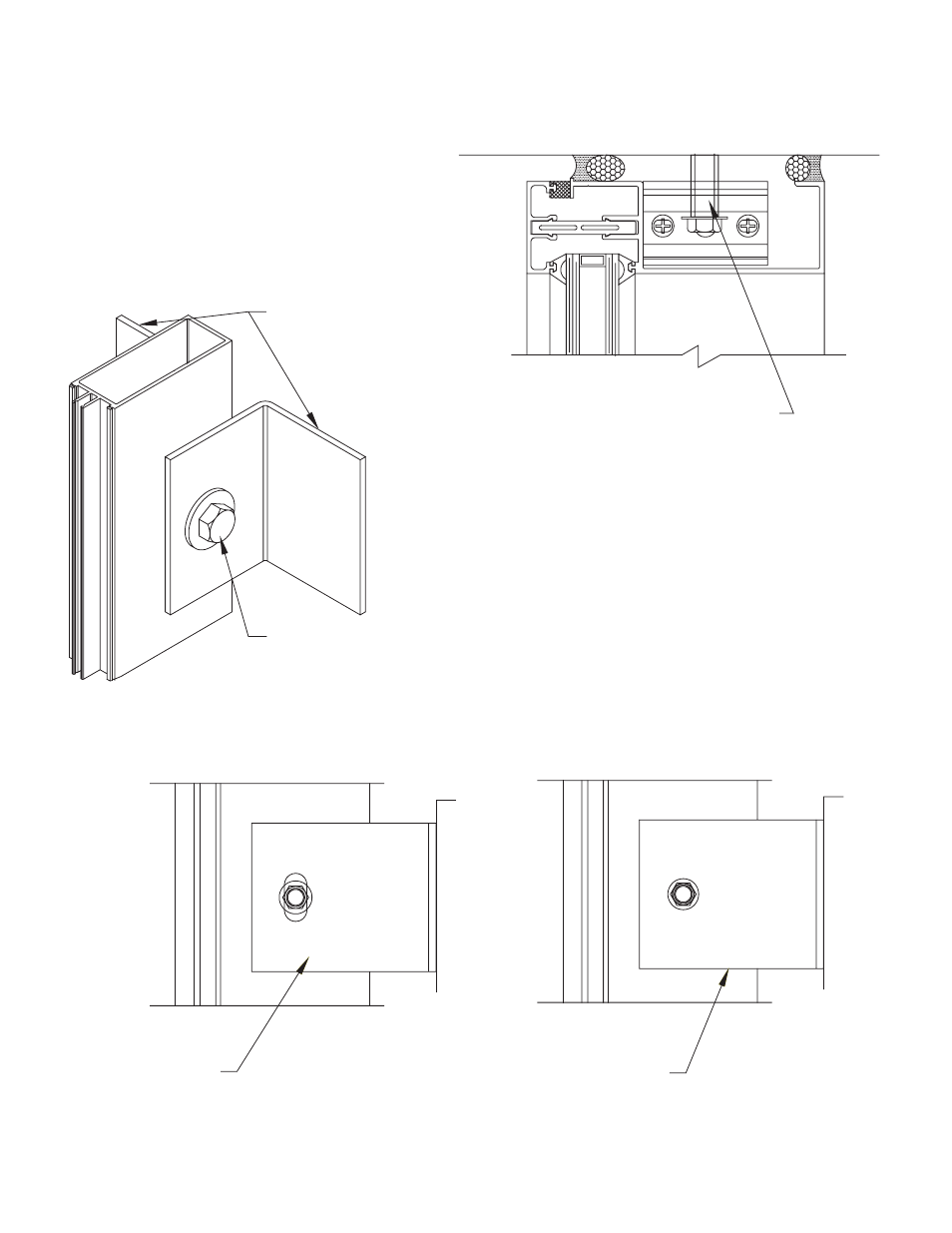

MULLION ANCHORAGE
H P - 1 7 5 / 2 2 5 I N S T A L L A T I O N M A N U A L
